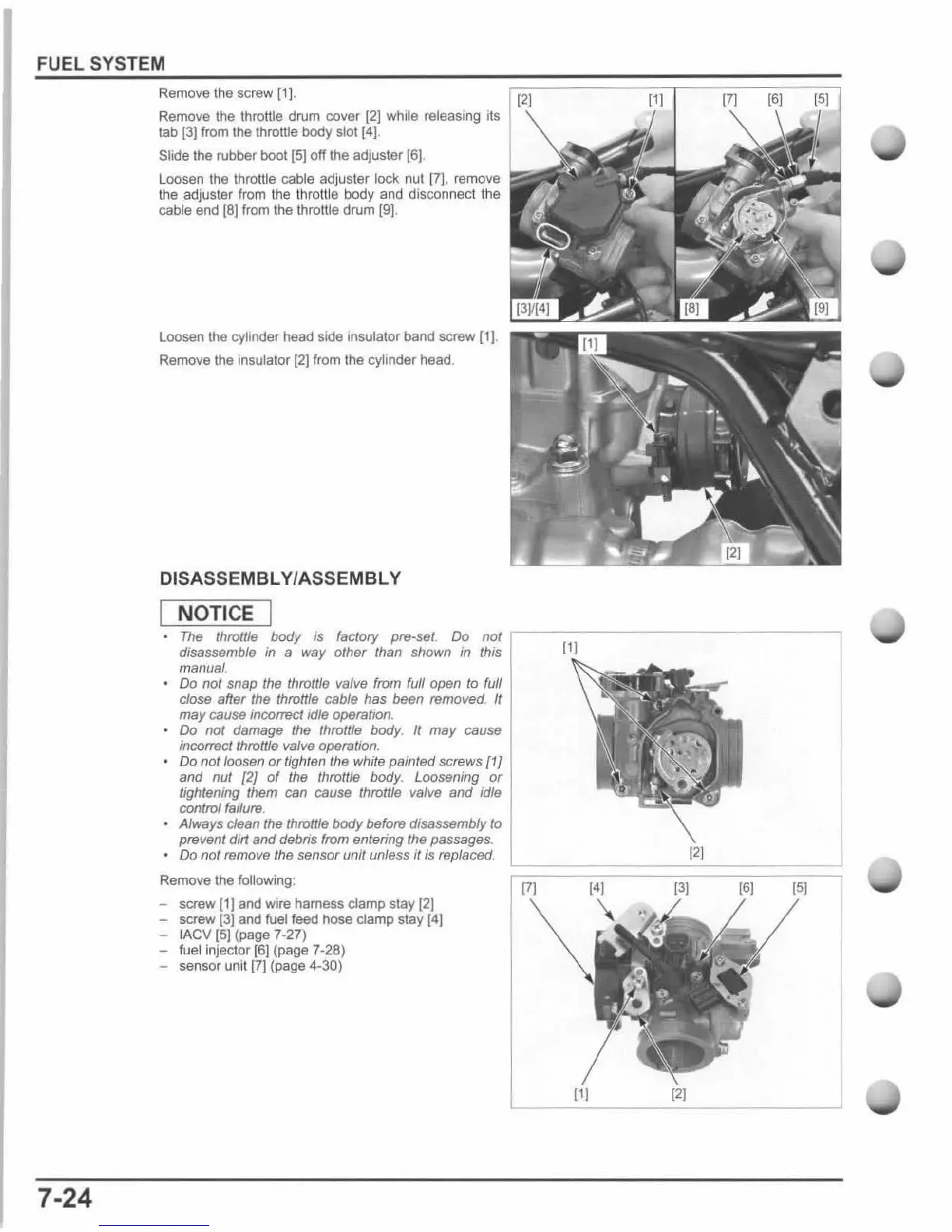

FUEL SYSTEM
Remove the screw [1].
Remove the
throttle drum cover [2] while releasing its
tab [3) from the
throttle
body
slot
[41
.
Slide the rubber boot
[51
off the adjuster
16]
loosen
the throttle cable adjuster lock nut
171.
remove
the adjuster from the
throtUe body and disconnect the
cable end [8] from the throttle drum
19)
.
loosen
the cylinder head side Insulator band screw (1].
Remove the insulator
12]
from the cylinder head.
DISASSEMBLY/ASSEMBL Y
I NOTICE I
The
throttle body is factory pre-set
Do
not
,----------
---------,
disassemble
in
a way other than shown
in
this
[1]
7-24
manual.
Do
not snap the throttle valve from full open to full
close after the throttle cable has been removed. It
may
cause incorrect Idle operation.
Do
not damage the throttle body. It may cause
incorrect throttle valve operation.
Do
nolloosen or
tighten
the
white
painted
screws
(1J
and nut
[2]
of
the
throttle body. Loosening
or
tightening them can cause thronle valve and idle
control failure.
Always Clean the throttle
body
before disassembly to
prevent dirt
and
debris from entering the passages.
Do
not
remove the
sensor
unit unless
if
Is
replaced.
Remove
the following:
- screw
(1]
and wire harness
damp
slay
(2]
- screw
(3)
and fuel feed hose
damp
stay
(4)
- IACV
[5J
(page
7·27)
- fuel injector
[61
(page 7-28)
-
sensor
unit
[7J
(page 4-30)
111
12)
