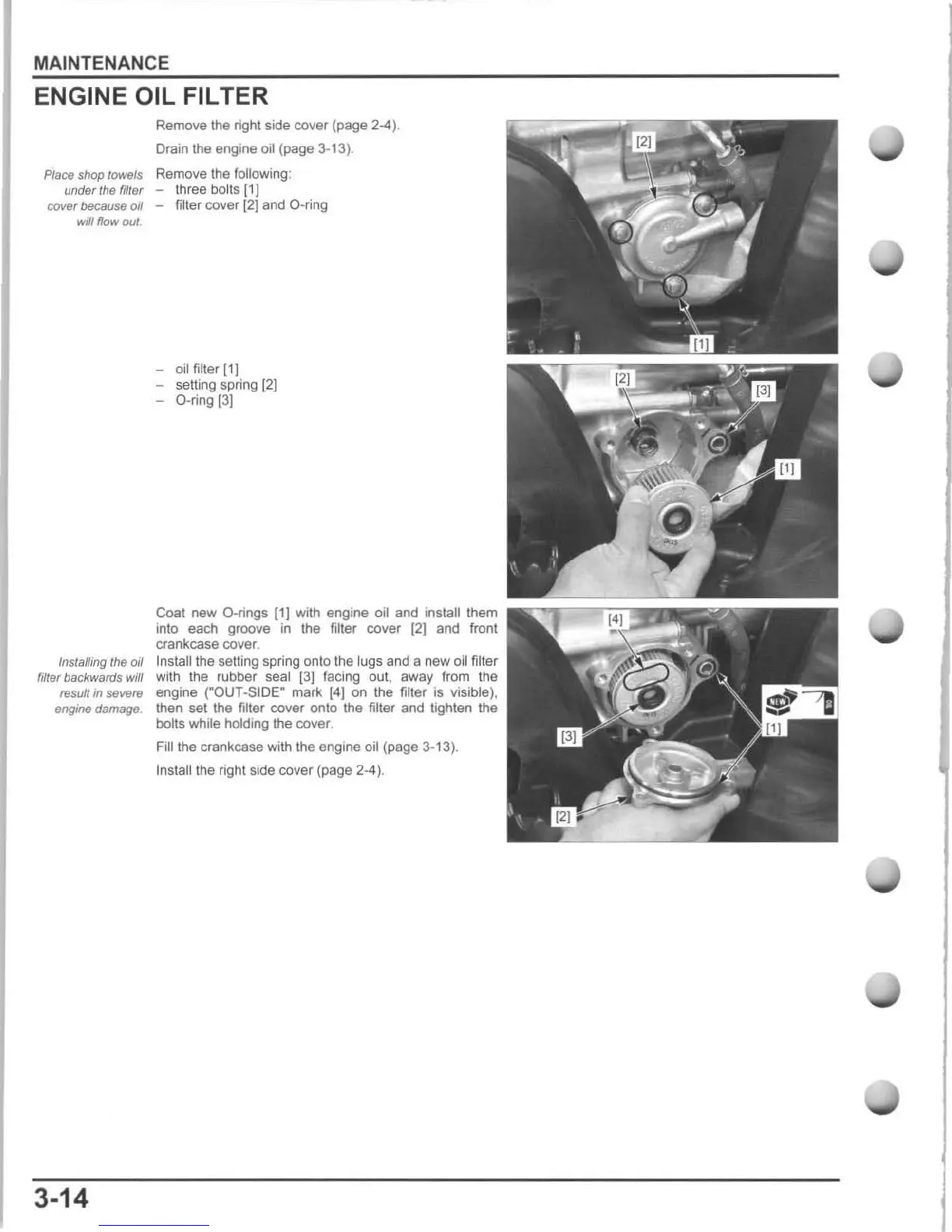

MAINTENANCE
ENGINE OIL FILTER
Remove the right side cover (page 2-4
J.
Drain the engine oil (page 3-13).
Pface
shop
towels Remove the following:
under the filter - three bolts [1]
cover
because
oil - filter cover [2] and O-ring
will flow
out
- oil filler [1j
- selting spring
(2)
- D-ring (3]
Coat new a-rings [1] with engine oil and install them
into
each
groove in
the
filter cover
[2J
and
front
crankcase
cover.
Installmg the
oil
Install the selling spring onto the lugs and a new oil filler
filter
backwards
will
with
the
rubber seal [3] facing
Qui,
away from the
resul/insevere engine ("OUT.SIDE- mark
[41
on
the filler is visible).
engine
damage
. then set the filter cover onto the filter and lighten the
bolls while holding the cover.
3-14
Fill the crankcase with the engine oil (page 3-13).
Install the right side cover (page 2-4).
