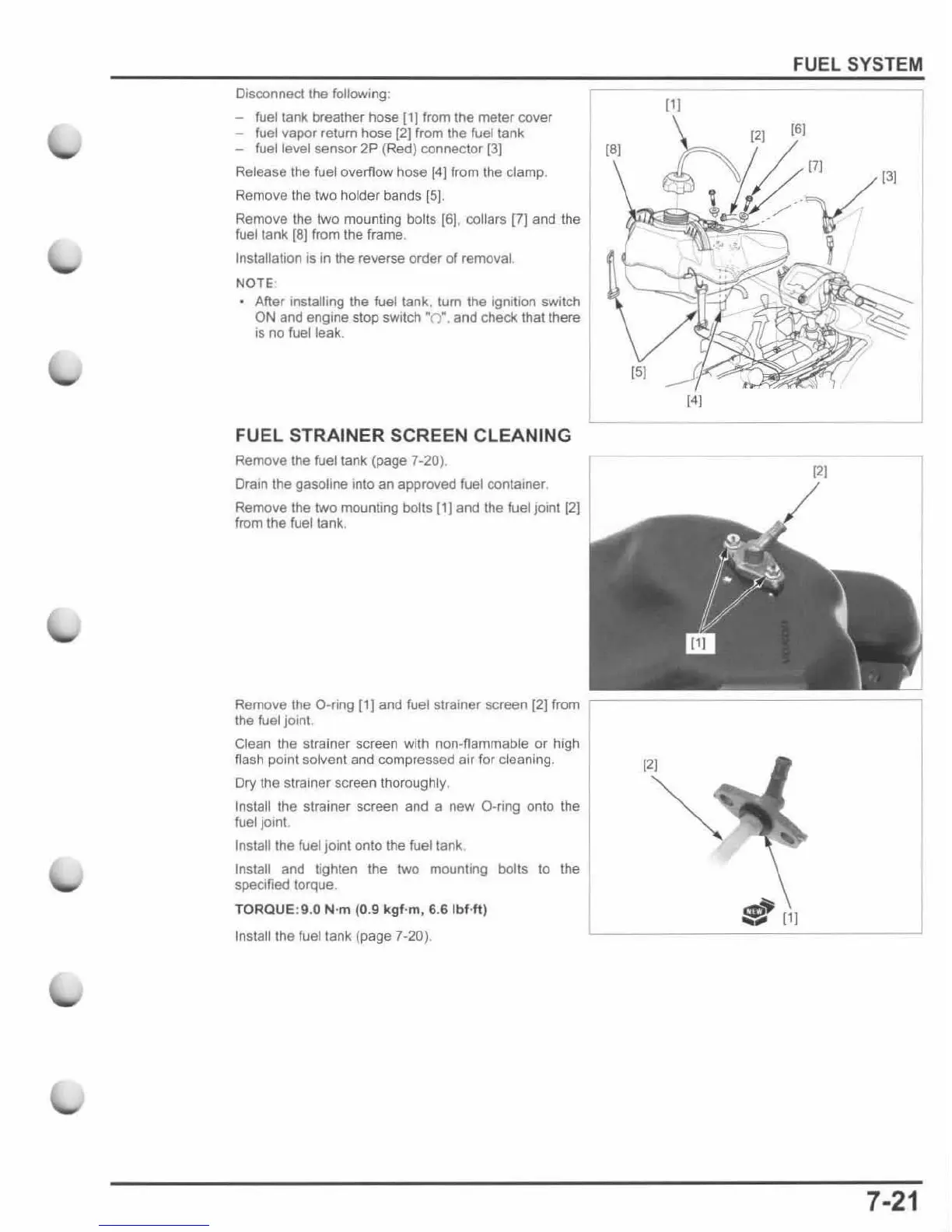

Disconnecllhe following:
- fuel tank
breather
hose
[1
J from
the
meter
cover
- fuel vapor return hose
12)
from
lhe
fuel tank
- fuel level
sensor
2P
(Red ) connector
[3J
Release the fuel overflow hose
(4)
from the clamp.
Remove
the
two holder
bands
[5J
.
Remove the two mounting bolts
{6].
collars
(7)
and the
fuel
lank
[8J
from the frame.
Installation
IS
in the reverse order
of
removal
NOTE
After
installing the fuel tank. turn the
IgrutJon
switch
ON and engine stop
SWitch
wO',
and check that there
is
no
fuel
leak
.
FUEL STRAINER SCREEN CLEANING
Remove the fuel tank (page 7·20).
Drain the gasoline
InlO
an approved fuel container,
Remove the two mountmg bolts
(1)
and the fuel joinl12]
from the fuel tank
FUEL SYSTEM
(11
(6(
(71
131
141
(21
Remove
the
O-ring
[1)
and fuel strainer screen [2] from
,-------------------,
the fuel joint
Clean the strainer screen with non-flammable or high
flash point solvent and compressed air for cleaning.
Dry
the
strainer screen thoroughly.
Install the strainer screen and a new D-ring onto the
fuel joint
Install the fuel joinl
on
to the fuel tank
Install and lighten the two mounting bolts
to
the
specified torque.
TORQUE:
9.
0 N'm (0.9
kgf
'm, 6.6
IbHt
)
~."
"'..
(11
Install the fuel lank (page 7-20).
7·21
