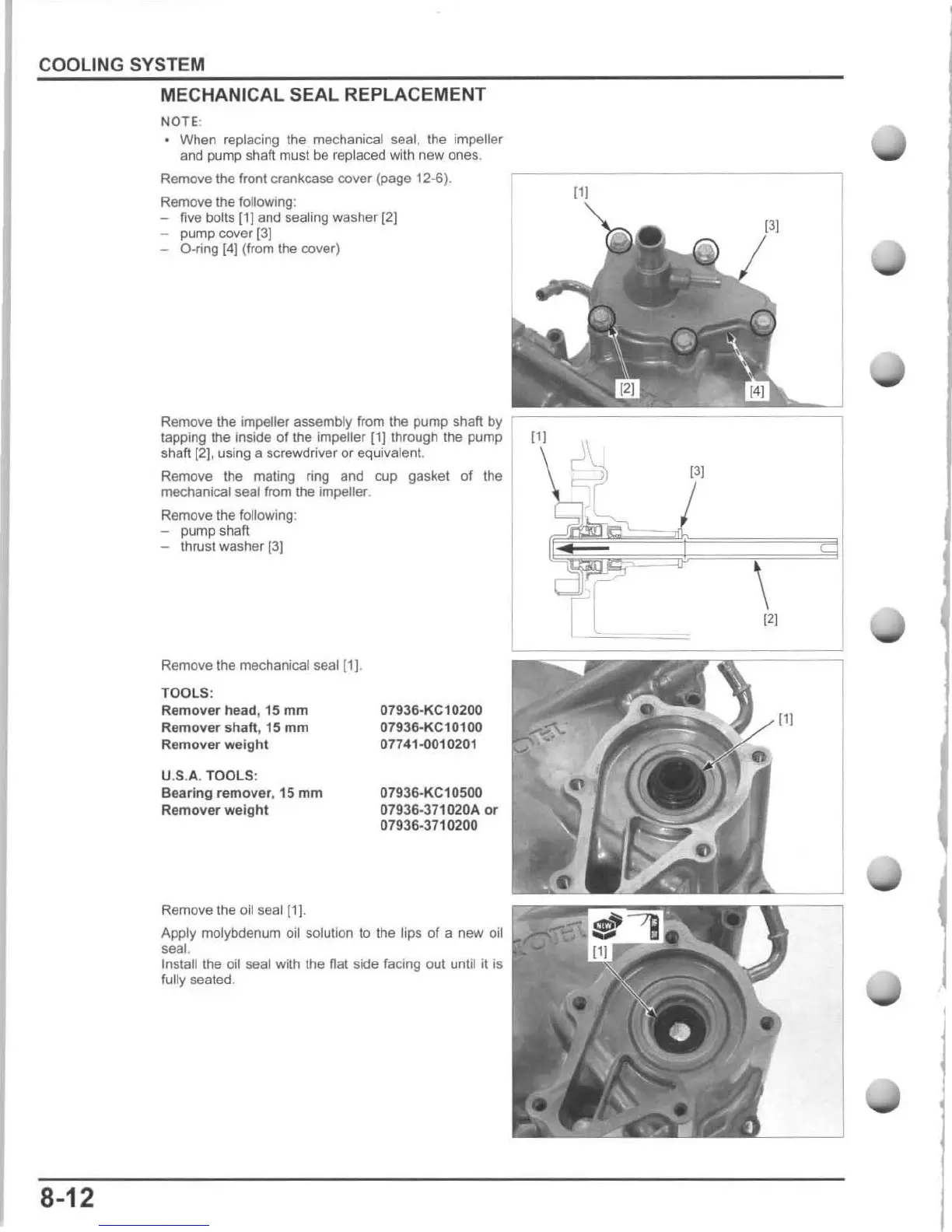

COOLING SYSTEM
MECHANICAL
SEAL REPLACEMENT
NOTE-
• When replacing the mechanical seal, the impeller
and
pump
shaft must be replaced with
new
ones.
Remove the front crankcase cover (page 12-6).
Remove the
following:
- five bolls
[1J
and sealing washer [2]
-
pump
cover
13J
- O·ring [4) (from the cover)
Remove the impeller assembly from the pump shaft by
~"""IIIIIIIIIIIIIIIIIIIIIIIIIIIIII~IIIIII"''':
:::::'
''''~
~==
:;
8-12
tapping the inside of the impeller
(1]
through the pump
shaft
[21.
using a screwdriver or equivalen
t.
Remove the mating
ring
and
cup gasket of the
mechanical seal from the impeller.
Remove the following:
-
pump
shaft
- thrust washer [3)
Remove
the
mechanical
seal
(11
.
TOOLS:
Remover head, 15
mm
Remover shaft, 15
mm
Remover
weight
U.S.A. TOOLS:
Bearing remover, 15
mm
Remover
weight
Remove the oil seal
{1J
.
07936·KC10200
07936·KC10100
07741-0010201
07936·KC10S00
07936..J71020A
or
07936·3710200
Apply molybdenum oil solution
to
the lips
of
a new oil
seal.
Install
the oil seal with the flat side facing oul until il is
fully sealed.
1')
13)
\
121
j
