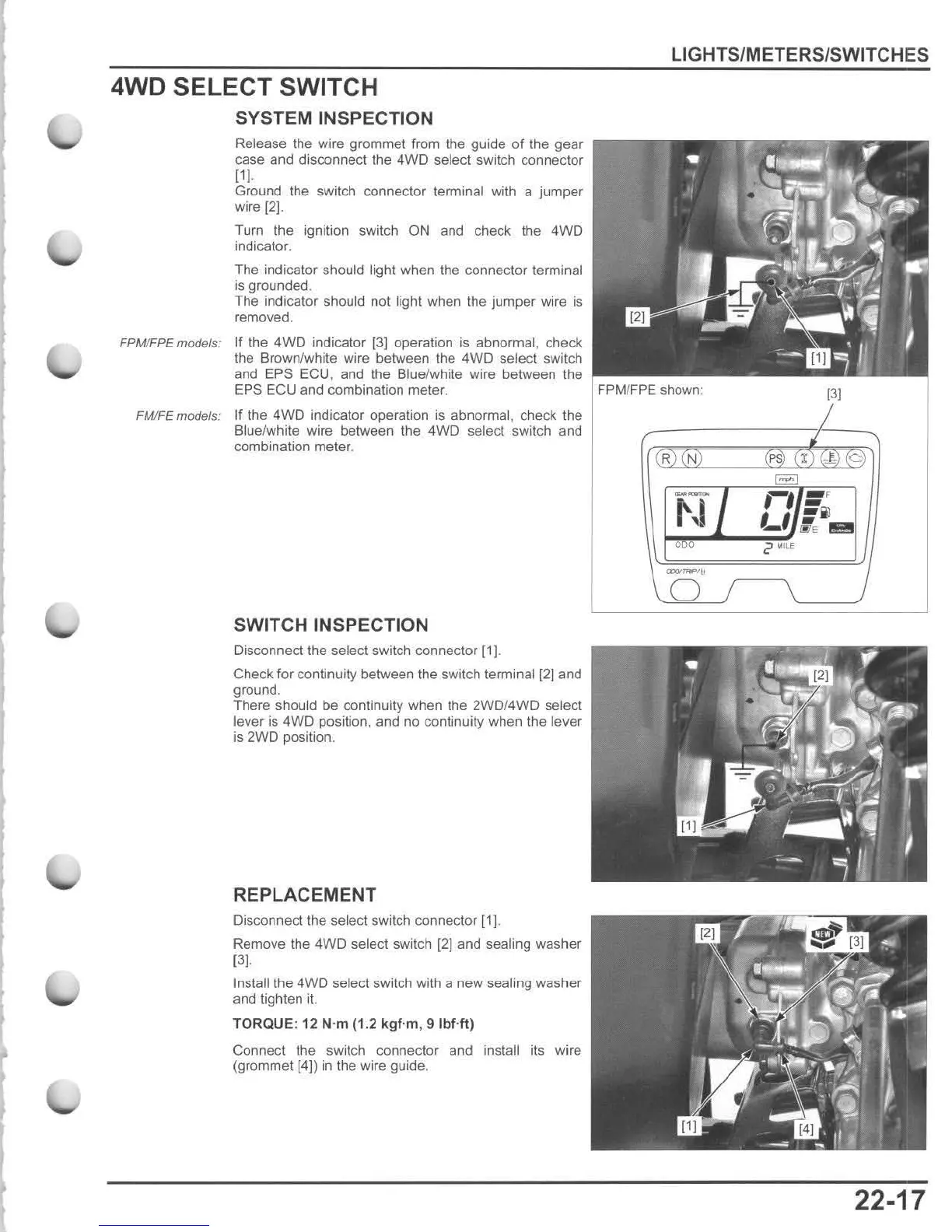

4WD SELECT SWITCH
SYSTEM INSPECTION
Release the wire grommet from the guide
of
the
gear
case and
disconnecllhe
4WD select switch connector
11]
.
Ground the switch connector terminal with a jumper
wire (2].
Turn the ignition switch
ON
and check the 4WD
indicator.
The indicator should
light when the connector terminal
is
grounded.
The indicator should not light when the jumper wire
is
removed.
FPMlFPE models: If the 4WD indicator
13J
operation
is
abnormal, check
the 8rawnfwhite wire between the
4WD
select switch
and
EPS ECU, and the Bluelwhite wire between the
LIGHTS/METERS/SWITCHES
EPS ECU and combination meter. FPMfFPE shown:
13]
FMlFE models: If the
4WD
indicator operation is abnormal, check the
Blue/white wire between the 4WD select switch and
combination meier.
SWITCH INSPECTION
Disconnect the select switch connector [1].
Check for continuity between the switch
terminal
[21
and
ground.
There
should be continuity when the 2WD/4WD select
lever
is 4WD position, and no continuity when the lever
is 2WD position.
REPLACEMENT
Disconnect the select switch connector
[1]
.
Remove the
4WD
select switch [2) and sealing washer
131·
Install the 4WO select switch with a
new
seating washer
and tighten it.
TORQUE
: 12 N·m (1.2
kgfm
,
9lbHt)
Connect the switch connector and install its wire
(grommet [4]) in the wire guide.
R N
22-17
