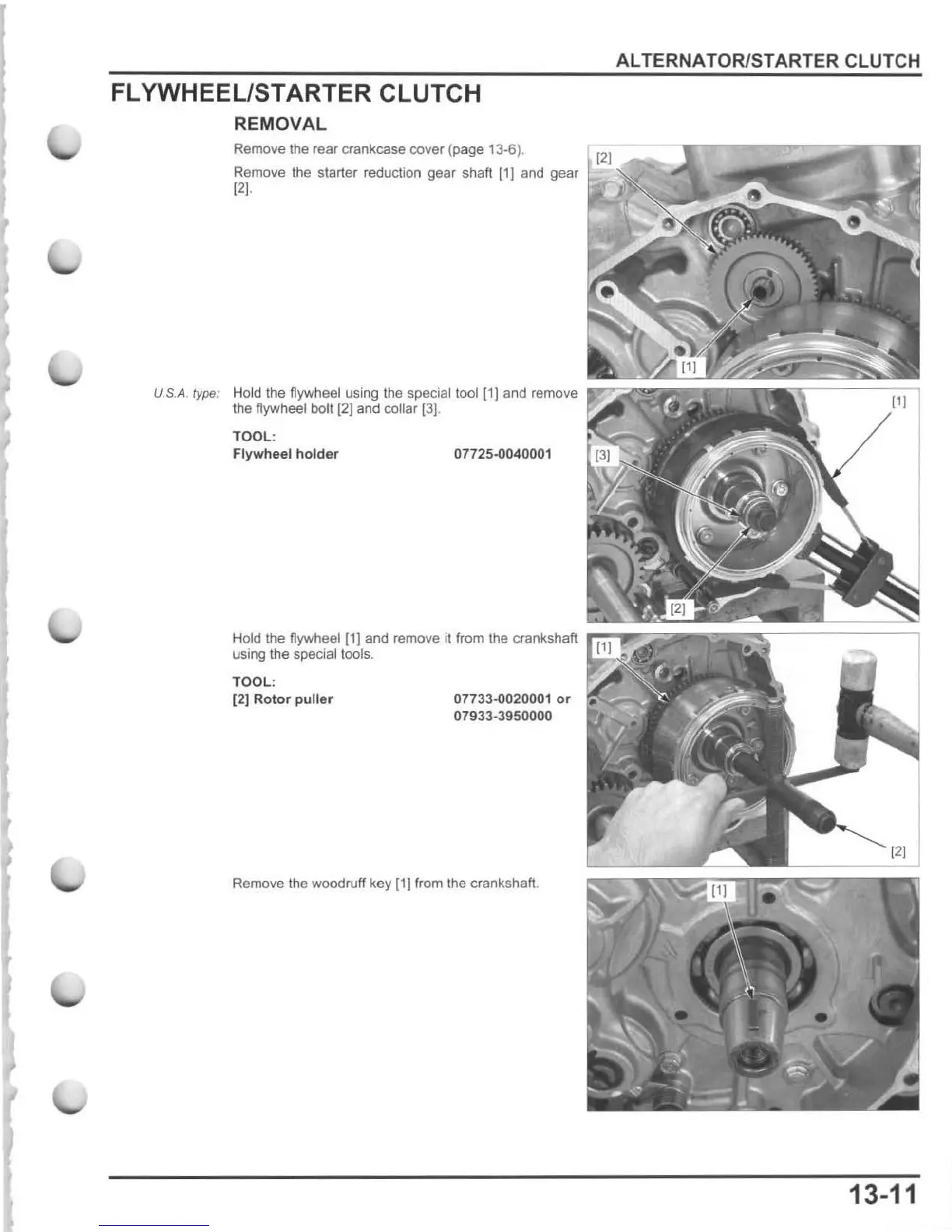

FL YWHEELISTARTER CLUTCH
REMOVAL
Remove the rear crankcase cover (page 13-6),
Remove the starter reduction gear shaft
[1]
and gear
{2{
.
U.S.A.
type
: Hold the flywheel using the special
1001111
and remove
the
flywheel bolt
121
and
collar
(3J
.
TOOL:
Fl
ywheel
h
older
07725-0040001
ALTERNATOR/STARTER CLUTCH
Hold the
f1~heel
[1
J and remove
it
from the crankshaft
1":'::""11"""'::;;;;;0
using the speciallools.
TOOL:
(2)
Rotor
puller
07733-0020001
or
07933·3950000
Remove the woodruff key [1] from the crankshaft.
13-11
