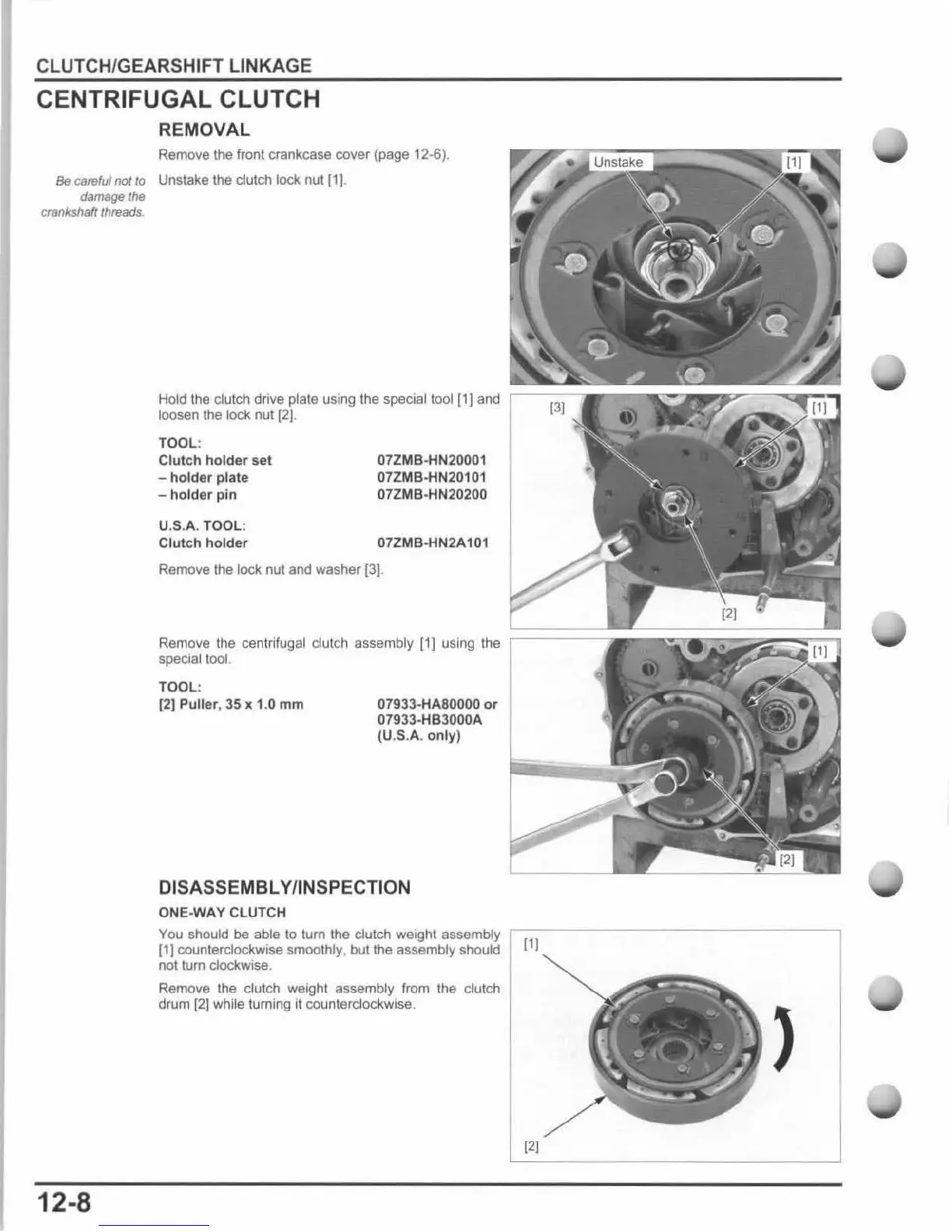

CLUTCH/GEARSHIFT LINKAGE
CENTRIFUGAL CLUTCH
REMOVAL
Remove the front crankcase cover (page 12-6).
Be careful not 10 Unslake the clutch lock nut (11 .
damage lhe
c ra n kshan threads
Hold the clutch drive plale using the special 1001 [I J and
loosen the lock nul 12] .
TOOL:
Clutch holder set
- holder plate
- holder pin
U.S.A. TOOL:
Clutch holder
07ZMB -HN20001
07ZMB-HN20101
07ZMB · HN20200
07ZMB - HN2A 101
Remove the lock nut and washer PI .
Remove the centrifugal clutch assembly 111 using the ~=====
special tool.
TOOL:
[2] Puller , 35)( 1.0 mm
07933- HASOOOO or
07933-HB3000A
(U .S.A . only )
DISASSEMBLY/INSPECTION
ONE· WAY CLUTCH
You should be able 10 turn the clutch weight assembly .- 1- '1 ---------------'
[I) counterclockwise smoothly, but the assembly should
12-8
nollurn clockwise.
Remove the clutch weight assembly from the clutch
drum (2] while turning it counterclockwise.
)
121
