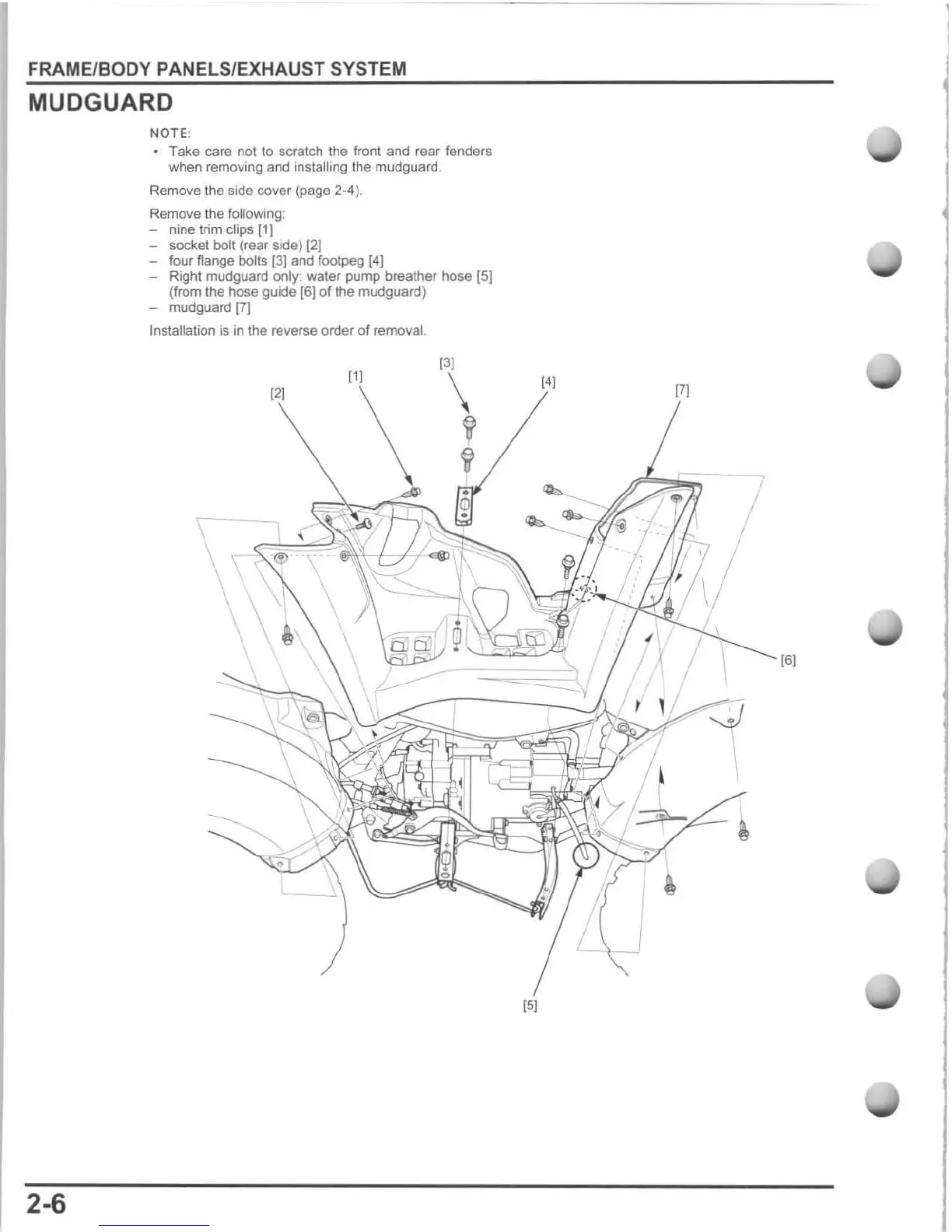

FRAME/BODY PANELS/EXHAUST SYSTEM
MUDGUARD
2-6
NOTE:
• Take care not
to
scratch the front and feaf fenders
when removing and installing the mudguard.
Remove the side cover (page 2-4).
Remove the following :
- nine trim clips
[11
- socket bolt (rear side)
[2J
- four flange bolts (3] and footpeg [4)
- Right mudguard
only: water pump breather hose [5)
(from the hose guide
16]
of
the
mudguard)
- mudguard
(7)
installation is
in
the reverse order
of
removal.
[1
['[
~
I
(
[6[
[5[
