LIGHTS/METERS/SWITCHES

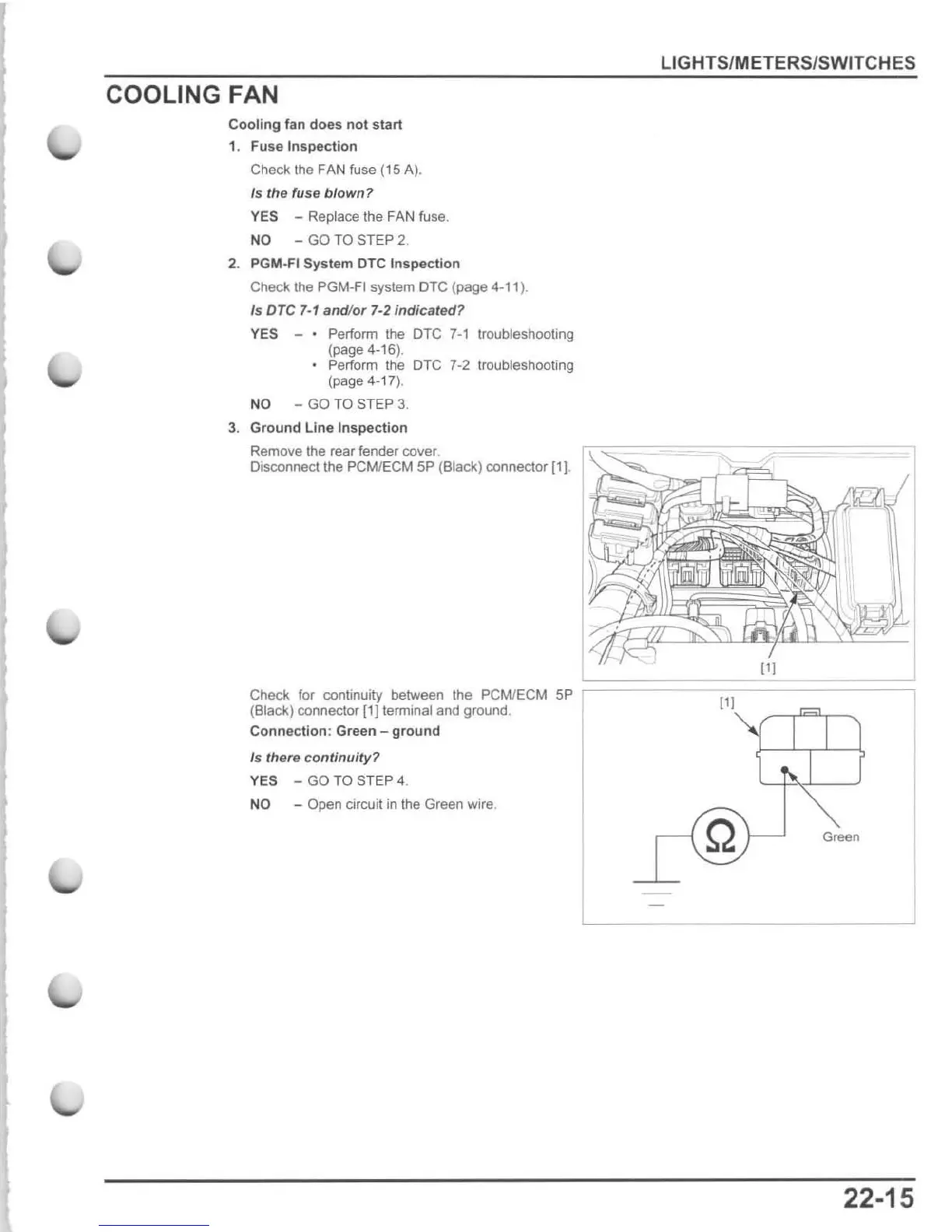

COOLING FAN
Coo l ing fan does not start
1. Fuse Inspection
Check the FAN fuse (15 A).
Is the (u se blown?
YES - Replace the FAN fuse.
NO - GO TO STEP 2.
2. PGM·FI System OTC I nspection
Check the PGM-FI system OTe (page 4-11).
Is OTe 7·1 and/or 7·2 indicated?
YES - Perform the DTG 7-1 troubleshooting
(page 4-16).
Perform the DTG 7·2 tr oubleshooting
(page 4-17),
NO - GO TO STEP 3.
3. Ground Line I nspection
Remove the rear fender cover.
Disconnect the PCM /E CM 5P (Black) connector [1}.
Check for continuity between the PCM/ECM SP ~====
(Black) connector 11J terminal and ground.
Connection : Green - ground
Is there co ntinuity?
YES - GO TO STEP 4.
NO - Open circuit in the Green wire .
L-=-
111
Green
22·15
