FUEL SYSTEM
7-8

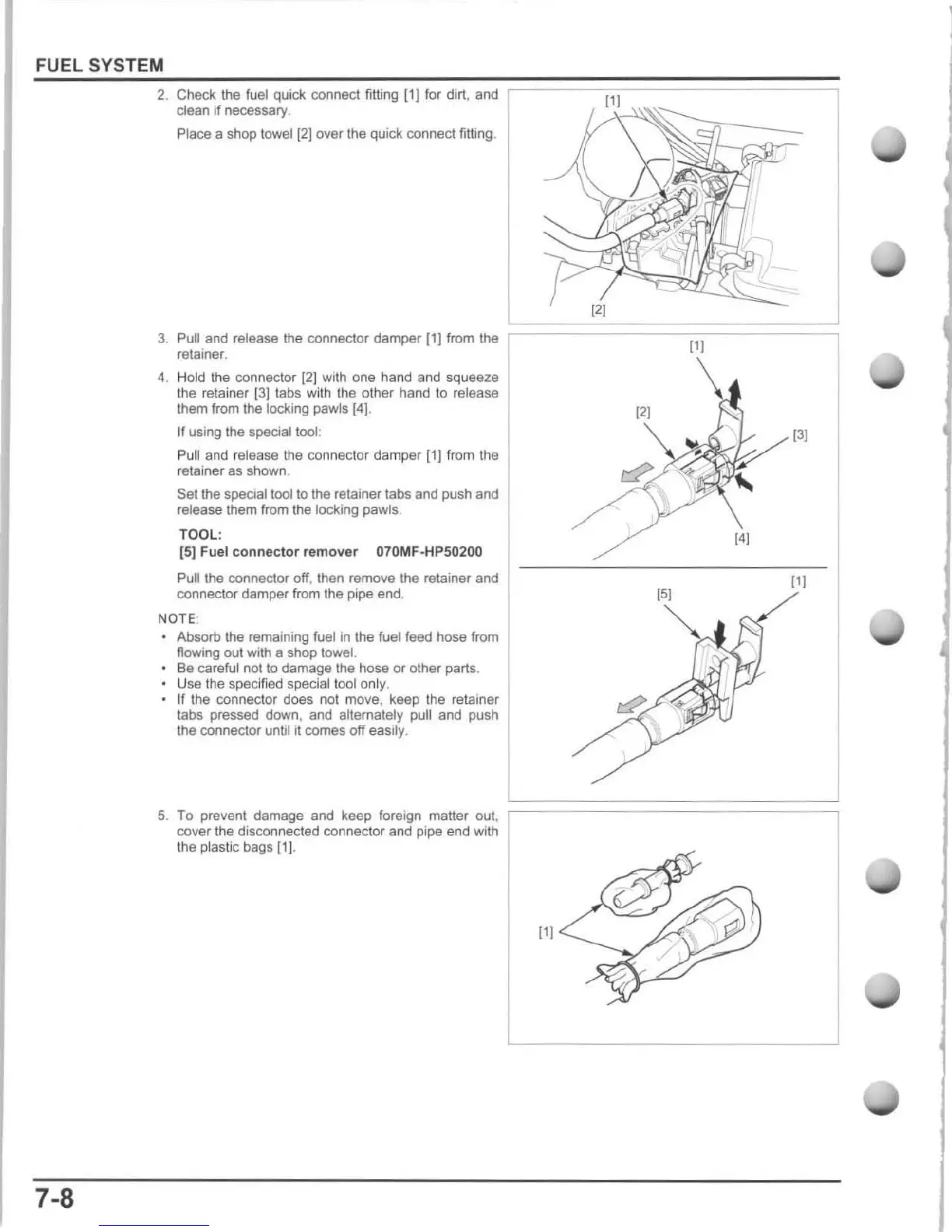

2. Check the fuel quick connect fitting
(1)
for dirt, and
clean
if necessary.
Place a shop towel [2] over the quick connect fitting .
3.
Pull
and
release
the
connector damper
[1)
from
the
~==========
(1
=
I
=======~
retainer.
4. Hold the connector
[2]
with one hand and squeeze
the retainer
[3J
tabs with the other hand to release
Ihem from the locking pawls [4] .
If using the special tool:
Pull
and release the connector damper
II
I from the
retainer as shown.
Set the special
1001
to
the
retainer tabs and
push
and
release them from the locking pawls.
~W
~
(
5J
Fuel conne
ctor
remove r 070MF·HP50200
Pull the connector off, then remove the relainer and
connector damper from the pipe end.
NOTE
:
Absorb the remaining fuel in the fuel feed hose from
Howing out with a shop towel.
Be careful not to damage the hose
or
other parts.
Use the specified special tool
only
.
If the connector does not move, keep the retainer
tabs pressed down, and
alternately pull and push
the connector until it comes
off
easily.
5. To prevent damage and keep foreign matter
oul.
cover the disconnected connector and pipe end with
the plastic bags
[1].
