FUEL SYSTEM
Be ca reful not 10
damage the fum
pump filler and fuel
pump holder .
7-18

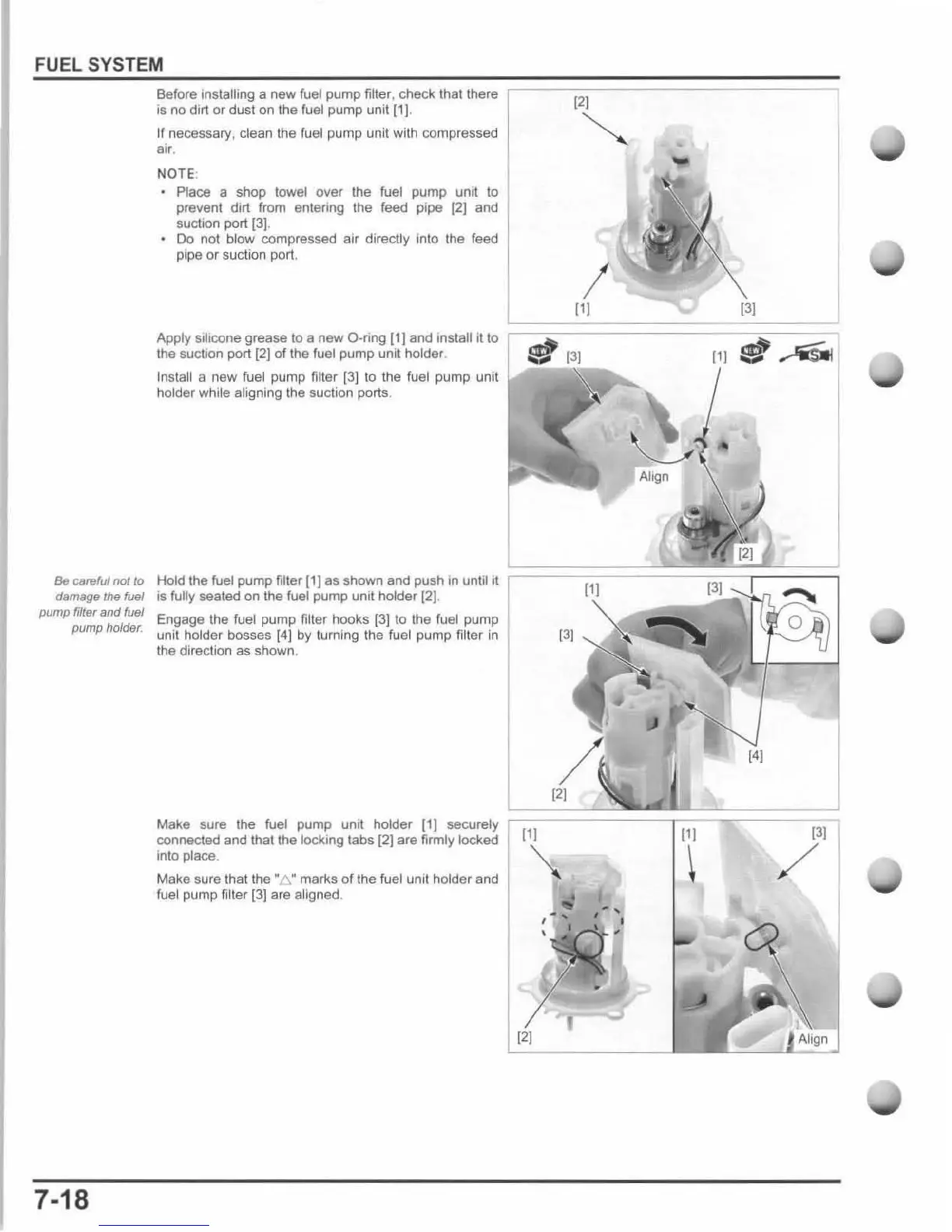

Before installing a new fuel pump filter, check that there
is no
dirt or dust on the fuel pump unit [1].
If necessary, clean the fuel pump unit with compressed
air.
NOTE
Place a shop towel over the fuel pump unit 10
prevent dirt from entering the feed Pipe 121 and
suction port 131 .
Do nol blow compressed air directly Inlo the feed
pipe or suction port.
12J
~
I
11J
Apply SIlicone grease to a new O·ring [11 and install it to ~= ¢! =: It =========== ¢! = It ~ ====
the suction port [2] of the fuel pump unit holder. IIIIi'i' [3] [1] fIIIiiII' ......'iSitI
Install a new fuel pump fiUer [3J to the fuel pump unit
holder while aligning the suction ports.
Hold the fuel
pump filter j1 J as shown and push in until it ~========"'==~= :;:~===;
is fully sealed on the fuel pump unit holder [2J .
Engage the fuel pump filter hooks [3] to the fuel pump
unit
holder bosses [4] by turning the fuel pump filter in
the direction as shown.
14J
121
Make sure the fuel pump unit holder [1] securely ~====:::, ,,,, .... ~~ :::::::::=====---'
connected and that the locking tabs (2] are firmly locked III [11 (31
Into place. "" \ /
Make sure thatlhe " I'::. " marks of the fuel unit holder and
fuel pump filter [3] are aligned.
,- ,
-,
