CYLINDER
HEADNALVE
Do not tum the
line

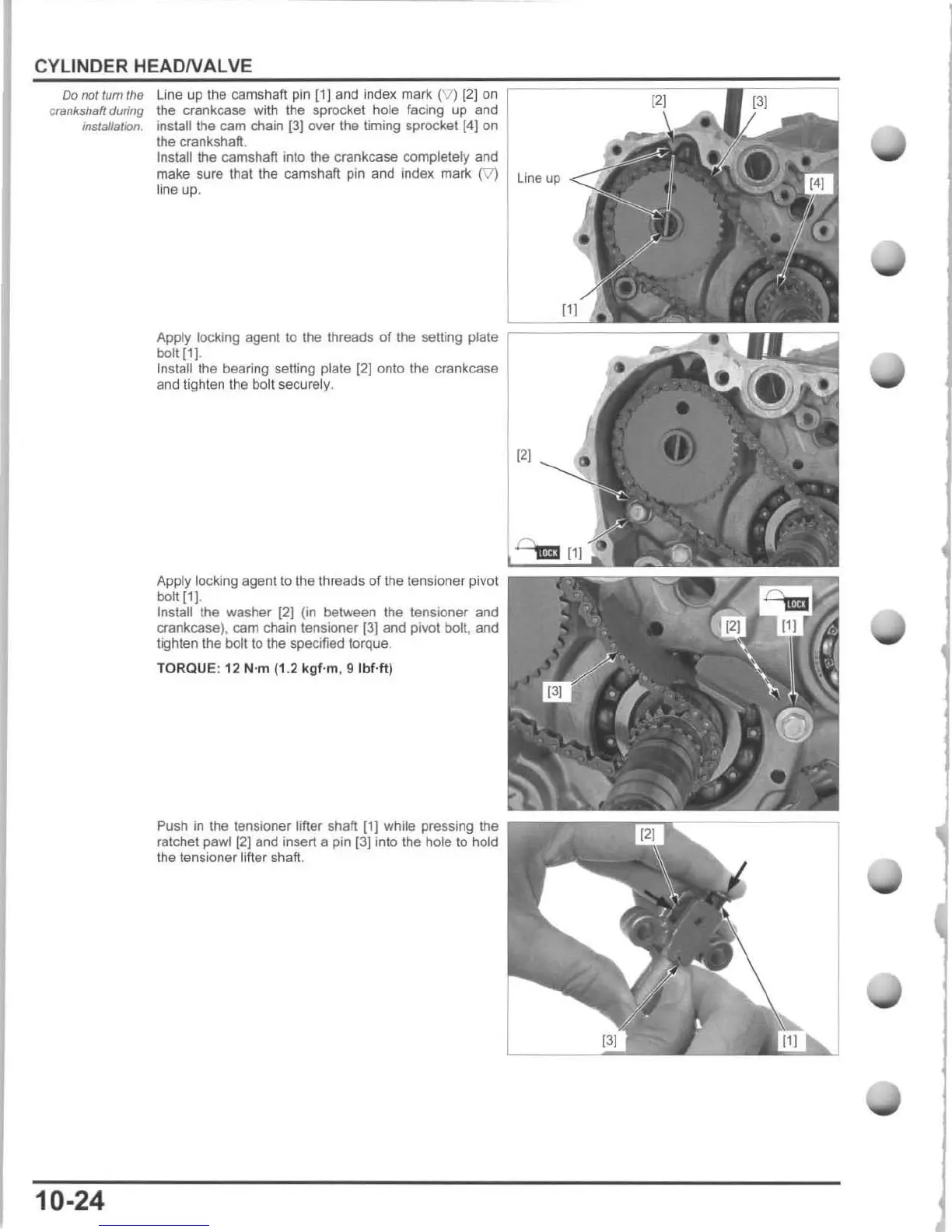

up the camshaft pin [1) and index mark (V ) [2] on
cmnkshaft during the crankcase with the sprocket hole facing
up
and
installation.
instatlthe
cam chain [3] over the timing sprocket (4]
on
the crankshaft.
10-24
Install the camshaft into the crankcase completely and
make sure that the camshaft pin and index
mark (\7)
line
up.
Apply
locking agent to the threads
of
the setting plate
~===="
~IIIIIIIIIIIIIIIIIIIIIIII~~~
~
bolt (1].
Install the bearing selling plate
[2J
onto the crankcase
and tighten the bolt securely.
Apply locking agent to the threads
of
the tensioner pivot
bolt
]1].
Install the washer
12J
(in between the tensioner and
crankcase), cam
chain tensioner
(3J
and pivot bolt, and
tighten the bolt to the specified torque.
TORQUE: 12
N'm (1.2
kgf
'm ,
9lbHt)
Push
in
the tensioner lifter shaft (1] while pressing the
ralchet pawl (
21
and insert a pin
(31
into the hole to hold
the tensioner
lifter shaft.
