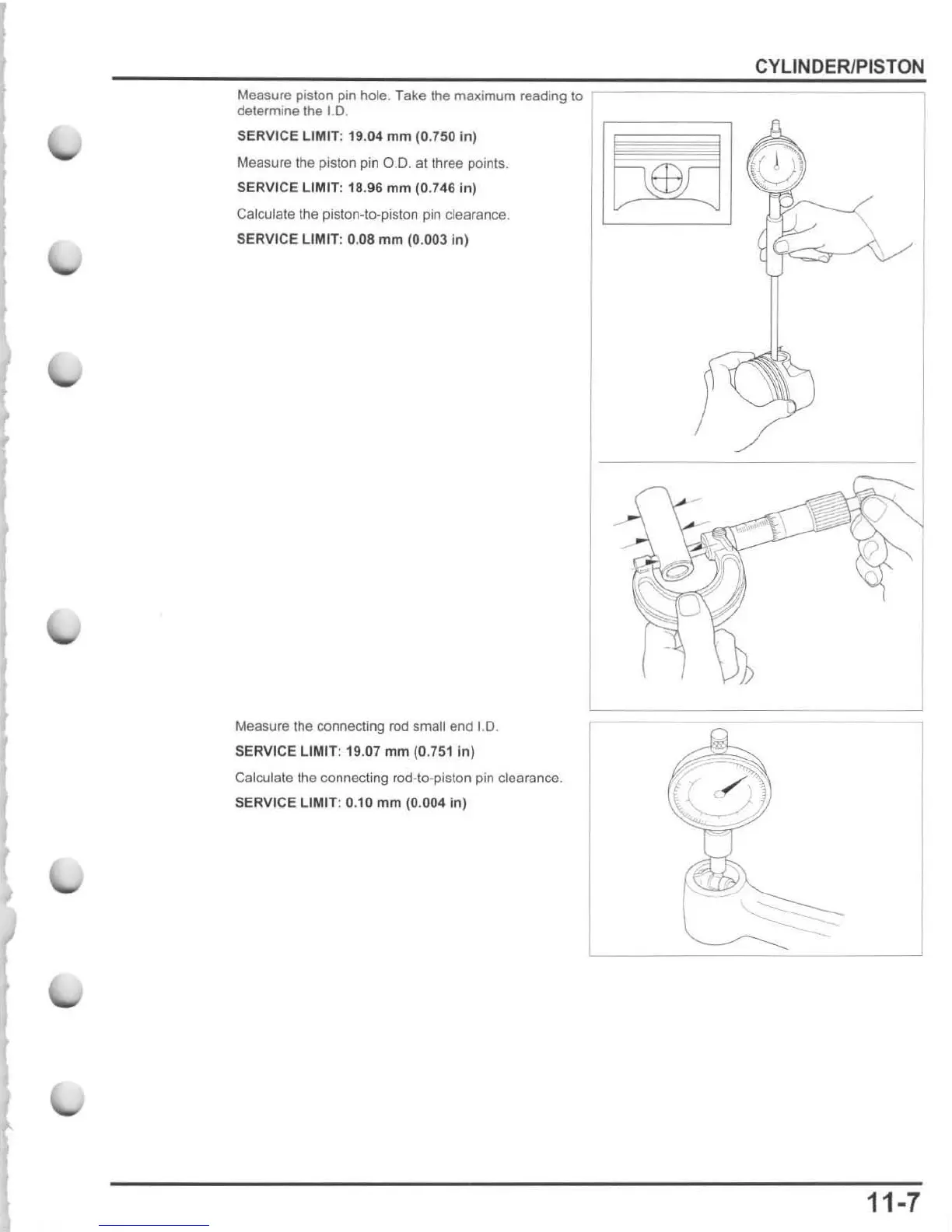

Measure piston pin hole. Take
the
maximum reading
10
f
determine the
J.D
.
SERVICE LIMIT:
19
.04
mm
(0.7
50
in )
Measure
the
piston pin 0 .
0.
at
three points.
SERVICE LIMIT:
18
.
96
mm
(0.746 In)
Calculate
the
piston-to-piston pin clearance .
SERVICE LIMIT: 0.
08
mm
(0
.
00
3 in)
Measure the connecting rod
small end 1.0.
SERVICE LIMIT :
19
.07
mm
(0
.
751
in)
Calculate the connecting rod-to-piston pin clearance.
SERVICE LIMIT : 0.10
mm
(0.004 In)
CYLINDERIPISTON
11-7
