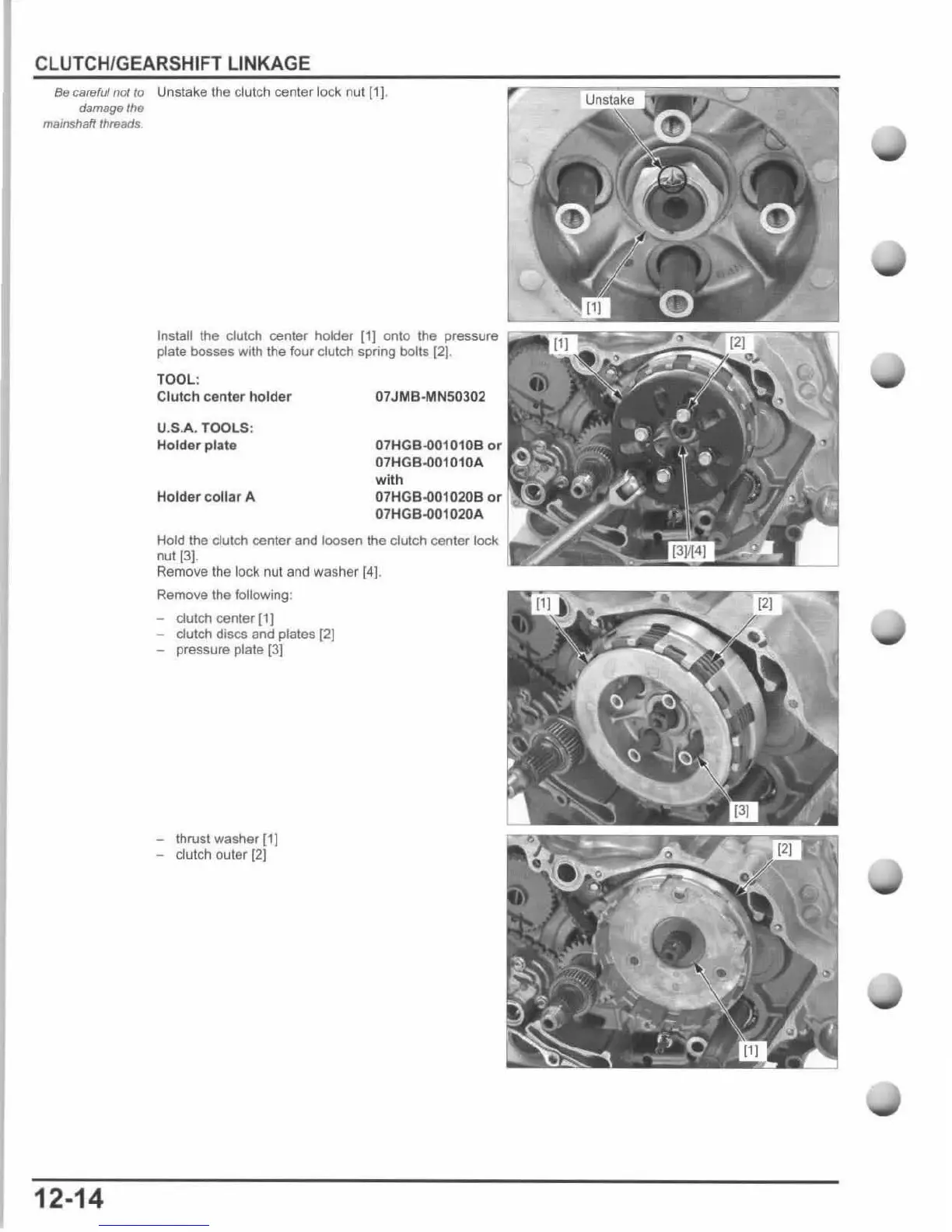

CLUTCH/GEARSHIFT LINKAGE
Be careful nollo Unstake the clu tch cen ter lock nu l [1).
damage/he
mainshaft threads
12-14
Install the clutch center holder 111 onlo the pressure ~ ;::; ;:;;: ;~
plale bosses with the four clutch spring bolts (2 ).
TOOL:
Clutch center holder
U.S.A . TOOLS :
Holder plate
Holder collar A
07JMB·MN50302
07HGB-001010B or
07HGB·001010A
with
07HGB-001020B or
07HGB-001020A
Hold the clutch center and loosen the dutch center lock
nut ( 3].
Remove the lock nu l and washer [4].
Remove the following:
- clutch cent er [1)
- clutch discs and plates [21
- pressure plale (3J
- thrust washer [1]
- clutch outer
(2)
