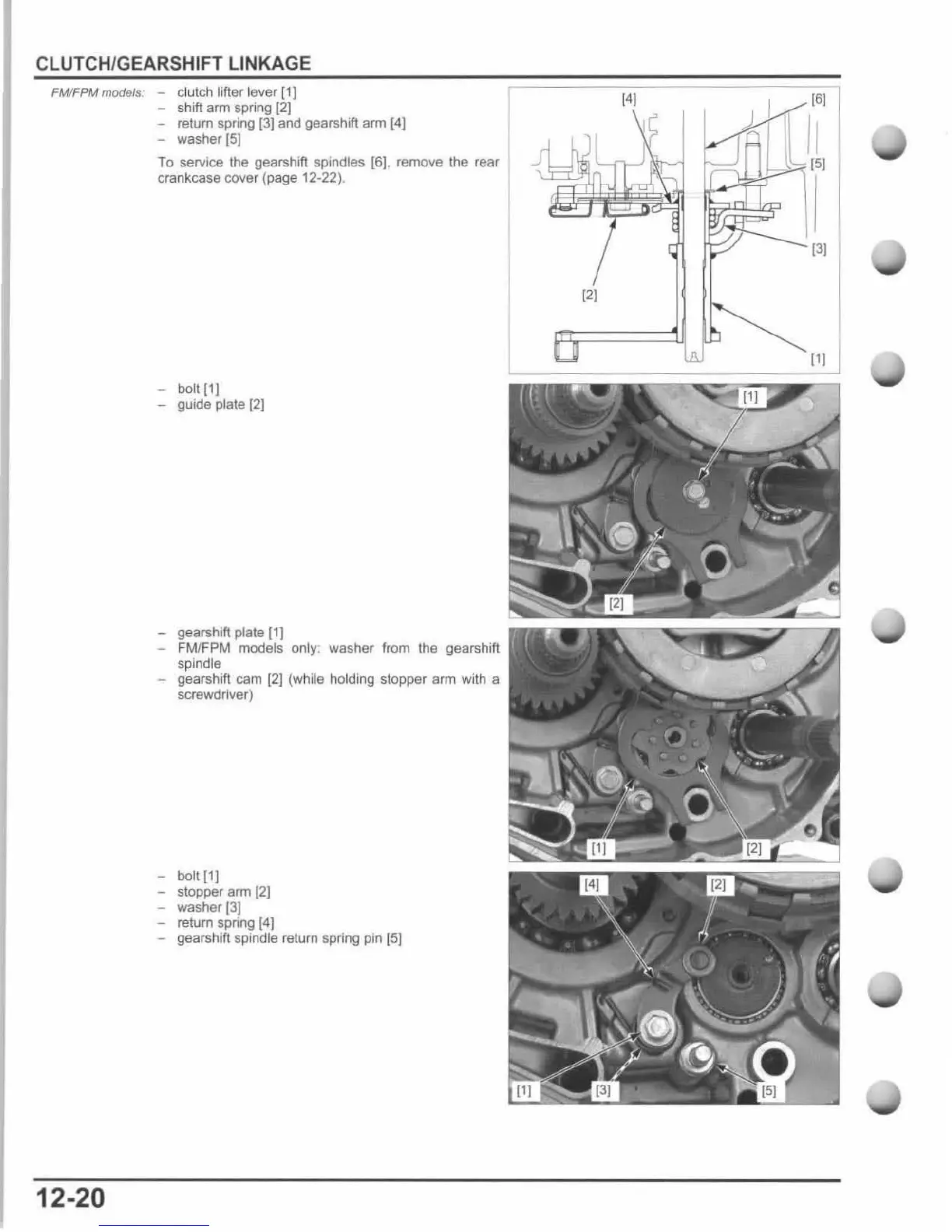

CLUTCH/GEARSHIFT LINKAGE
FMlFPM models : - clutch lifter lever (1)
- shift arm spring [2J
12-20
- return spring 13] and gearshift arm 14]
- washer [5)
To service the gearshift spindles 16J , remove the rear
crankcase cover (page
12 -22).
- 0011[1)
- guide plate ( 2)
- gearshift plaia [1J
- FM/FPM models only: washer from the gearshift
spindle
- gearshift cam [2) (while holding stopper arm with a
screwdriver)
- bolt [1]
- stopper arm (2]
- washer (3)
- return spring (4]
- gearshift spindle return spring pin [5]
