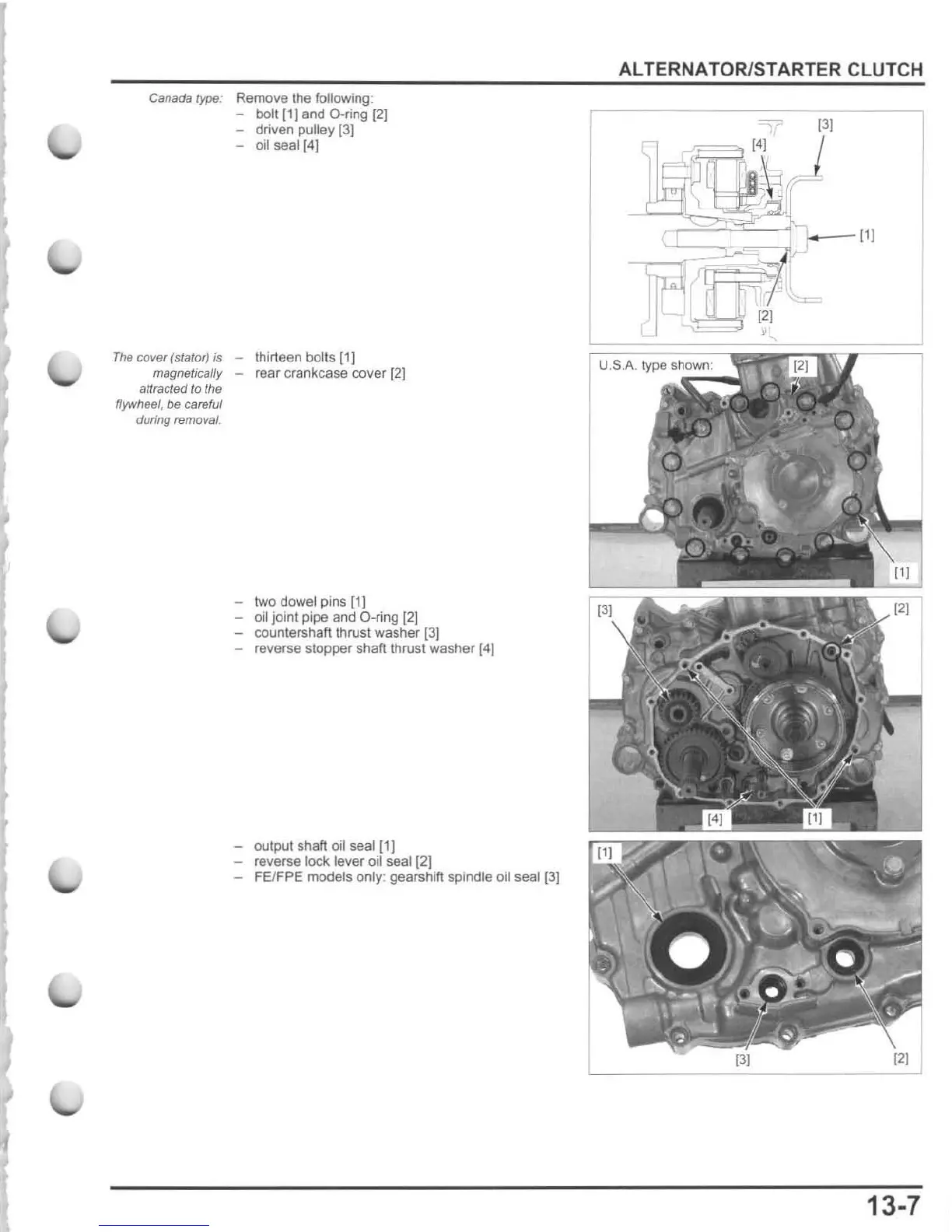

Canada type: Remove the following:
bolt (1) and O-ring [2)
- driven
pulley
131
- oil
seal
[4]
The
cover (stalor) is - thirteen bolls
(1)
magnetically - rear crankcase
cover
[2)
aflracted to the
flywheel,
be
careful
during removal.
- two dowel pins [1]
- oil joint
pipe and O-ring [2]
- countershaft thrust washer
[3J
- reverse stopper shaft thrust washer (4]
-
output
shaft oil seal11J
- reverse
lock lever oil seal [2)
-
FElFPE
models only: gearshift spindle oil seal [3]
ALTERNATORISTARTER CLUTCH
,'"
(31
J
13-7
