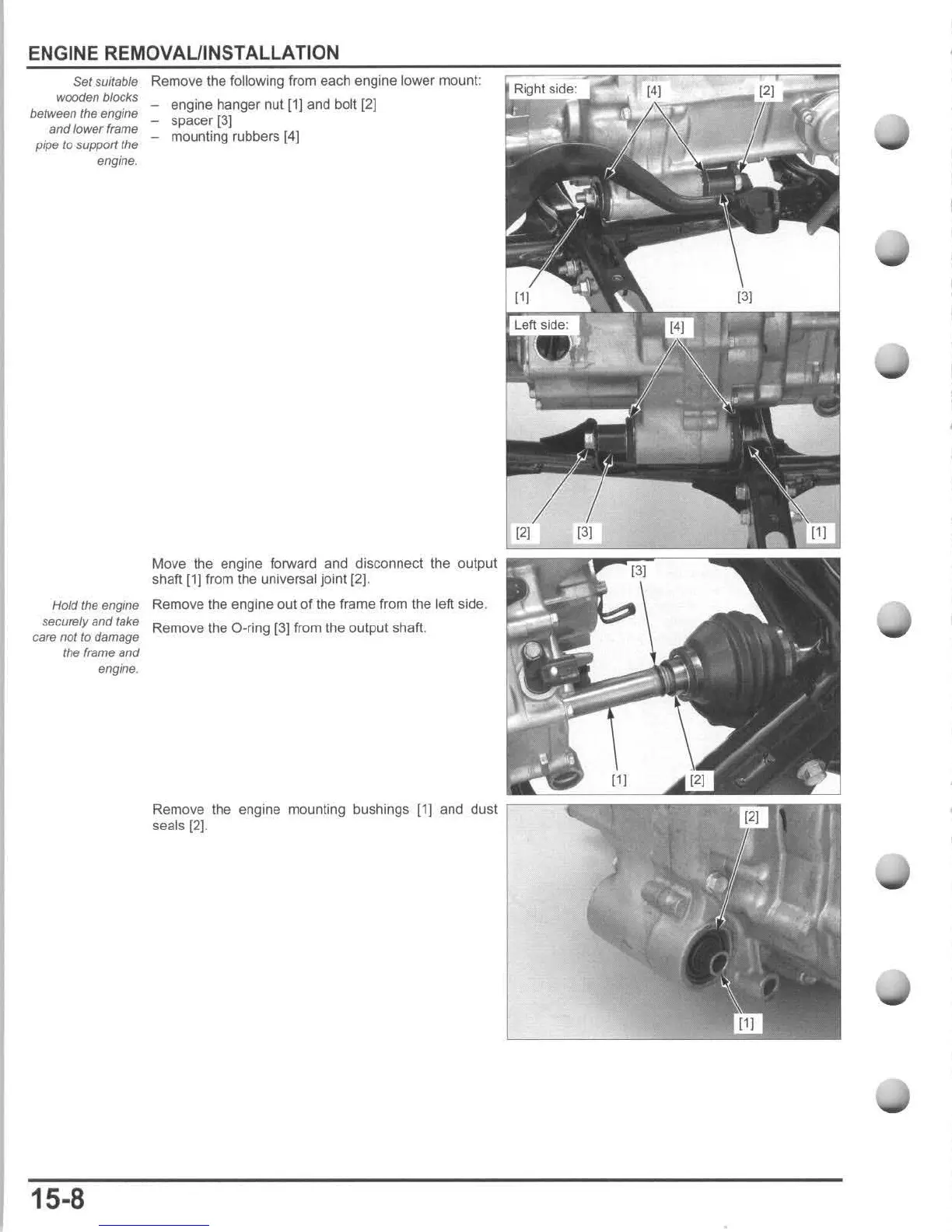

ENGINE REMOVAUINSTALLATION
Set suitable
wooden
blocks
between the engine
and lower
frame
pipe
to
support the
engine.
Hold the engine
securely and take
care
001
to
damage
the frame
and
engine.
15·8
Remove the following from each engine
lower
mount:
- engine hanger nut [1]
and
bolt
(2)
- spacer [3)
- mounting rubbers [4]
Move
the
engine forward and disconnect
the
output
shaft
[1]
from
the universal joint
121.
Remove the engine out
of
the frame from the left side .
Remove the
O·ring [3] from the ou tput shaft.
Remove the engine mounting bushings [1] and dust
seals
(2).
