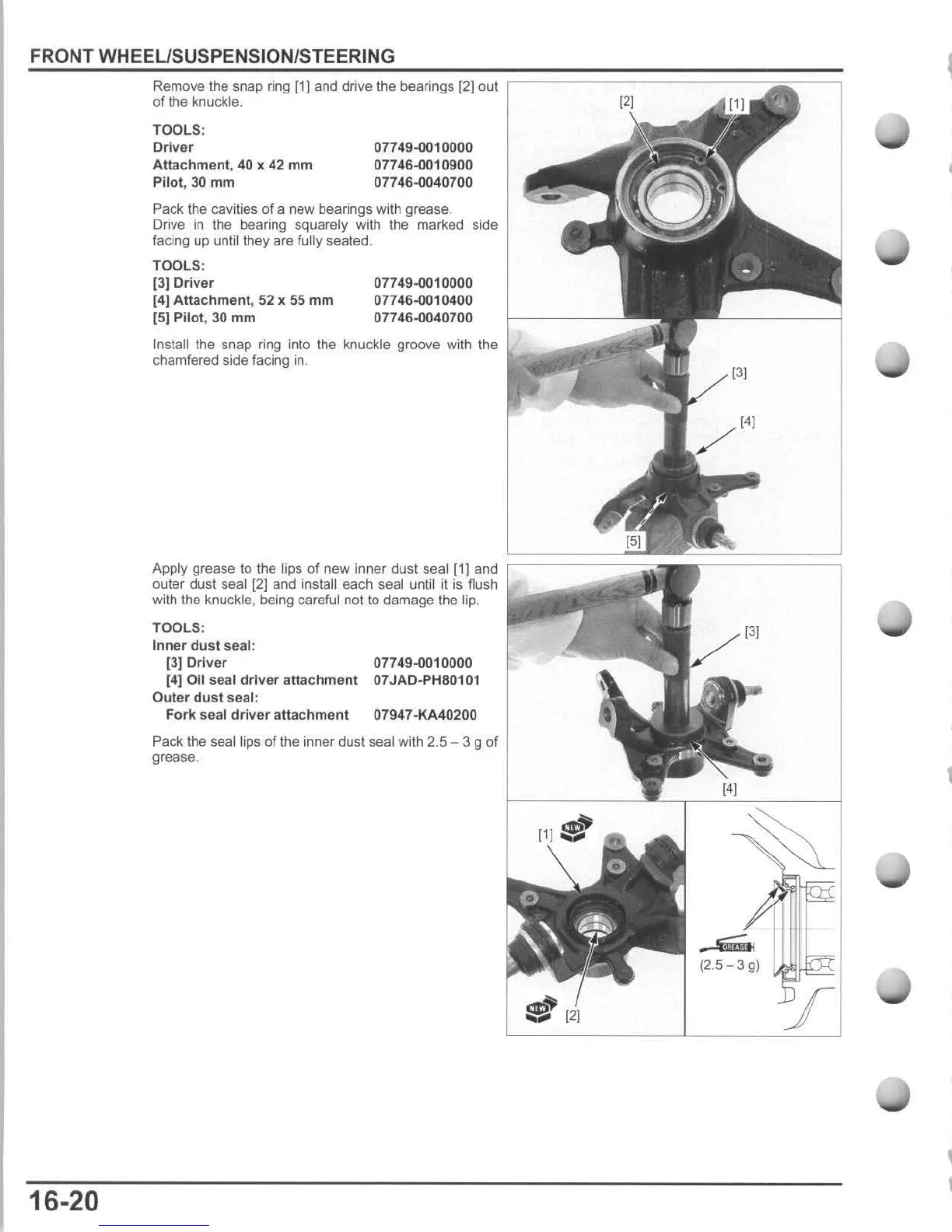

FRONT WHEEUSUSPENSIONfSTEERING
16-20
Remove the snap ring
(1)
and drive the bearings [2] out
of
the knuckle.
TOOLS ;
Driver
Attachment,
40
x 42 mm
Pilot, 30
mm
07749-0010000
07746-0010900
07746-0040700
Pa
ck
the cavities of a new bearings with grease.
Drive
in
the bearing squarely with the marked side
facing up until l hey are fully sealed.
TOOLS
:
(3] Driver
[4]
Attac
hment
, 52 x 55
mm
(51
Pilot, 30
mm
07749-0010000
07746-0010400
07746"()040700
Inslall the snap
ring
in
to
the knuckle groove with the
chamfered side facing
in
.
Apply grease to the
lips
of
new
inner
dust
seal [1) and
Quter dust
seal [2] and install each seal until
it
is
fl
ush
with the
knuckle, being careful not to
damage
the lip.
TOOLS:
Inner
dust
seal:
[3] Driv
er
[4} Oil seal
driver
attachment
Outer
dust
seal:
Fork
seal dr iv
er
attachment
07749-0010000
07 JAD·PH801
01
07947·KA40200
Pack the seal lips
of
the inner dust seal with 2.5 - 3 g
of
grease.
13]
14]
(31
(2.S -
3g)
