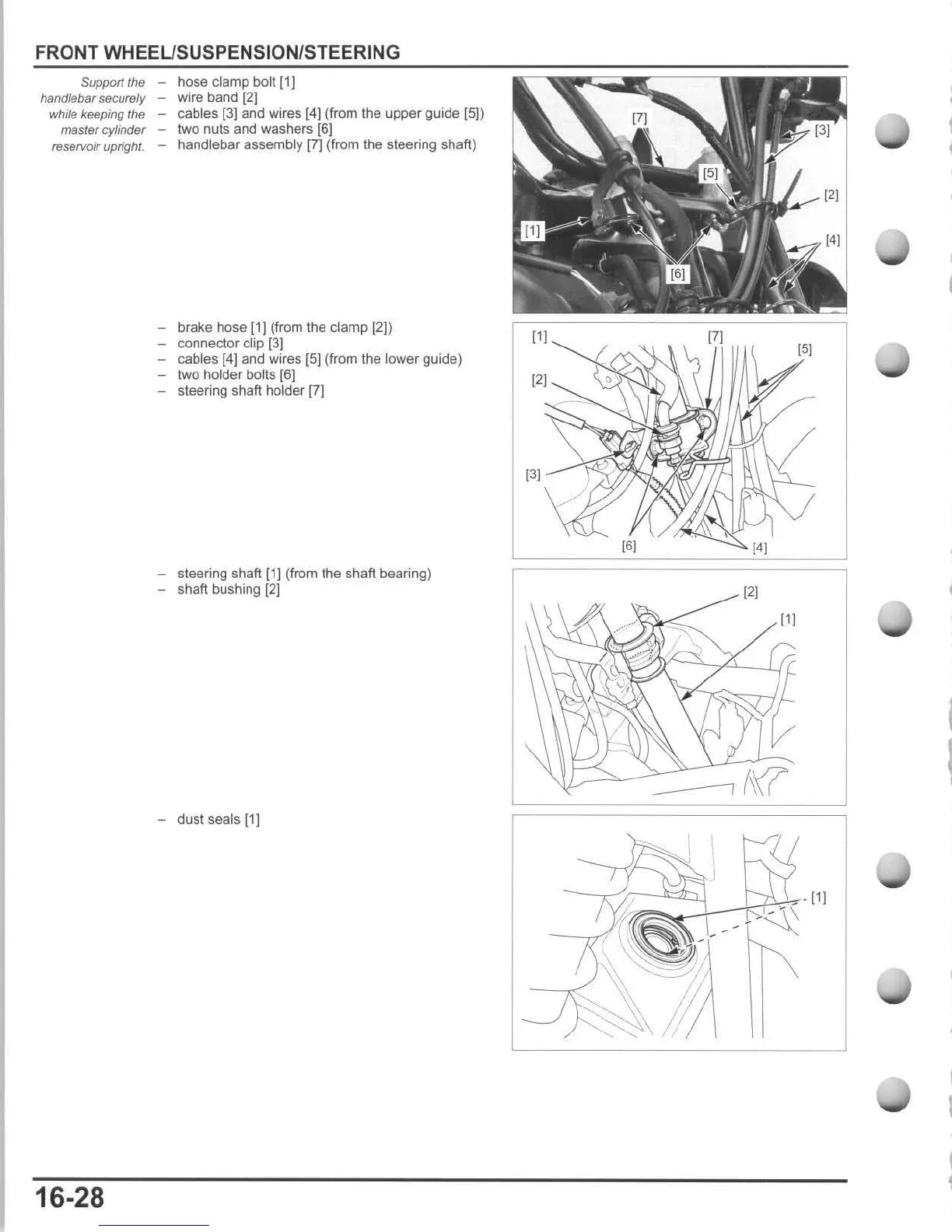

FRONT WHEEUSUSPENSION/STEERING
Supporllhe - hose clamp bolt [1]
handlebar securely - wire band [2]
whi~ keeping the - cables [3) and wires [4] (from the upper guide IS])
master cylinder - two nuts and washers [6)
reservoir upright. - handlebar assembly (7] (from the steering shaft)
- brake hose
(1) (from the clamp [2])
- connector clip [31
- cables [4J and wires [5J (from the lower guide)
- two holder bolts (6]
- steering shaft holder [7]
- steering shaft [1] (from the shaft bearing)
- shaft bushing [2J
- dust seals [1]
