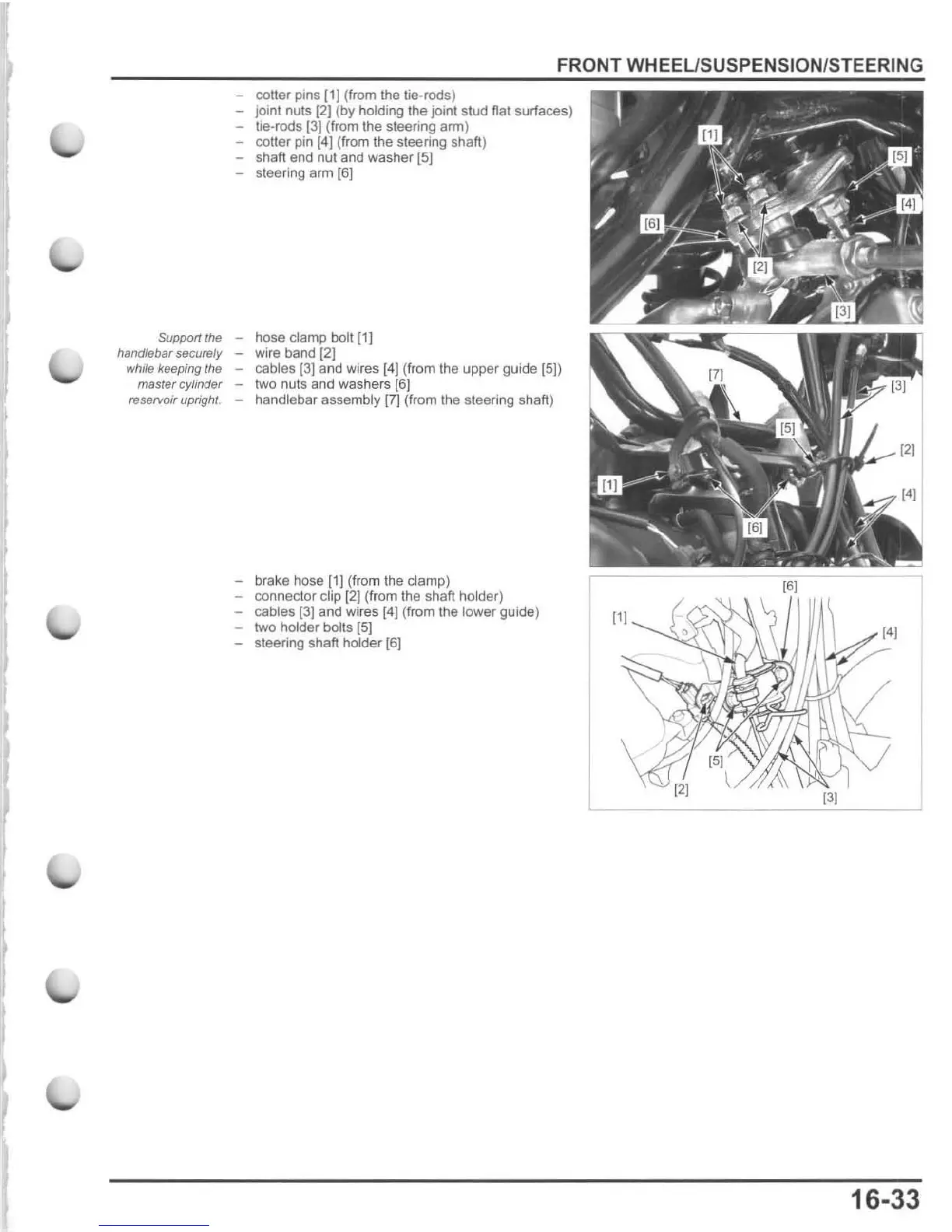

FRONT WHEEUSUSPENSIONfSTEERING
- cotler pins
(1J
(from Ihe lie-rods)
-
Joint
nuts
(2J
(by holding the joint stud flat surfaces)
- tie-rods (3] (from the steering arm)
- cotler pin
(4]
(from the steering shaft)
- shaft end nut and washer [5]
- sleering arm
(6]
Suppor1the - hose clamp bolt
(1)
handlebar securely - wire band [2]
while keeping the - cables
[3]
and wires
[4]
(from the upper guide (5])
master cylinder - two nuts and washers [6]
reservoir upright. - handlebar assembly
17]
(from the steering shaft)
- brake hose [1] (from the clamp)
- connector
clip
[2]
(from the shaft hOlder)
- cables [3] and
wi
res
(4]
(from the lower guide)
- two holder bolts
(5]
- steering sha
ft
holder
[6J
131
16-33
