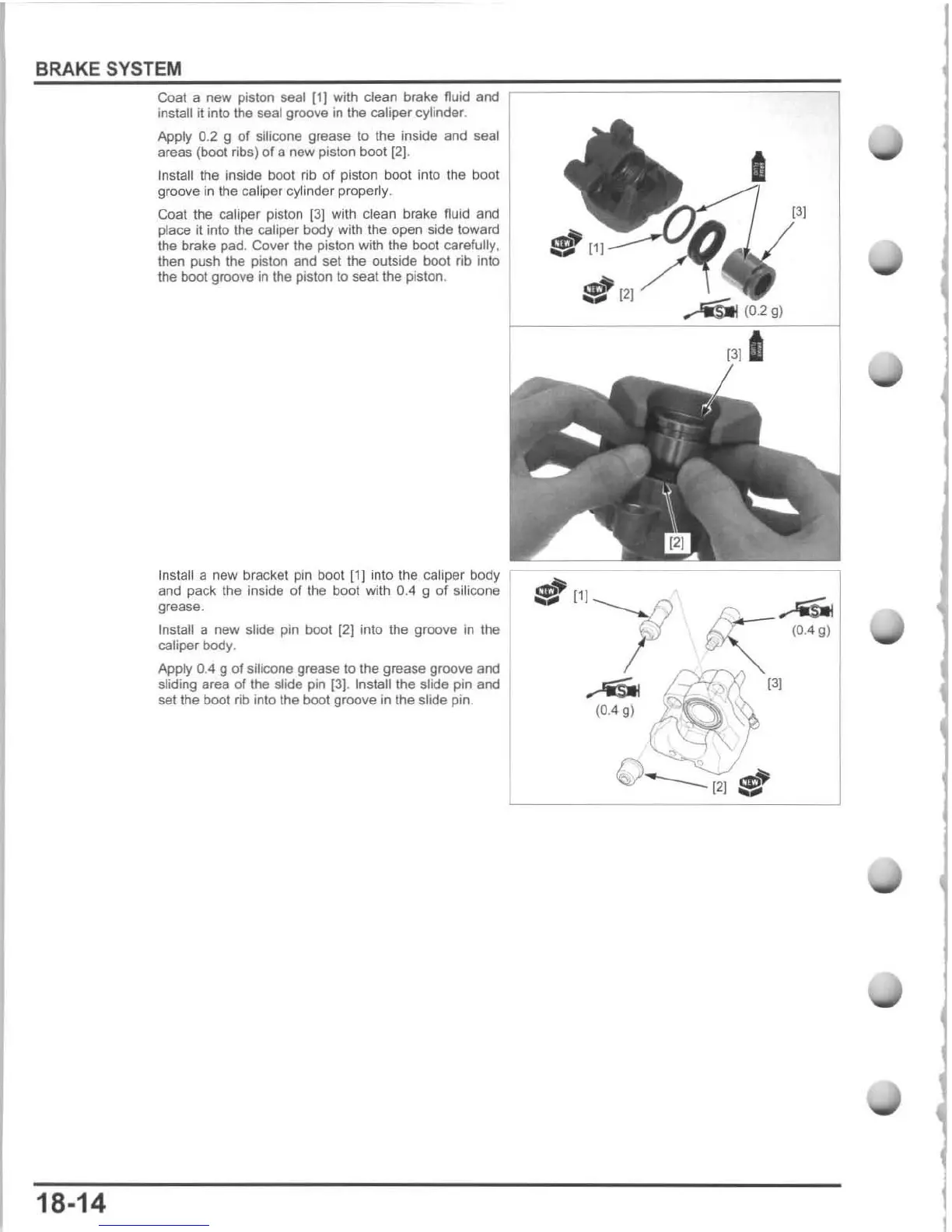

BRAKE SYSTEM
18-14
Coal a new piston seal (lJ with
dean
brake fluid and
install
it
into the seal groove in the caliper cylinder.
Apply 0.2 9 of silicone grease to
the
inside
and
seal
areas (boot ribs)
of
a new piston boot [21.
Install
the
inside boot
rib
of piston boot into the boot
groove
in
the caliper cylinder properly.
Coat the caliper piston [3] with dean brake fluid
and
place
it
into the caliper body with the open side toward
the brake pad.
Cover the piston with the boot carefully.
then push
the
piston and sel the outside boot
rib
into
the
boot
groove
in
the piston
to
seallhe
piston.
Install a new bracket
pin
bool
[1)
into
the
caliper body
and pack the inside
of
the
boot with 0.4 9
of
silicone
grease.
Install a new slide pin boot
[21
into the groove
in
the
caliper body.
Apply
0.4 9
of
silicone grease to the grease groove and
sliding area of the
slide pin (3] . Install the slide pin and
set the boot rib into the boot groove in the stide pin.
fII [l[
fII
[2[
,
I
~
~
[3J
Q
-----=-
[2J
fII
