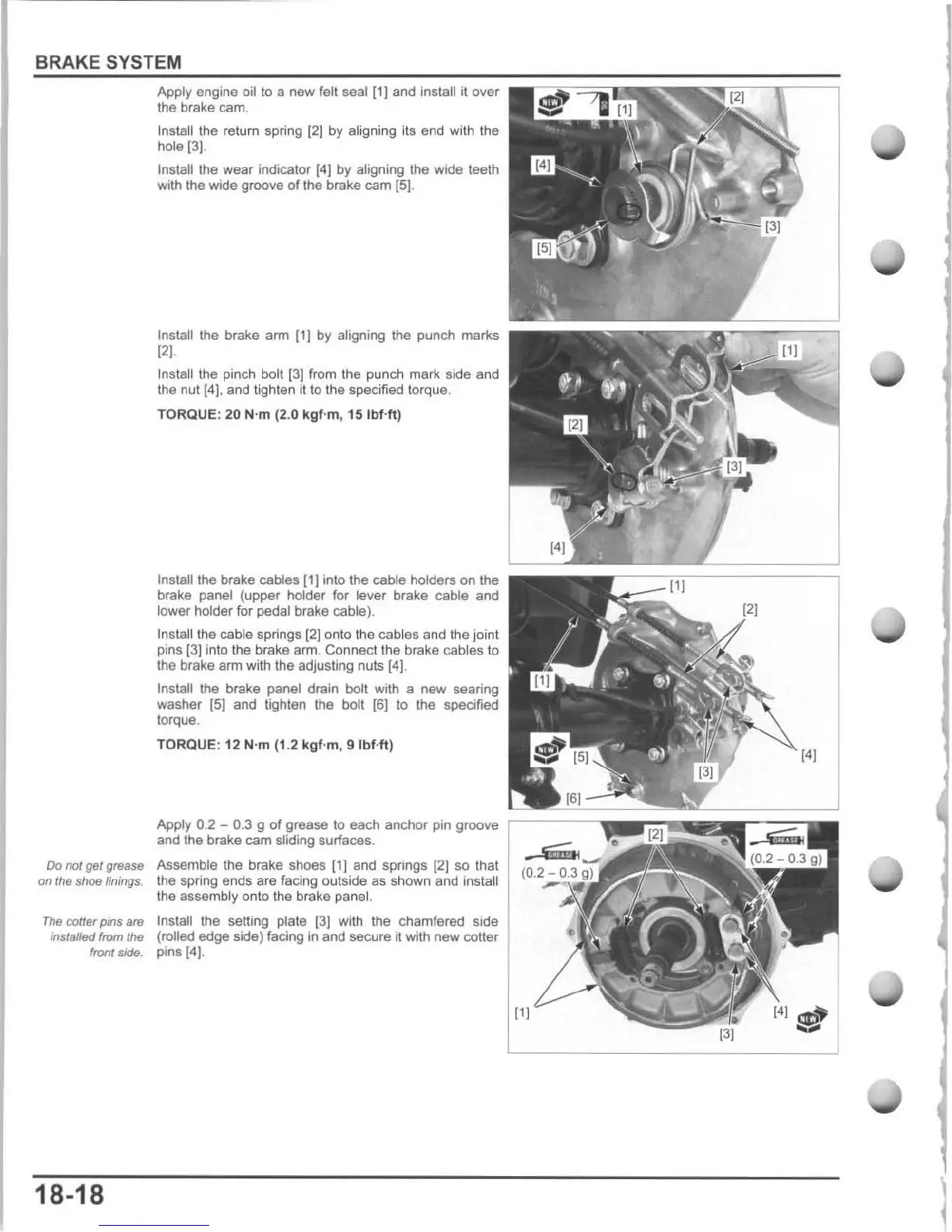

BRAKE SYSTEM
Do
not
get
grease
OIl/he shoe linings.
The
cotter
pins
are
installtKJ from the
front side.
18-18
Apply engine oil to a new felt seal [1] and Install it over
the brake cam.
Inst
allthe
return spring (
2)
by aligning
its
end
wi
th the
hole [3] .
InslaUthe
wear
indicator
(4J
by aligning the wide teeth
with the wide groove
altha
brake cam (5).
Install the brake arm (1]
by
aligning the punch marks
(2( .
Install the pinch bolt [3] from the punch mark side and
the nut (4]. and lighten
ilia
the specified torque.
TORQUE:
20
N'm (2 .0
kgf
'm,
151bHt)
Install the brake cables
11]
into the cable holders on the
brake panel (upper holder for lever brake cable and
lower holder for pedal brake cable).
InslaUthe cable springs (2] onto the cables and the
jOin
t
pins (3)Inlo the brake arm. Connect the brake cables to
the brake arm with the adjusting nuts
[4)
.
Install the brake panel drain bolt with a new searing
washer [5) and tighten the
bolt
(6]
to
the specified
torque.
TORQUE: 12 N'm (1.2
kgf
'm ,
9lbHt)
Apply 0.2 - 0.3 g of grease to each anchor pin groove
;::~~
::':'::
:;;;;:
and the brake cam sliding surfaces.
Assemble the brake shoes
11]
and springs [2]
so
that
the spring ends are facing outside
as
shown and install
the assembly onto the brake panel.
Install
the setting plate
(3)
with the chamfered side
(rolled edge side) facing in and secure it with new cotter
pins
(4]
.
