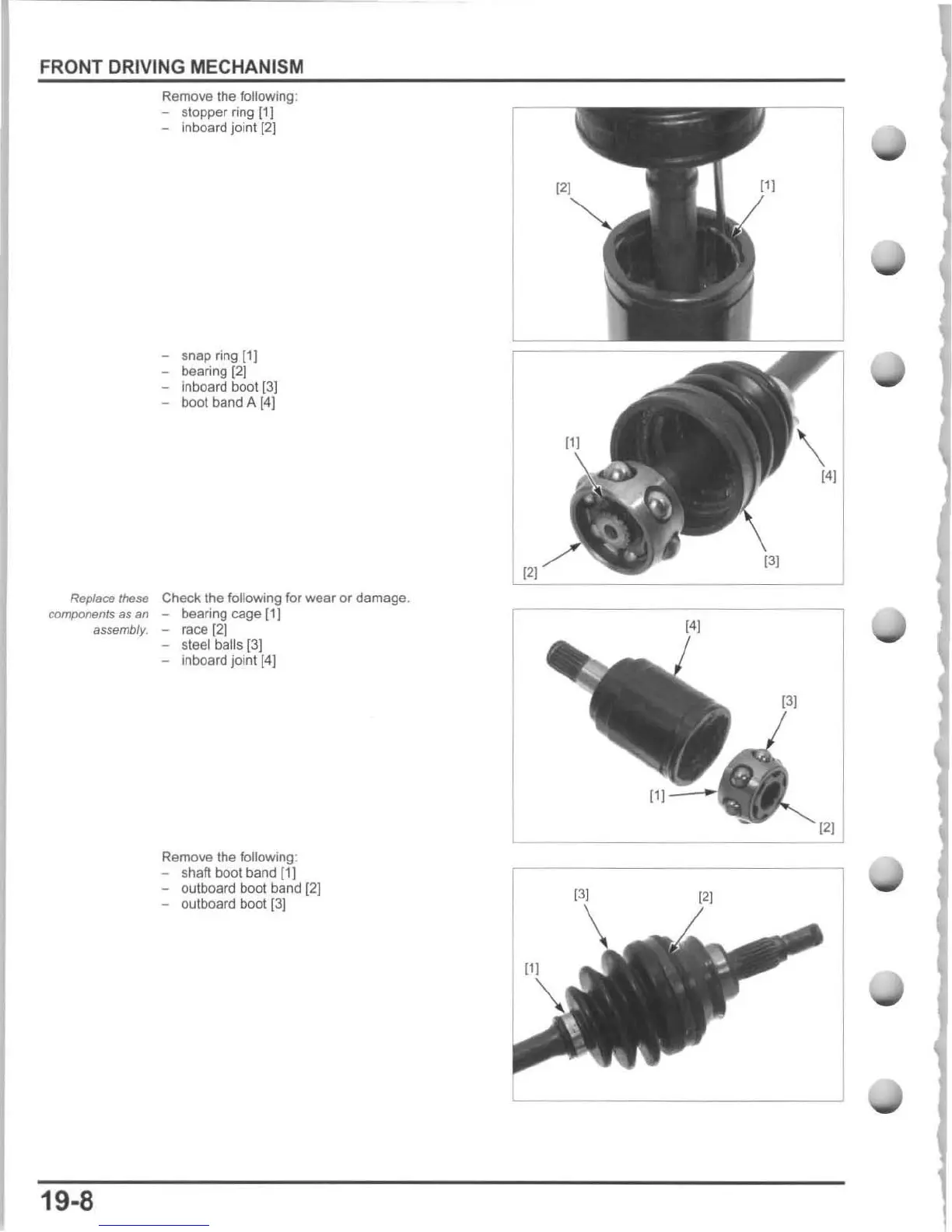

FRONT DRIVING MECHANISM
Remove the following :
- stopper ring
11]
- inboard joint
12]
- snap ring
[1]
- bearing (2]
- inboard boot
[3J
- boot band A [4]
Replace
these
Check
the
following
for
wear
or
damage.
components
as
an
-
bearing
cage
[1]
19-8
assembly. -
race
[2]
- steel balls
(3)
- inboard joint {4]
Remove the
following :
- shaft boot band [1]
- outboard boot band (2]
- outboard
boot [3)
[41
[21
