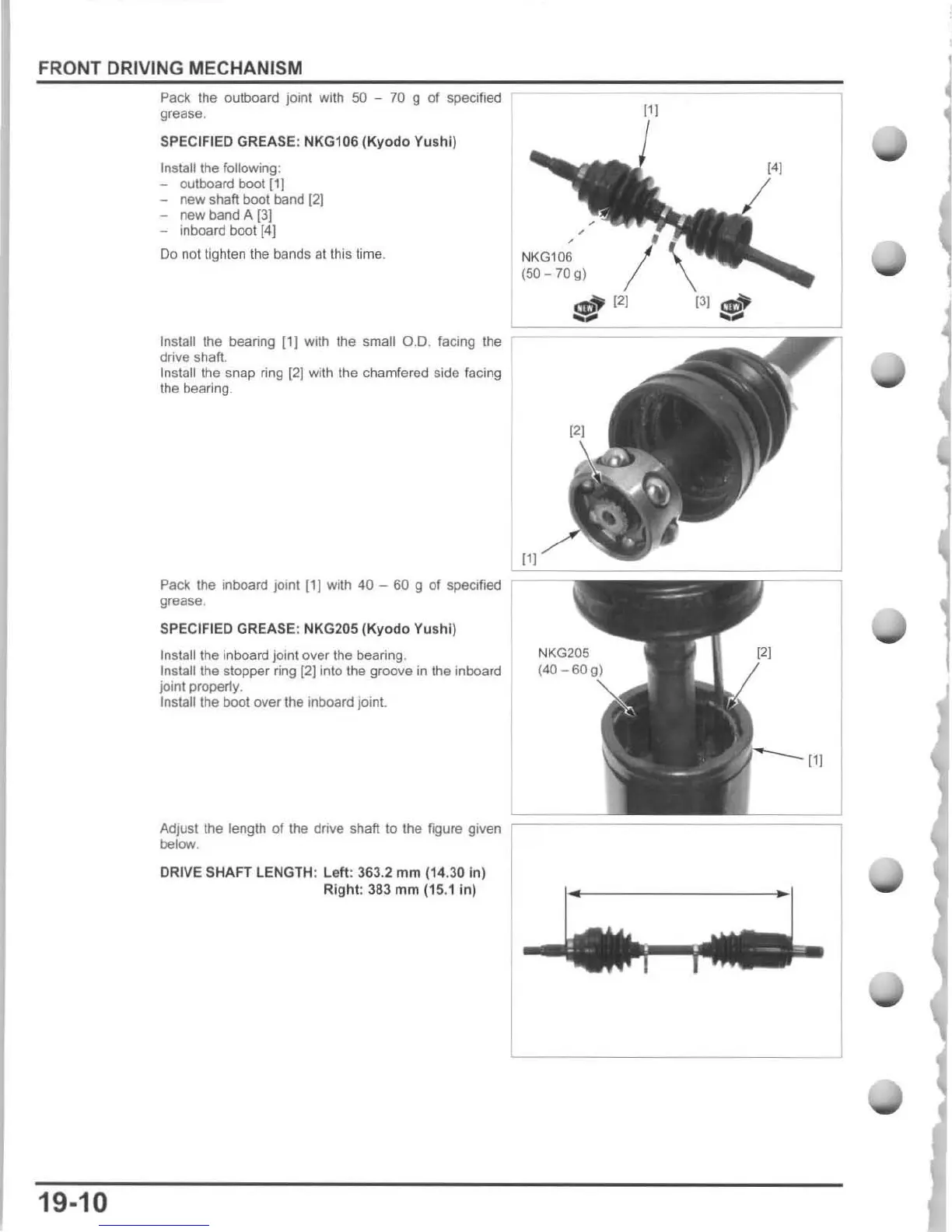

FRONT DRIVING MECHANISM
19-10
Pack the outboard joint with
50
-
70
9
of
specified
grease.
SPECIFIED GREASE: NKG106
(Kyodo
Yusht)
Instalilhe
following:
- outboard boot
[1)
- new shaft boot
band
(2J
- new band A
13]
- inboard boot 1
4]
Do not tighten the bands at this time .
NKG106
(50-
70
9)
~
121
131
~",
....
....
Install
the
bearing (1] with
the
small
0.0
. facing the
~==
=========
==:_;;
~
drive
shatto
Install the snap ring
[21
with the chamfered side facing
the
bearing.
Pack
the
inboard joint
111
with 40 - 60 9
of
specified
~==
::;;;
;;;;;;;;;;;;;;;;
;;;
;===-~
grease.
SPECIFIED GREASE: NKG205
(Kyodo
Vus ht)
Install the inboard joint over the bearing.
InslaUlhe stopper ring [2] into the groove in the inboard
joint properly.
Install the boot over the inboard joint.
Adjust the length
of
the drive shaft to the figure given
~====
~~~~~~~~
===::;
below.
DRIVE SHAFT
LENGTH: Le
ft
: 36
3.
2
mm
(14
.3
0
in)
Right
: 383
mm
(15.1
in)
To Next Page
