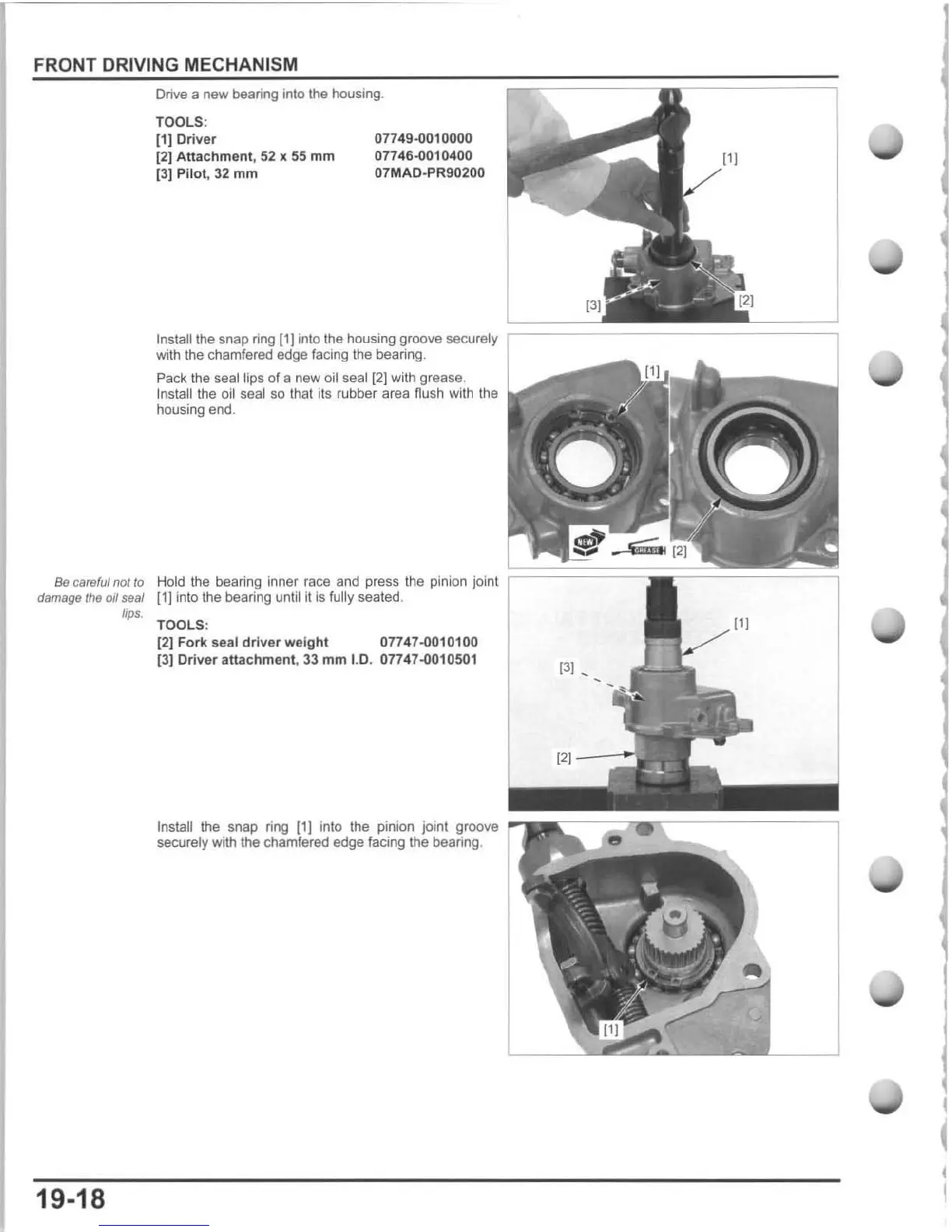

FRONT DRIVING MECHANISM
Be
carerlJl
not
10
damage the 0
,1
seal
lips.
19·18
Drive a
new
bearing
in
to the housing.
TOOLS:
[1]
Driver
[21
Attachment,
52 x 55
mm
[3J
Pilot
,
32
mm
07749"()010000
07746-0010400
07MAD·PR90200
Install the snap ring [1] into t
he
housing groove securely
~====
~
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
~
====~
with the chamfered edge facing the bearing.
Pack the
seal lips
of
a new oil seal [2] with grease.
Install the oil seal so thaI its rubber area flush wilh the
housing end.
Hold the bearing inner race and press the pinion joint
:===
=====
;;;;
;::
=
="'IIIIIIII~=:"'~
[11
into the bearing until
it
is fully seated.
TOOLS:
121
Fork seal driver weight 07747"{)010100
(3]
Driver
aUachment
, 33
mm
I.D. 07747"()010501
Install
the
snap ring [1]
in
to the pinion joint groove
securely wilh the chamfered
edge
facing the bearing.
To Next Page
