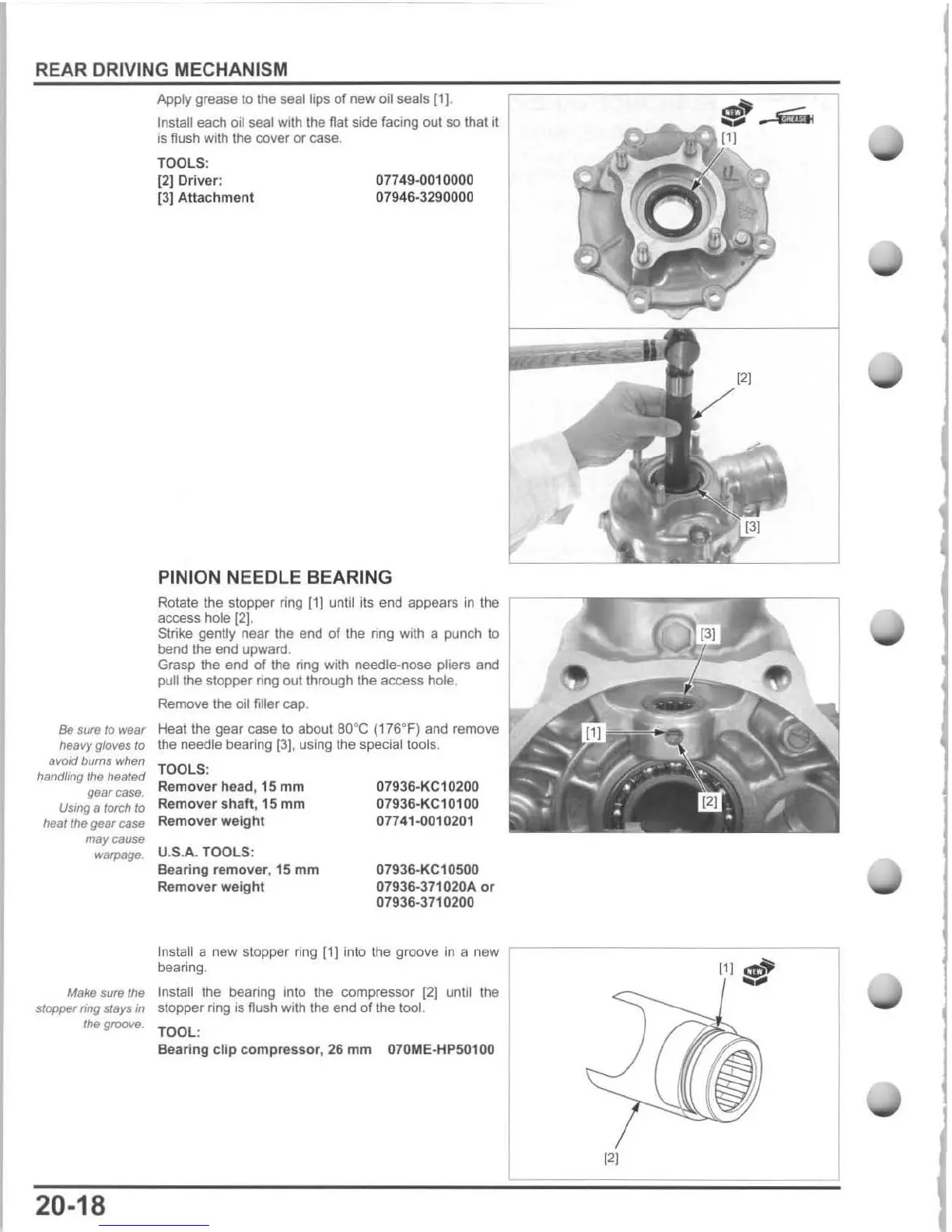

REAR DRIVING MECHANISM
Be
sure
/0
wear
heavy gloves to
avoid bums when
handling
Ihe
healad
gear
case
Usmg
8
loreh
to
heal
the
gear
case
may
cause
Apply grease to the seal lips
of
new
oil seals [1].
Inslall each oil seal with the flat side facing
oul
so
thai
it
is flush with the
cover
or
case.
TOOLS:
(2] Driver:
[3]
Attachment
07749-0010000
07946·3290000
PINION NEEDLE BEARING
Rotate the stopper ring [tl until its end appears in the
,---
access hole [2].
Strike gently near the end of the ring with a punch to
bend the
end
upward.
Grasp
the
end
of
the ring with
needle-nose
pliers
and
pull
the
stopper
ring
01..1
1 through
the
access
hol
e.
Remove the oil filler cap.
Heat the gear case
to
about
eo·e
(176"F) and remove
the needle bearing
(3]
, using the speciallools.
TOOLS:
Remover head, 15 mm
Remover shaft, 15
mm
Remover
weight
07936·KC10200
07936-KC1
01
00
07741-0010201
warpage U.S.A. TOOLS:
Make sure Ihe
stopper
ring slays in
the
groove.
20-18
Bearing rem
over
,
1S
mm
Remover
weight
07936·KC10S00
07936-371 020A
or
07936-3710200
Install
a new stopper
ring
[1J
into the groove in a new
,--------------
~
beaciog.
(11
¢!~
....
install the beating into the compressor
[2J
until ihe
stopper ring
is
nush with the end of the tool.
TOOL:
Bearing c
lip
compressor,
26
mm
070ME-HPS0100
121
