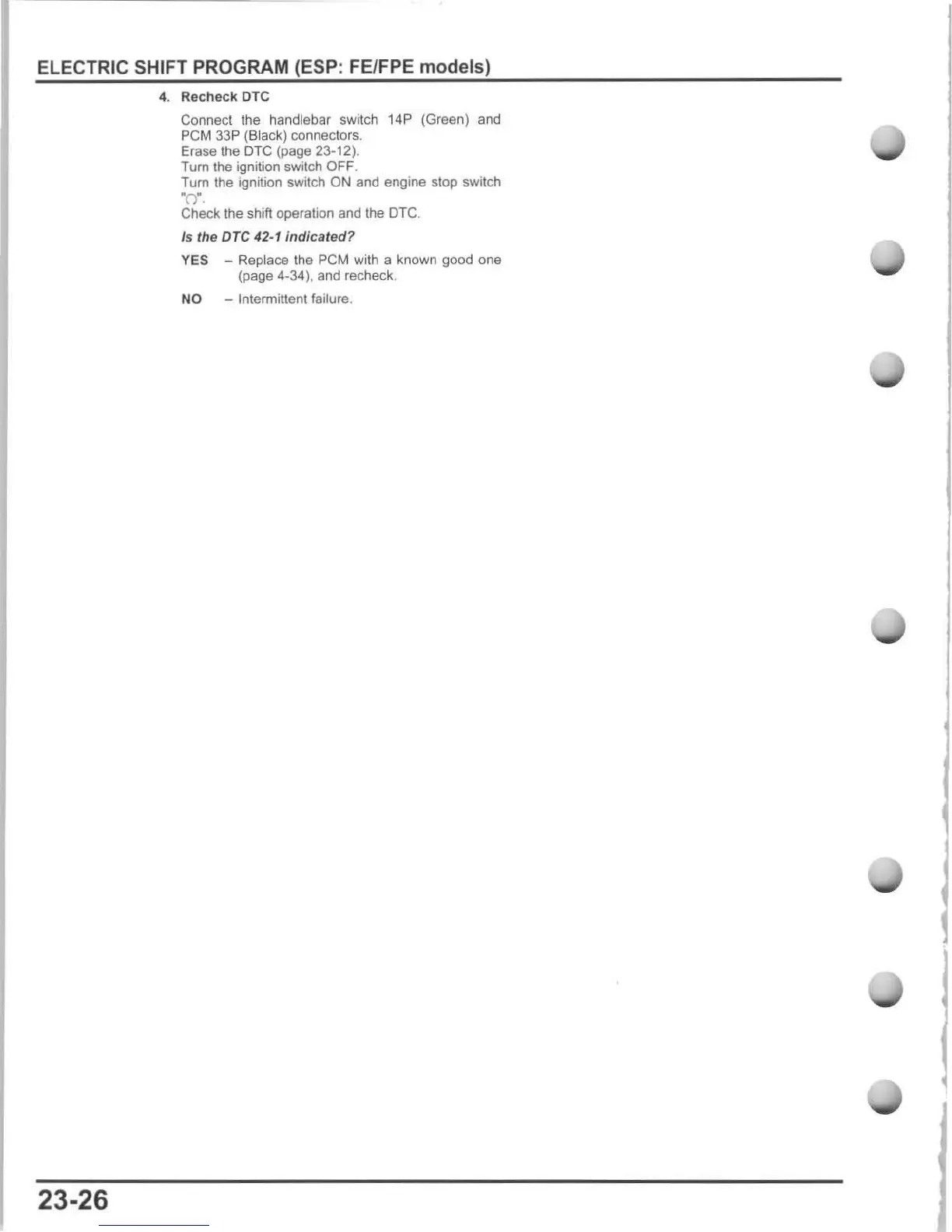

ELECTRIC SHIFT PROGRAM (ESP: FE/FPE models)

23-26

4. Recheck

OTe

Connect the handlebar

swi

14P

(Green)

and

PCM 33P (Black) connectors.

Erase the

OlC

(page 23-12).

Tum

the ignition switch

OFF

Tum

the ignition switch

and

engine

stop switch

Check the shift operation and the

Ole

Is the ore 42-1 Indicated?

YES - Replace the PCM with a known good

one

(page

4-34)

. and recheck.

- Intermittent failure.
