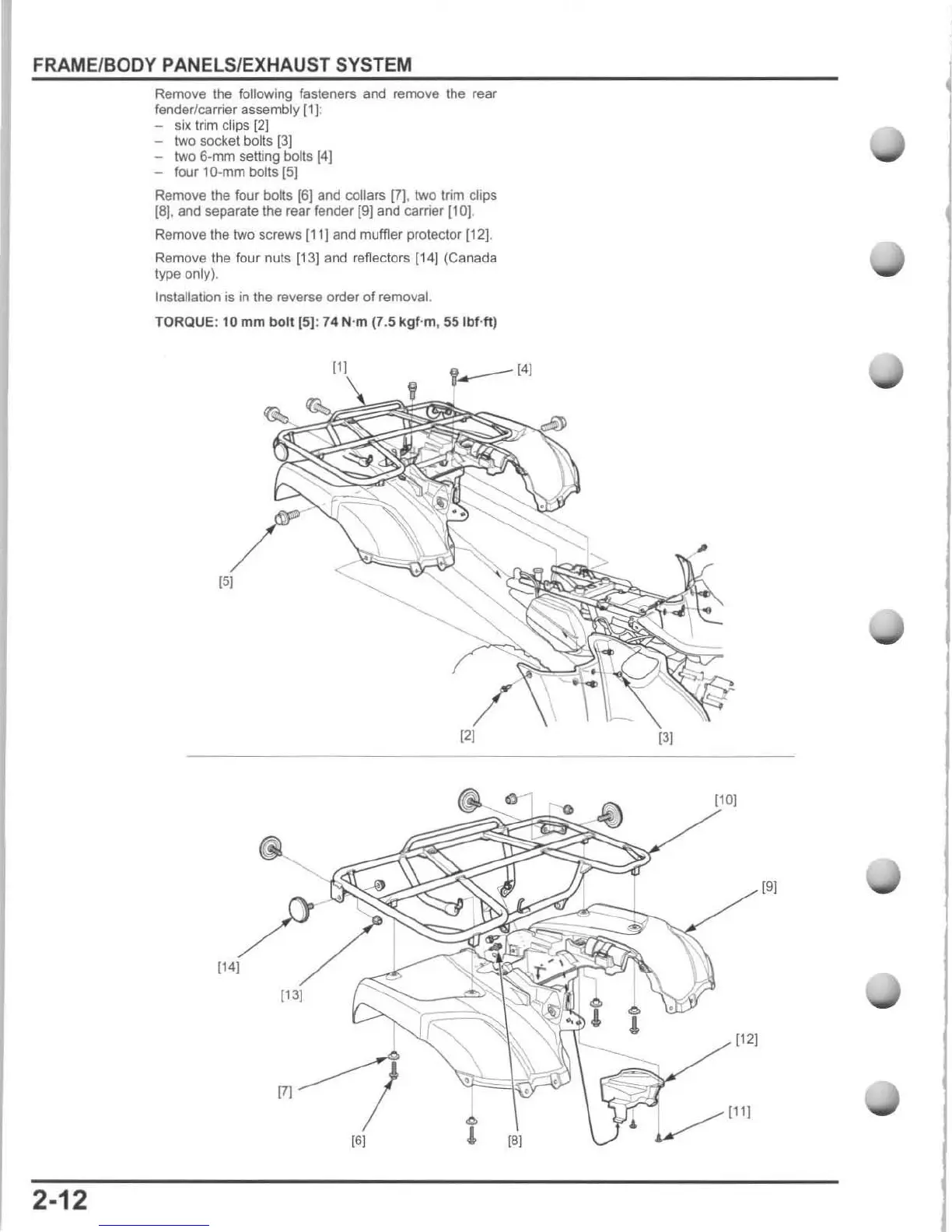

FRAME/BODY PANELS/EXHAUST SYSTEM
2-12
Remove the following fasteners and remove the rear
fender/carrier
assembly
[11
:
- six trim clips [2]
- two socket
bolls [3]
- two
6·mm
setting bolls
[4J
- four 10-mm bolls
151
Remove the four bolts [6] and collars
(7]
. two trim clips
[8). and separate the rear fender (9] and carrier [10].
Remove the two screws (11) and muffler protector (12).
Remove the four
nuls [13] and reflectors
{141
(Canada
type
only).
Installation
is
in
the reverse order
of
removal.
TO
RQUE
: 10 mm b
ol
t (5]: 74 N'm (7.5 kgf-m . 551
bHt
)
[5[
(141
[13J
[7J
"
[6J
,
[3J
[9[
[12J
[8J
