9
D-STAR OPERATION <ADVANCED>
9-14
Low-speed data communication
In addition to digital voice communication, low-speed
data communication can be made.
Use the optional OPC-2218LU d a t a c o m m u n i c at i o n
c a b l e with a third-party serial data communication soft-
ware.
NOTE:
Only ASCII code can be used for the low-speed
data communication.
A message of up to 20 characters can be transmit-
ted with a DV voice signal.
Depending on the combination of your PC and your
serial data communication software, some data
may be lost.
While receiving voice communication or low-speed
data communication through the internet, some
packets may be lost due to network error (poor
data throughput performance). In such a case, “L
appears on the LCD to show the Packet Loss has
occurred.
Set your own call sign, UR call sign and the repeater q
call sign.
Follow the instructions of the data communication w
application software.
When data is input from a PC through the [DATA] e
jack, the transceiver automatically transmits it.
The TX/RX indicator lights red.
Push [PTT] to transmit the data and a voice signal when
“PTT” is selected in the “DV Data TX” item of the MENU
screen. (p. 16-56)
(MENU > DV Set > DV Data TX)
Before transmission, the transceiver sends approximate-
ly 500 milliseconds carrier sense.
Configure the serial data communication software as
follows.
• Port : The COM port number which is used by
the ID-51A/E.*
1
• Baud rate : 4800/9600 bps*
2
• Data : 8 bit
• Parity : None
• Stop : 1 bit
• Flow control : Xon/Xoff
*
1
Depending on the PC environment, the COM port
number used by the ID-51A/E may be higher than
5. In such case, use the application which can set to
higher than 5.
*
2
The baud rate can be set in the “Data Speed” item of
the MENU screen. (p. 16-69)
(MENU > Function > Data Speed)

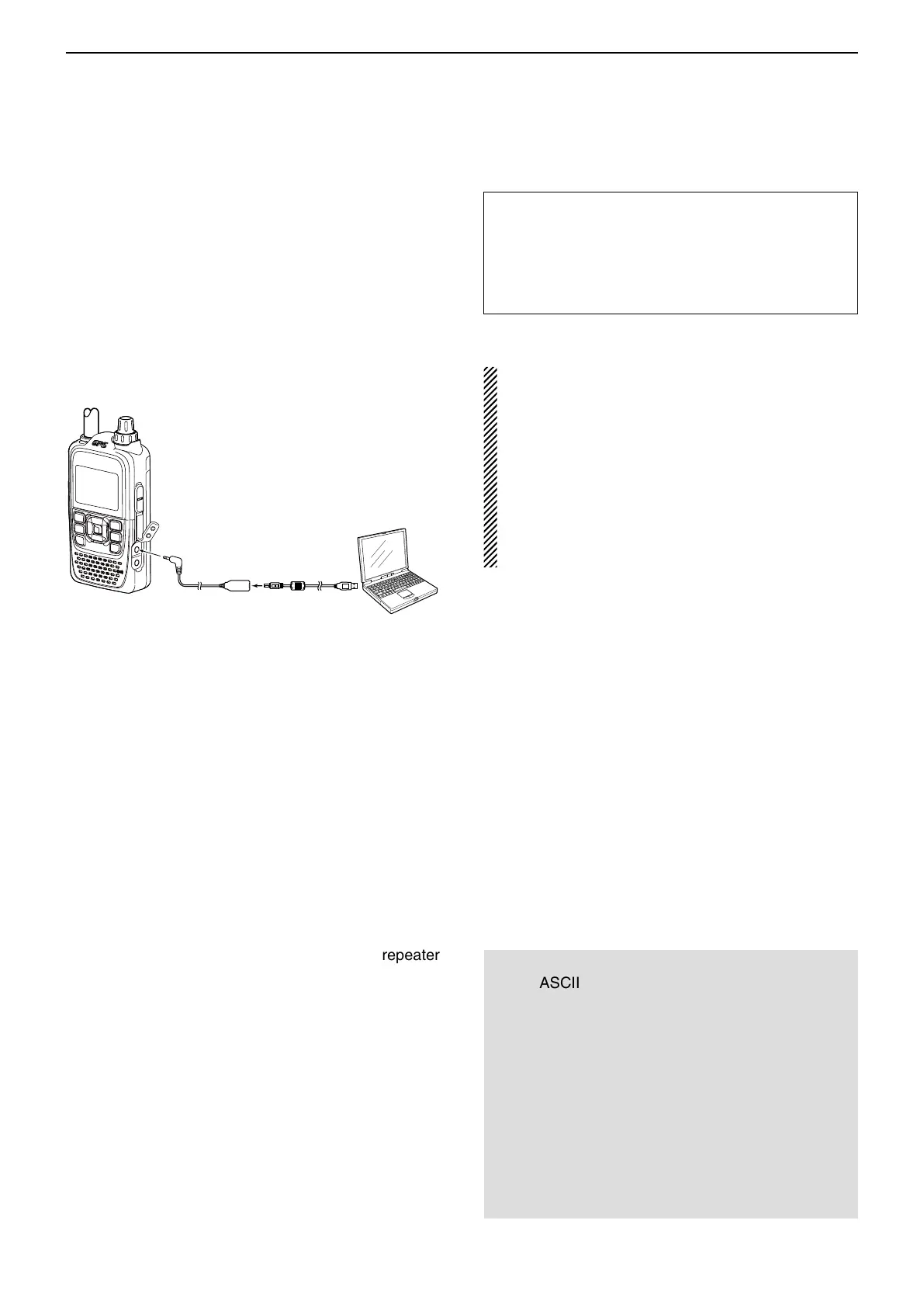

D Connection
Connect the transceiver to your PC using the OPC-
2218LU cable, as illustrated below.
To the [DATA] jack
OPC-2218LU
(Option)
To a
[USB] port
PC
Transceiver
NOTE: Before starting, be sure to set the following
items;
Set the “GPS SELECT” option to “OFF, “Internal
GPS” or “Manual” in the MENU screen. (p. 16-32)
(MENU > GPS > GPS Set > GPS Select)
Set the “GPS OUT” option to “OFF” in the MENU
screen. (p. 16-33)
(MENU > GPS > GPS Set > GPS Out)
Set the “GPS TX Mode” option to “OFF” in the
MENU screen. (p. 16-40)
(MENU > GPS > GPS TX Mode)
D Low-speed data communication application setting
D Low-speed data communication operation
Before starting low-speed data communication:
The “DV Data TX” item is set to “Auto” by default.
So, depending on the data communication application
software, the transceiver may automatically transmit
the data only when you input text on the software
screen.
