D-STAR OPERATION <ADVANCED>
9-20
Digital squelch functions (Continued) ■

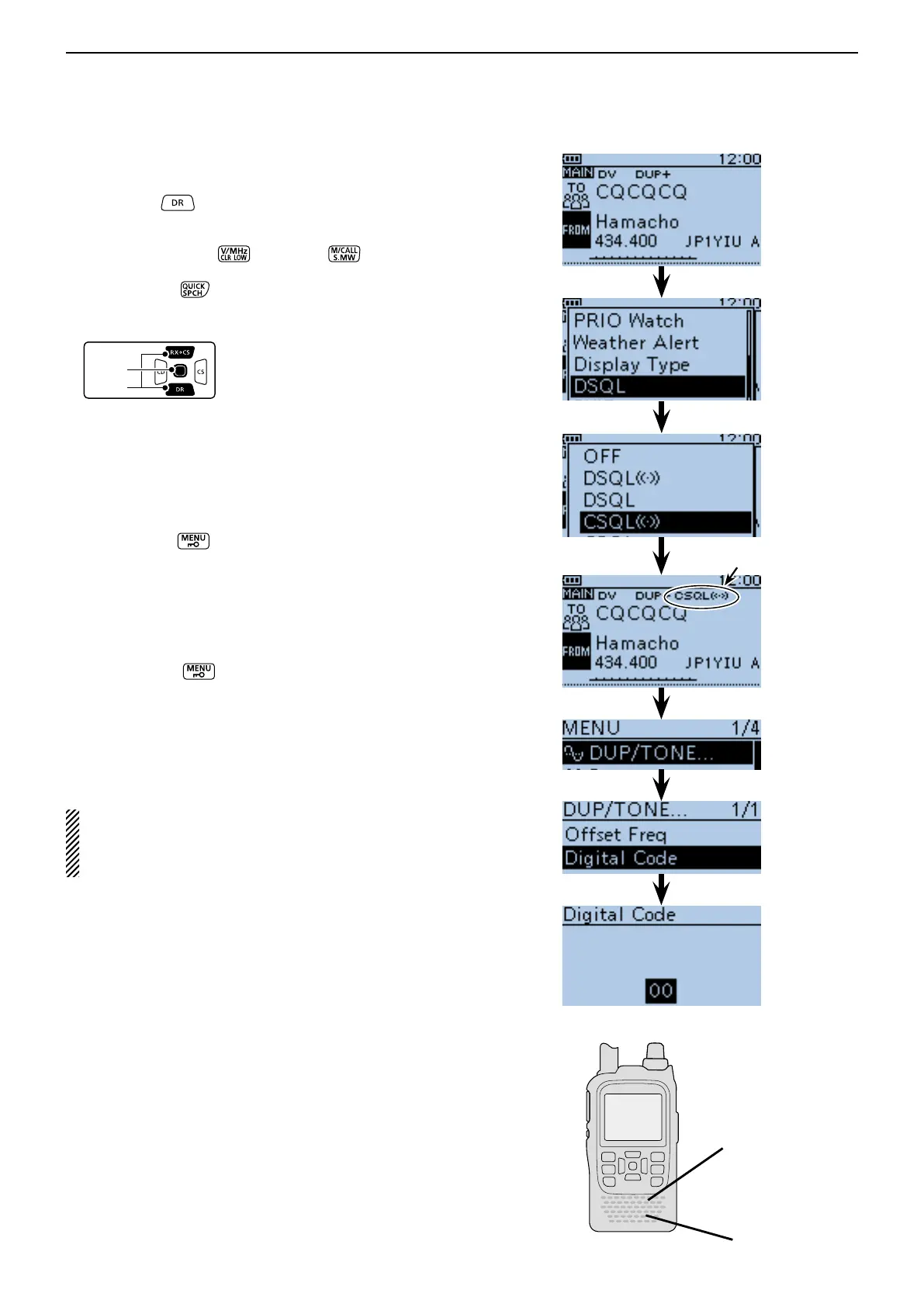

D The digital code squelch setting
Hold down q for 1 second.
• The DR mode is selected.
• To use the digital call sign squelch function in another
mode, push [V/MHz]
or [M/CALL] to select the
VFO, Memory, or CALL channel mode.
Push [QUICK] w .
Push D-pad( e ) to select “DSQL,” and then push D-
pad(Ent).
D-pad
(�)
(Ent)
Push D-pad( r ) to select “CSQL S” or “CSQL.”
• CSQL S : Turn ON the digital code squelch pocket
beep.
• CSQL : Turn ON the digital code squelch.
Push D-pad(Ent) to set the digital code squelch, and t
then exit the quick menu screen.
• “CSQL S” or “CSQL” appears.
Push [MENU] y .
Push D-pad( u ) to select the root item (“DUP/
TONE...”), and then push D-pad(Ent).
Push D-pad( i ) to select “Digital Code,” and then
push D-pad(Ent).
Rotate [DIAL] to select a digital code between 00 o
and 99 for the digital code squelch function.
!0 Push [MENU] to save, and exit the MENU
screen.
!1 When the received signal includes a matching code,
the squelch opens and the audio is heard.
• When the received signal’s code does not match, the
digital code squelch does not open; however, the S/RF
meter shows the received signal strength.
NOTE: While operating in the low-speed data com-
munication mode, the digital code squelch opens
even if receiving a signal does not match to your
digital code.
D Pocket beep function with the digital
code squelch
When a received signal matches your digital code, the
transceiver sounds beep tones for 30 seconds and
“S” blinks.
Push [PTT] to answer, or push D-pad(Ent) to stop ➥
the beeps or “S” blinking.
• “S” disappears.
If no operation is performed for 30 seconds, the beep
tones automatically stop, but “S” continues to blink
to inform you of a call.
Appears
Beep, Beep, Beep...
• When “CSQL S” is selected
