17
OTHER FUNCTIONS
17-10

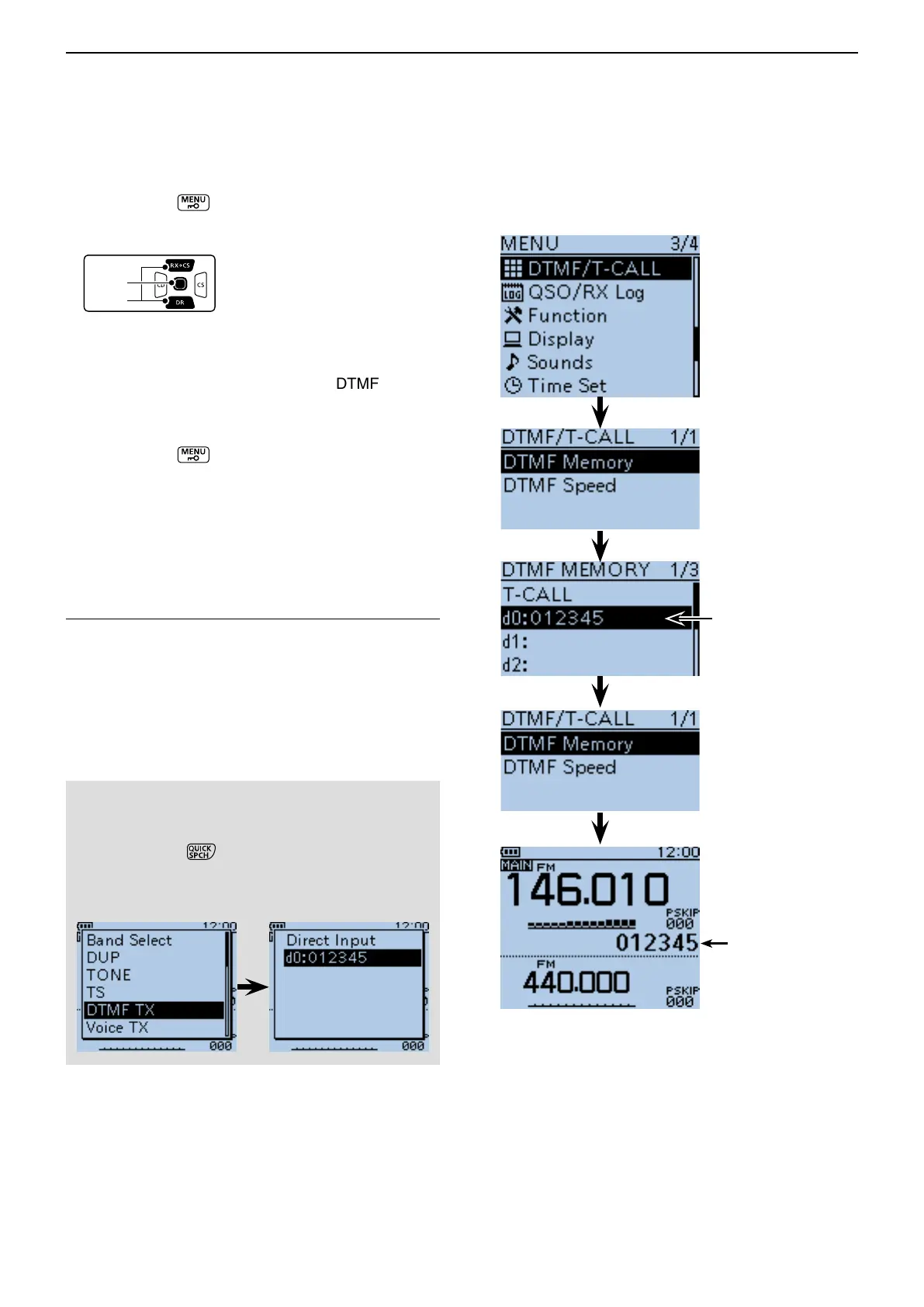

Using the DTMF memory (Continued) ■
D DTMF code transmission
Push [MENU] q to select the MENU list screen.
Push D-pad( w ) to select the root item (“DTMF/T-
CALL”), and then push D-pad(Ent).
Push D-pad( e ) to select “DTMF Memory,” and then
push D-pad(Ent).
• DTMF memory channel list (d0 to d#) is displayed.
Push D-pad( r ) to select the desired DTMF memory
channel, then push D-pad(Ent).
• Beeps sound, and the selected DTMF channel is set for
transmission.
Push [MENU] t to exit the MENU screen.
While holding down [PTT], push [SQL] to transmit y
the selected DTMF code.
• The transceiver keeps transmission until the all pro-
grammed DTMF code is transmitted even [PTT] is re-
leased.
Example: Set the DTMF code “012345” stored in DTMF
memory channel “d1” for transmission.
DTMF code to be
transmitted.
DTMF code scrolls
during transmission.
About 1750 Hz tone
When “T-CALL” is selected in the DTMF MEMORY
screen, 1750 Hz tone can be transmitted.
• While holding down [PTT], push [SQL] to transmit 1750 Hz
tone is transmitted.
The tone is transmitted while holding down [SQL].
• The 1750 Hz tone can be heard from a speaker.
The DTMF code transmission can be made on the
QUICK Menu screen.
q Push [QUICK] , and then push D-pad() to se-
lect “DTMF TX,” and then push D-pad(Ent).
w Push D-pad() to select the desired DTMF mem-
ory channel, and then push D-pad(Ent).
To Next Page
