3
PANEL DESCRIPTION
3-2
q ANTENNA CONNECTOR (p. 1-2)
Connect the antenna here.
• An optional AD-92SMA adapter (p. 18-3) is available to
connect an antenna with a BNC connector.
w TX/RX INDICATOR [TX/RX] (pp. 5-9, 5-10)
Lights green while receiving a signal or when the
squelch is open; lights red while transmitting.
e PTT SWITCH [PTT] (p. 5-10)
Hold down to transmit, release to receive.
For ID-51E only
Push briefly, then hold down to transmit a 1750 Hz
tone burst.
r CD (RX CALLSIGN DISPLAY)/D-PAD (LEFT) KEY
[CD]/D-pad()
➥ While in the DV mode, hold down for
1 second to open the received calls record.
(p. 9-5)
➥ While in the DR mode, or with the Menu
screen or Quick Menu screen opens, push
to select an upper tier menu. (p. 16-2)
t SQUELCH KEY [SQL]
Hold down to temporarily open the squelch and ➥
monitor the operating frequency.
While holding down this key, rotate ➥ [DIAL] to ad-
just the squelch level. (p. 5-6)
y POWER KEY [ ]
Hold down for 1 second to turn the transceiver power
ON or OFF. (p. 5-2)
u MENU • LOCK KEY [MENU ]
➥ Push to enter or exit the Menu screen.
(p. 16-2)
➥ Hold down for 1 second to toggle the Key
Lock function ON or OFF. (p. 5-11)
i MODE • SCAN KEY [MODE•SCAN]
➥ Push to select the operating mode.
(p. 5-7)
• Selectable operating modes are AM, FM,
FM-N or DV.
➥ Hold down for 1 second to enter the scan
type selection mode. (pp. 13-5, 13-9)
• Push again to start the scan.
• Push
to stop the scan.
o MAIN • DUAL KEY [MAIN•DUAL]
➥ Push to toggle the main band between A
and B bands. (p. 5-3)
➥ Push and hold for 1 second to toggle the
dualwatch function ON or OFF. (p. 5-3)
!0 microSD CARD SLOT [micro SD]
Insert a microSD card of up to 32 GB SDHC.
!1 ENTER KEY [ENT]
While in the DR mode, or with the Menu screen or
Quick Menu screen open, push to open or set the
selected item or option. (p. 16-2)

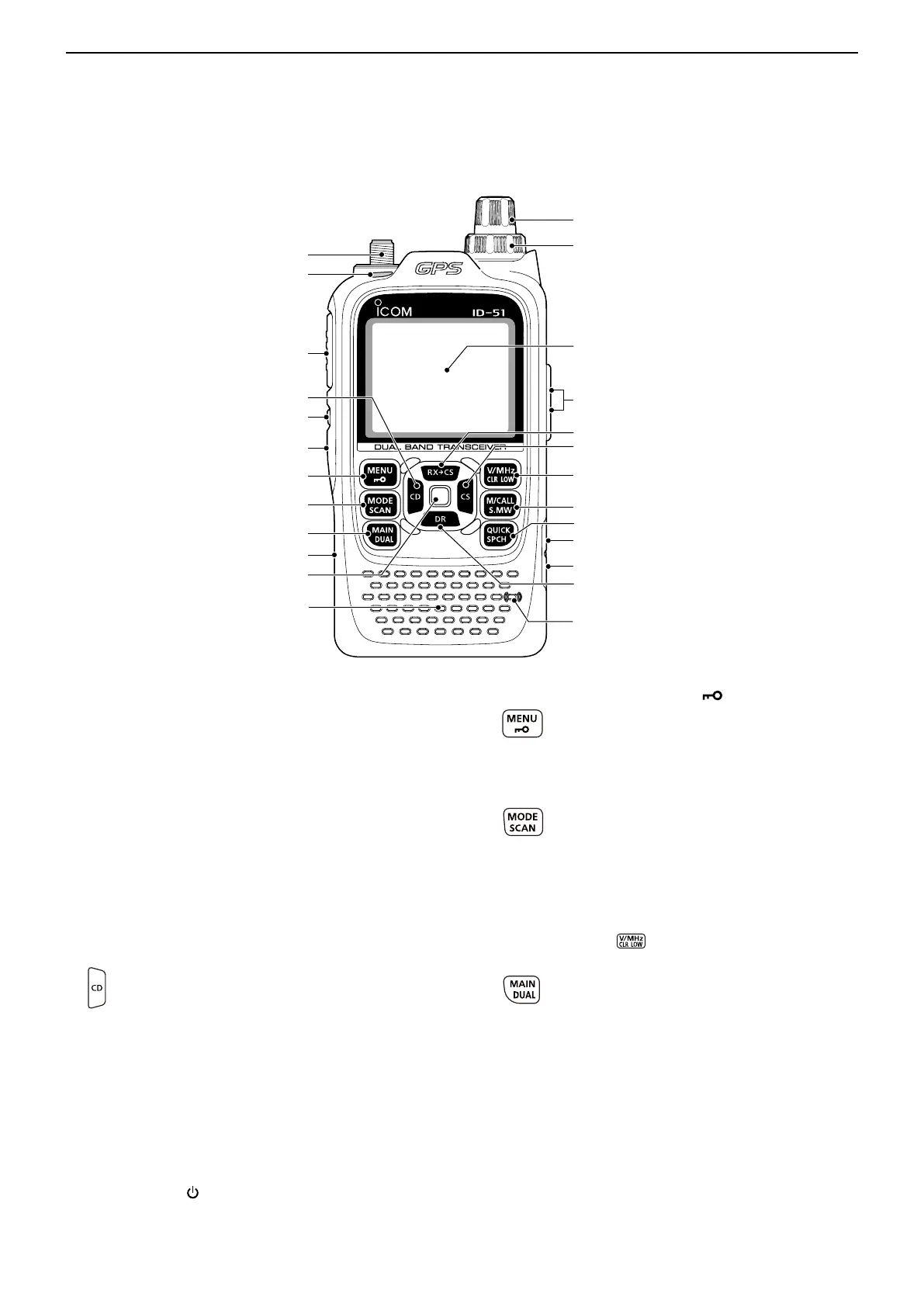

■ Front, top and side panels
q
w
r
u
i
o
!0
e
t
y
!1
!2
!3
!4
!5
!6
!7
!8
!9
Function
display (p. 3-5)
Internal
microphone
Speaker
@0
@1
@2
