5Functions set with parameters
About the communication setting (Ethernet) 5-491
5.15.2 Example of setting of parameter 1 (When the Support Software is used)
The setting example to use the Support Software is shown below.
Set the parameters for the robot controller, and the network for the personal computer OS being used.
Set the robot controller parameters as shown below.
If the default settings are to be used, the parameters do not need to be changed.

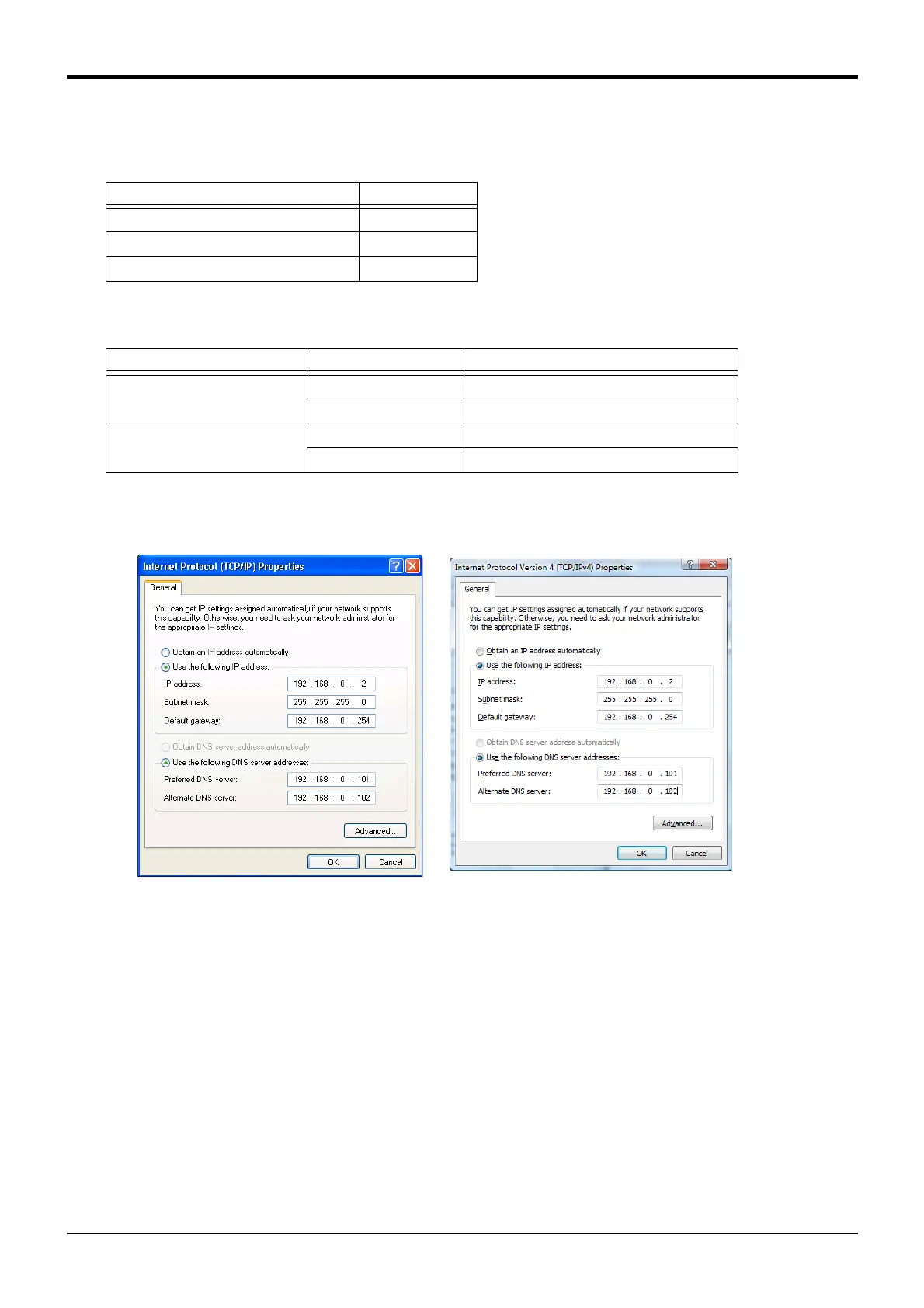

Next, set the personal computer IP address to 192.168.0.2. Set this value on the Network Properties
screen.
Windows XP (lower left screen), Windows Vista (lower right screen)
The personal computer IP address is set with the Windows TCP/IP Property Network setting (property in
network computer). Because the set-up screen differs with versions of Windows, refer to the manuals
enclosed with Windows, etc., for details on setting this address.
Refer to the instruction manuals enclosed with the personal computer support software for details on setting
and using the personal computer support software.
Item Setting value
IP address of robot controller 192.168.0.20
IP address of personal computer 192.168.0.2
Port No. of robot controller 10001 10001
Parameter name to be changed Before/after change Parameter value
NETIP Before 192.168.0.20
After 192.168.0.20 (With the default value.)
NETPORT Before 10001
After 10001 (With the default value.)
