3Explanation of operation methods
Automatic operation 3-59
3.8.6 Resetting the program
The program's stopped state is canceled, and the execution line is returned to the head.

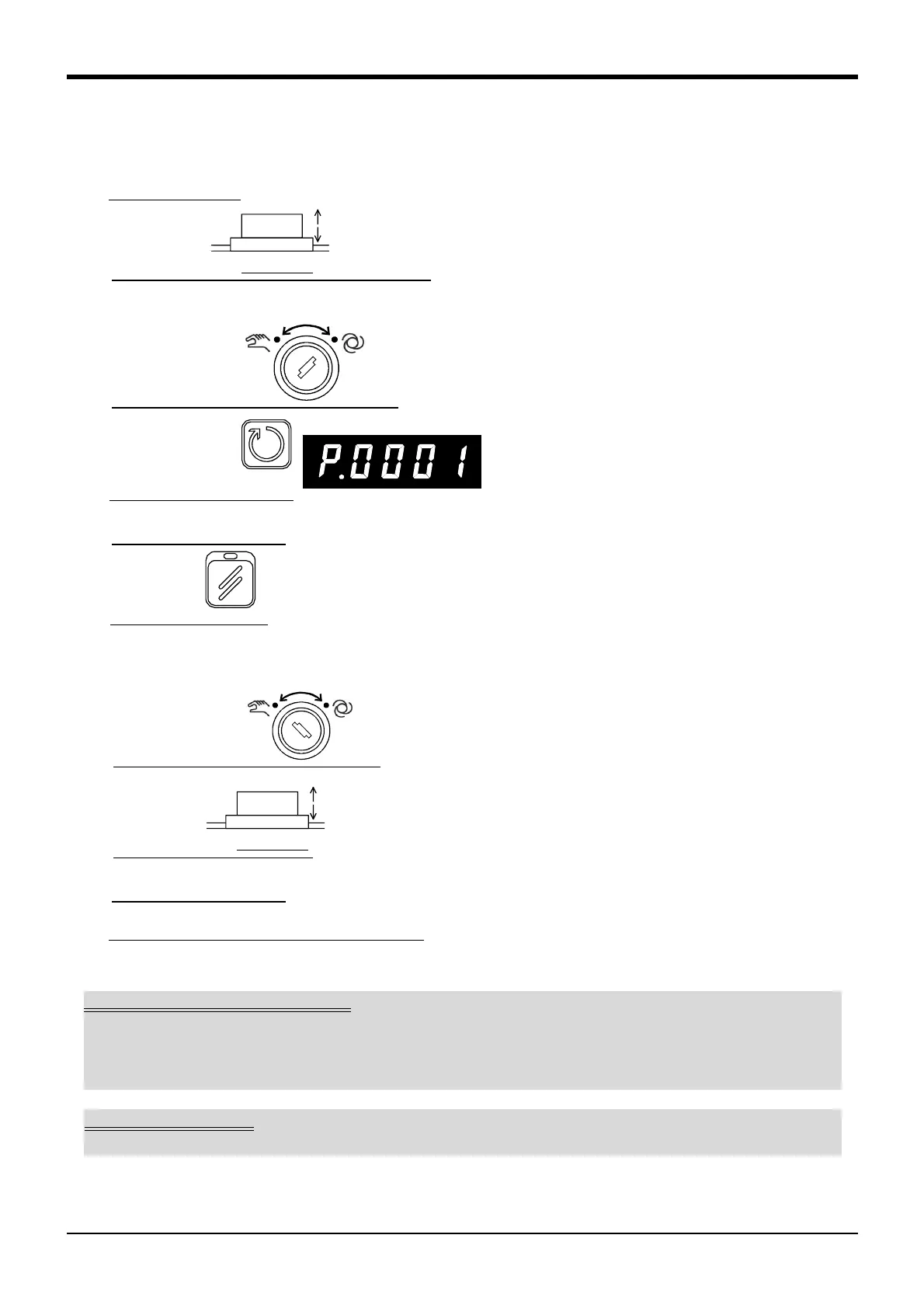

(1) Operating with the controller
1) Set the T/B [ENABLE] switch to "DISABLE".
2) Set the controller mode to "AUTOMATIC".
3) Press the controller [CHG DISP] switch, and
display the program No.
4) Press the controller [RESET] switch.
The STOP lamp will turn OFF, and the pro-
gram's stopped state will be canceled.
(2) Operating with the T/B
1) Set the controller mode to "MANUAL".
2) Set the T/B [ENABLE] switch to "ENABLE".
3) Press the [EXE] key while holding down the
[RESET] key. The execution line will return to
the head, and the program will be reset.
Reset
T/B disable
Execute of program reset
Display the program No.
Down：
ENABLE
*Lighting
Up ：
DISABLE
Rear of T/B
Program reset [RESET] + [EXE]
Execute of program reset
T/B enable
Controller disable
Down：
ENABLE
*Lighting
Up ：
DISABLE
Rear of T/B
Valid only while program is stopped
The program cannot be reset while the program is running. Always carry out this step while the program is
stopped.
When resetting the program from the controller operation panel, display the "program No." on the STA-
TUS NUMBER display, and then reset.
STOP lamp turns OFF
The STOP lamp will turn OFF when the program is reset.
