5Functions set with parameters
About the communication setting (Ethernet) 5-495
5.15.6 Connection confirmation
Before use, confirm the following items again.
5.15.7 Checking the connection with the Windows ping command
The method for checking the connection with the Windows ping command is shown below.

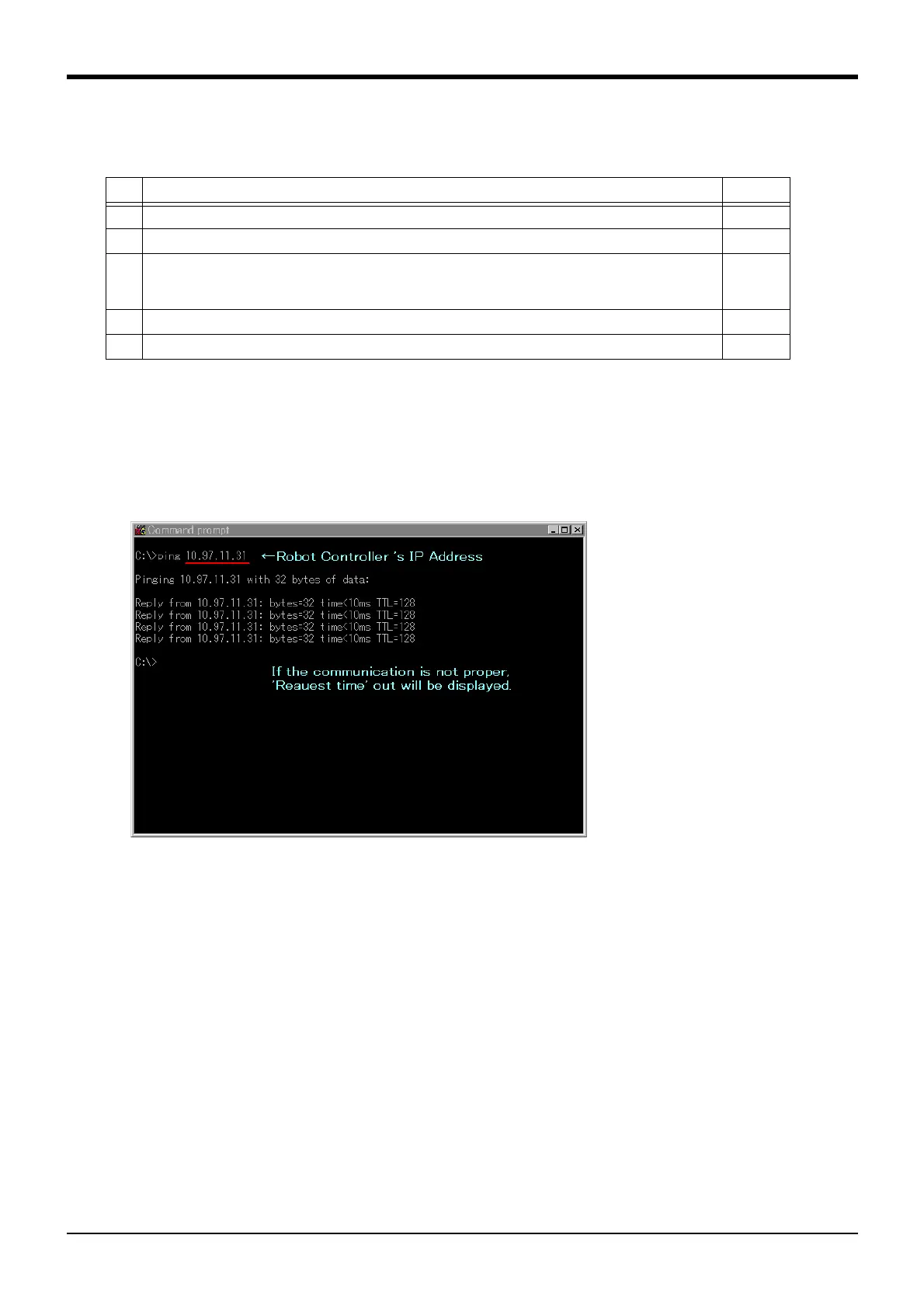

Start up the " MS-DOS Prompt " from the Windows " Start " - " Programs " menu, and designate the robot
controller IP address as shown below.
If the communication is normal, " Reply from ... " will appear as shown below.
If the communication is abnormal, " Request time out " will appear.
No. Confirmation item Check
1 Is the teaching pendant securely fixed?
2 Is the Ethernet cable properly connected between the controller and personal computer?
3 Is any proper Ethernet cable used?
(This cross cable is used to connect the personal computer and controller one-on-one. When using a
hub with LAN, use a straight cable.)
4 Is the parameter of the controller properly set? (Refer to 2.3 in this manual.)
5 Is the power supply of the controller turned off once after the parameter is set?
To Next Page
