3-52 Automatic operation
3Explanation of operation methods
3.8 Automatic operation
3.8.1 Setting the operation speed
The operation speed is set with the controller or T/B.
The actual speed during automatic operation will be the operation speed = (controller (T/B) setting value) x
(program setting value).
(1) Operating with the controller
1) Press the controller [CHNG DISP] switch
twice, and display the "OVERRIDE" on the
STATUS NUMBER display panel.
2) Each time the [UP] key is pressed, the
override will increase in the order of (10 -
20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100%).
The speed will decrease in reverse each
time the [DOWN] key is pressed.
(2) Operating with the T/B
1) Each time the [OVRD↑] keys are pressed, the override will increase in the order of (LOW - HIGH - 3 -
5 - 10 - 30 - 50 - 70 -100%). The speed will decrease in reverse each time the [OVRD↓] keys are
pressed.
3.8.2 Selecting the program No.
1) Set the T/B [ENABLE] switch to "DIS-
ABLE".
2) Set the controller mode to "AUTOMATIC".
3) Press the [CHNG DISP] switch and dis-
play "PROGRAM NO." on the STATUS
NUMBER display.
4) When the [UP] switch is pressed, the reg-
istered program Nos. will scroll up, and
then the [DOWN] switch is pressed, the
program Nos. will scroll down.
Display the program No. to be used for
automatic operation.
* They are not displayed if a program
name consisting of five or more charac-
ters is specified. If these are selected
from an external device, "P - - - - " is dis-
played.

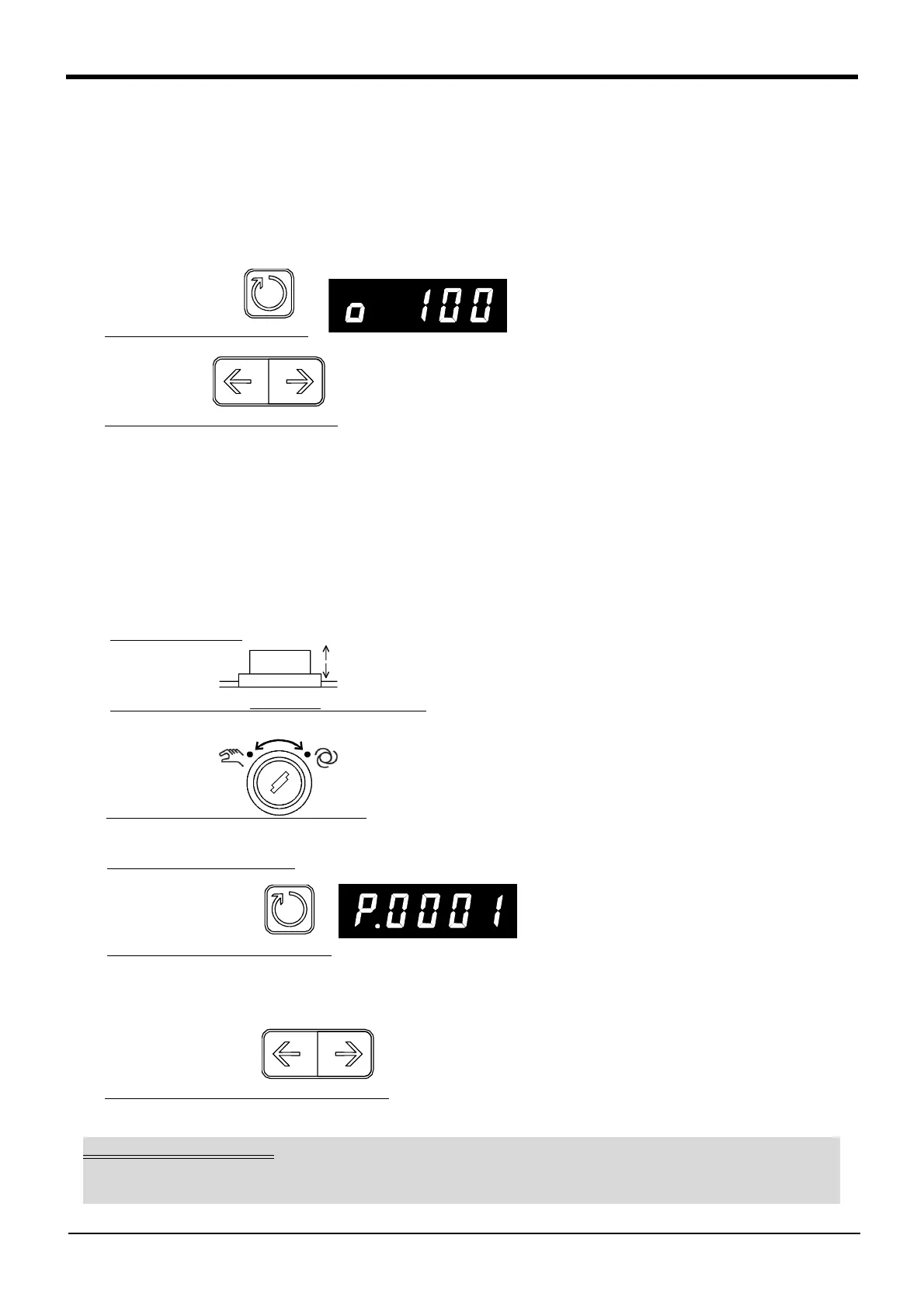

Display the override
Set the override
Display the program number
Select the program number
Prepare the control
Select the program number
Disable the T/B
Enable the R/C
Down：
ENABLE
*Lighting
Up ：
DISABLE
Rear of T/B
Program selection by T/B
Selecting the program by the T/B is possible, when the software version of T/B is 1.3 or later
Refer to the Page 67, "(6) Select the program" for the details of the operation method.
