Appendix-686 Ex-T control
7Appendix
(5) WORK jog operation of the RH 4-axis type
When the XYZ keys are used, the operation is the same in the WORK jog and the Ex-T jog modes.
• When the[+X (J1)] keys are pressed, the robot will move along the X axis (Xw) plus direction on the work
coordinates system.
When the[-X (J1)] keys are pressed, Move along the minus direction.
• When the[+Y (J2)] keys are pressed, the robot will move along the Y axis (Yw) plus direction on the work
coordinates system.
When the[-Y (J2)] keys are pressed, Move along the minus direction.
• When the[+Z (J3)] keys are pressed, the robot will move along the Z axis (Zw) plus direction on the work
coordinates system.
When the[-Z (J3)] keys are pressed, Move along the minus direction.
＋X
－X
＋Y
－Y
－Z
＋Z
+Xw
+Yw
+Zw
-Zw
-Xw
-Yw
ツ
ー
ル
長

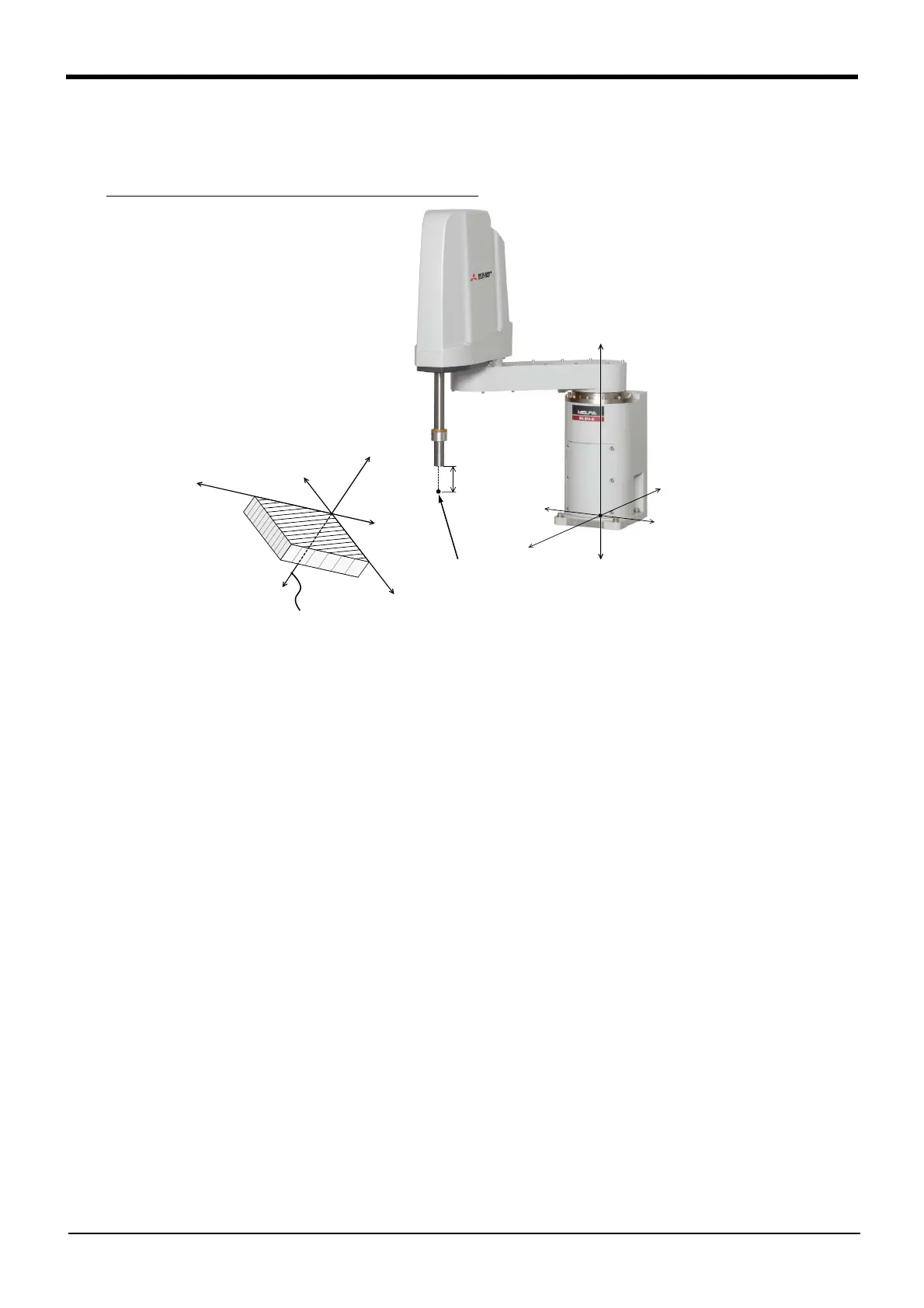

The jog movement based on work coordinates system
Work coordinates system
Control point
Tool length
* The direction of the end axis will not change. Move the
control point with a straight line in accordance with the
work coordinates system
