Mitsubishi MELSEC Q Series User Manual

6 - 19
6.6 I/O Assignment by C Controller Setting Utility
6.6.2 Details of I/O assignment by C Controller setting utility
6
I/O NUMBER ASSIGNMENT
6.6.2 Details of I/O assignment by C Controller setting utility
In I/O assignment, the "Type (module type)", "Points (I/O points)" and "Start XY" (starting I/
O number) can be set for each slot of the base units.
For example, to change the number of occupied I/O points of a designated slot, only the
number of occupied I/O points can be designated.
For the items containing no setting, mounting status on the base unit is applied.
(1) I/O assignment
Make I/O assignment on the <<I/O assignment setting>> tab of the C Controller
setting utility.
(a) Slot
The slot No. and what number of the slot on what number of the stage are
displayed for each slot.
When the base unit is set in Auto mode, "*" indicates the base unit stage number
and the slot number counted from Slot 0 of the main base unit is displayed.

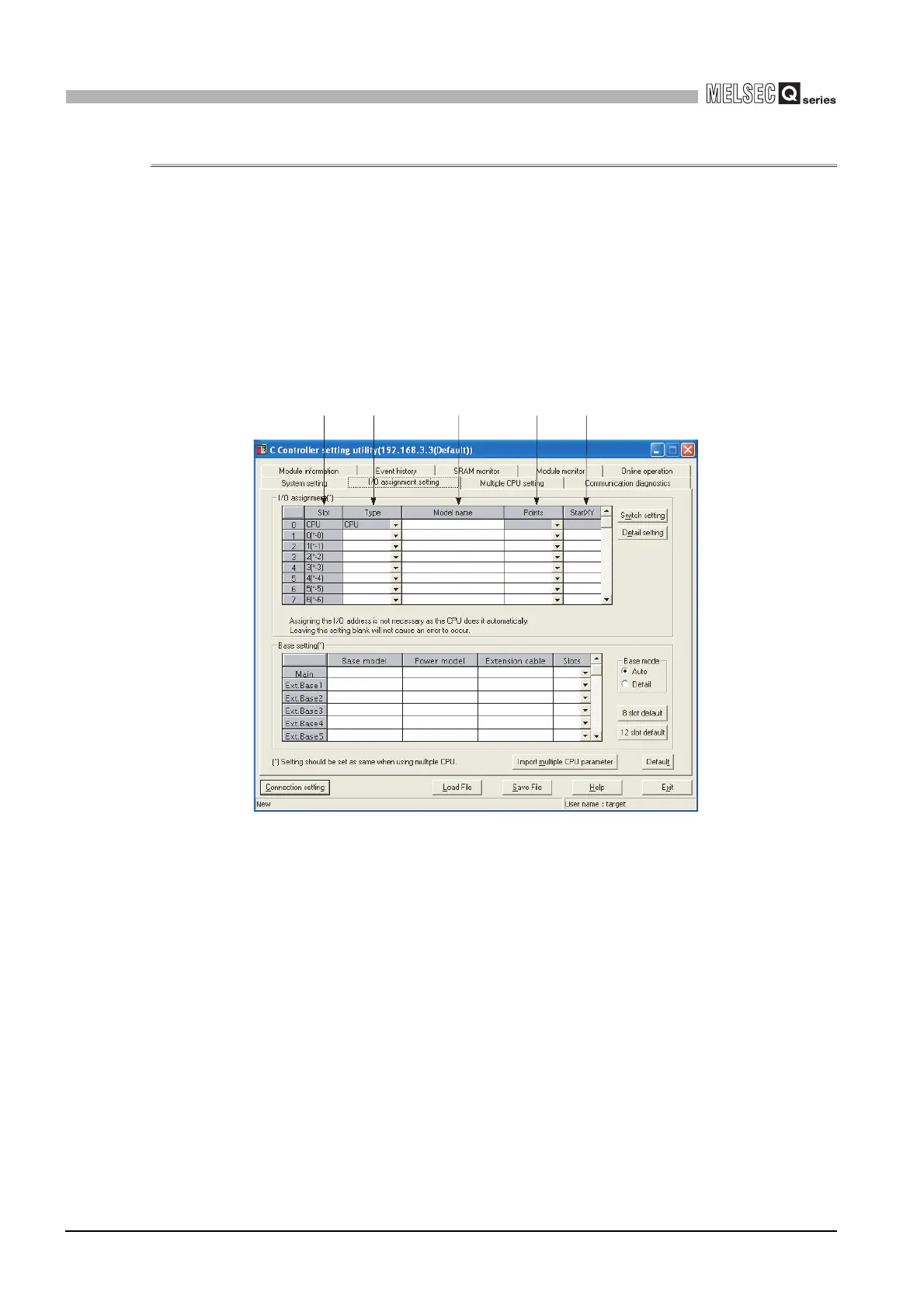

Figure 6.16 I/O assignment setting
(a) (b) (c) (d) (e)

Mitsubishi MELSEC Q Series Specifications

General

Series	MELSEC Q Series
Type	Modular PLC
Programming Software	GX Works2, GX Works3
Category	Programmable Logic Controller (PLC)
I/O Modules	Digital I/O, Analog I/O, High-Speed Counter, Positioning
Communication	Ethernet, CC-Link
Programming Languages	Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart, Instruction List
Memory	Flash Memory
I/O Points	Up to 4096 points (expandable with additional modules)
Power Supply	AC or DC power supply options available, depending on the base unit and modules.
Mounting	DIN rail mounting
Operating Temperature	0°C to 55°C
Storage Temperature	-25°C to 75°C
Humidity	5% to 95% (non-condensing)
Vibration Resistance	10 to 57 Hz, 0.075mm amplitude
Weight	Varies depending on the module, from a few grams to several kilograms.
Shock Resistance	147 m/s² (3 times each in X, Y, Z directions)
