9.4.6 Operating Parameter setting screen
This screen allows the parameter setting of the MELSECNET/H module.
POINT
1. If any entered parameter is erroneous when attempting to switch the screen
to another, a warning message appears and the screen will not be switched.
Switch the tab after correcting the erroneous parameter.
2. To update the settings into the C Controller module, write the parameters from
the <<Online operation>> tab and power off and then on or reset the C
Controller system.
(1) Parameter setting screen
* 1 When 0 is set to the link device refresh cycle, refresh is not performed with all refresh parameter
settings deleted, and the button does not function.
(To next page)

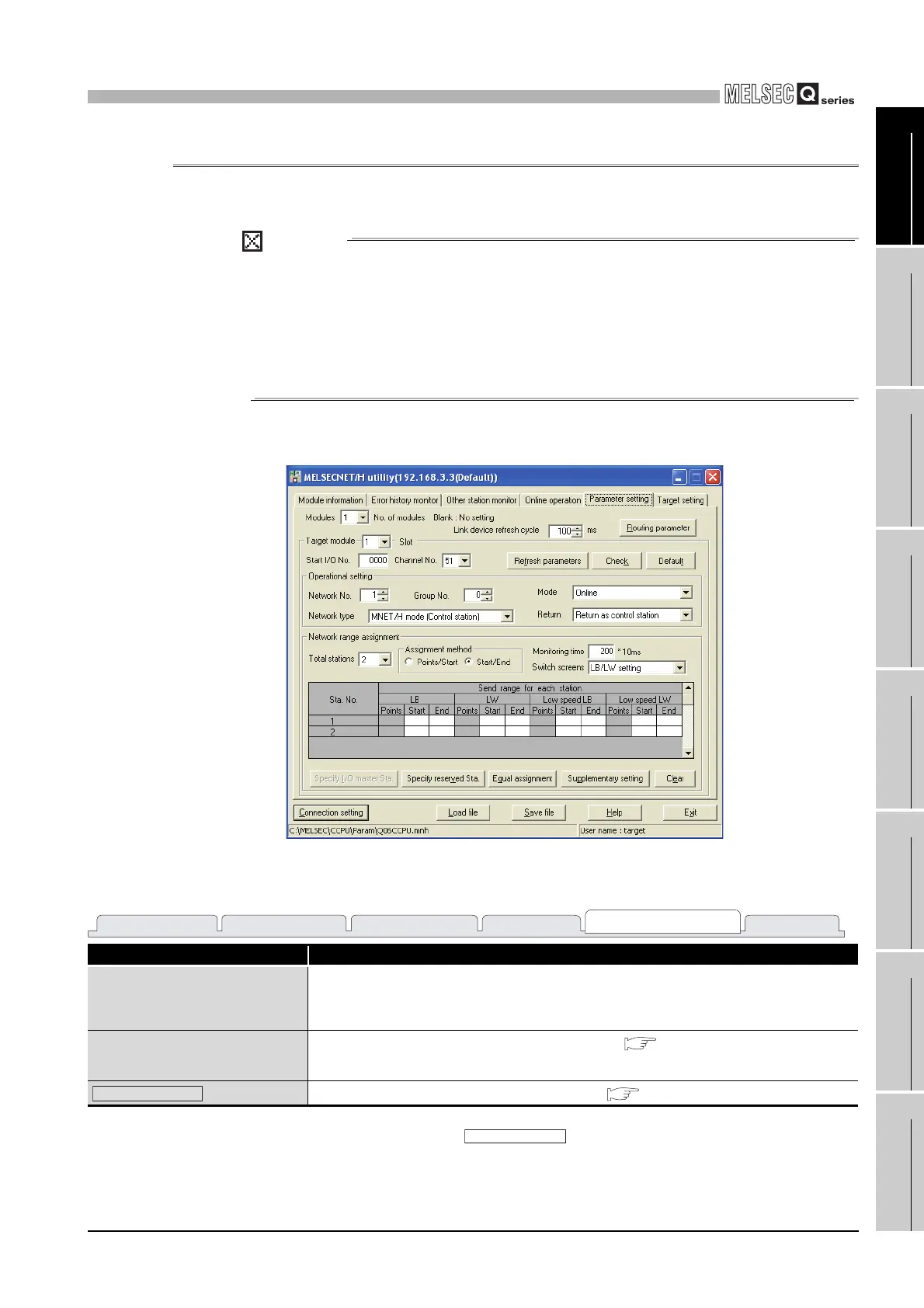

Figure 9.90 Parameter setting screen
Table9.77 Explanation of Parameter setting screen
Item Description
Modules
Set the number of MELSECNET/H modules to be controlled by the C Controller module.
Selecting "(Blank)" is recognized as no setting (Setting clear).
(Initial value: "(Blank)", Setting range: 1 to 4, "(Blank)")
Link device refresh cycle
Set the refresh cycle of the link device. (Unit: ms) ( Section 4.4.4)
(Initial value: 100, Setting range: 0
*1
, 10 to 1000)
button
Displays the Routing parameter setting screen.( This section (2))
Module information Target settingError history monitor Other station monitor Online operation
Parameter setting
Routing parameter
Refresh parameters
To Next Page
