9.5 Device Monitor Utility
9.5.8 Turning on/off bit device
9
UTILITY OPERATION
(1) Menu item to be selected
Select [Device Write] [Bit device setting (resetting)] from the menu bar.
(2) Dialog box

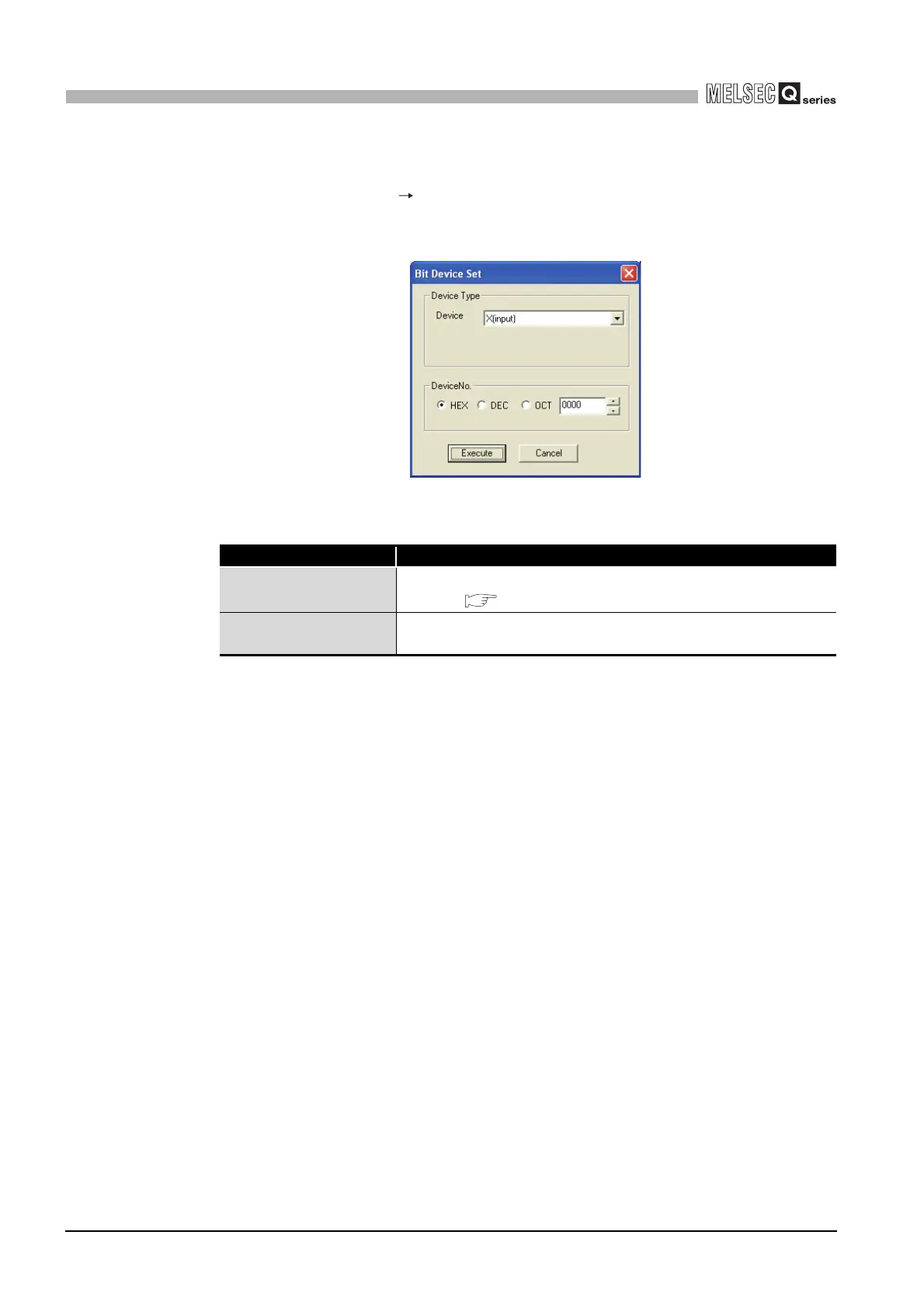

Figure 9.108 Bit Device Setting dialog box
Table9.98 Explanation of Bit Device Setting dialog box
Item Description
Device Type
Set the type, block No., and network No. of the device to be turned
ON/OFF. ( Section 10.3.11)
Device No.
Set the bit device No. to be turned ON/OFF.
(HEX: Hexadecimal, DEC: Decimal, OCT: Octal)
