Cover Interposer Tray (B704)
D062/D063/D065/D066 2-72 SM
2. Remove all tape and retainers from the cover interposer tray [A].
3. Remove the tape and cardboard [B] from the ground connector.
Preparing the Finisher (D373/D374/D460)

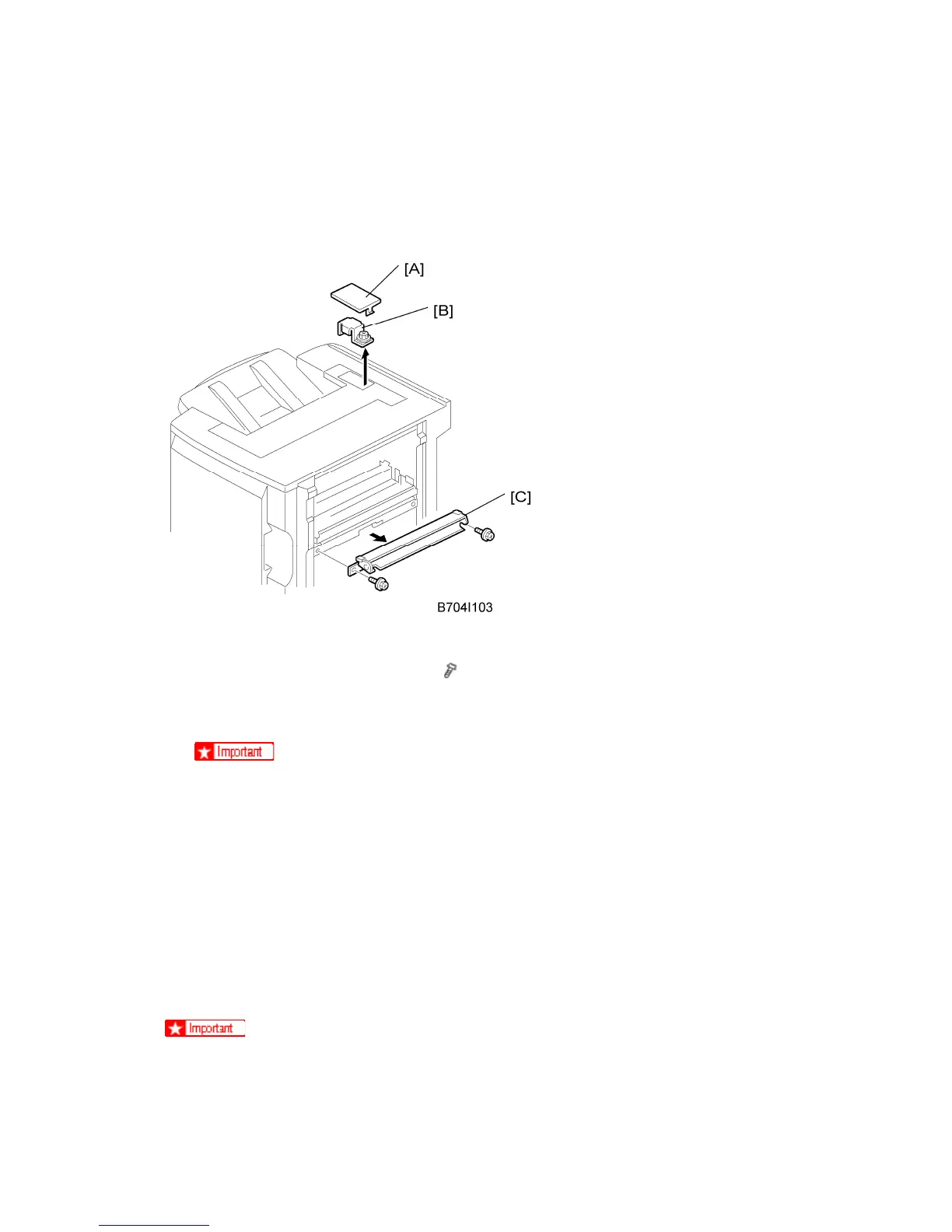

1. Remove the cover [A] of the relay connector.
2. Loosen the screw of the bracket [B] (
x 1) then remove the bracket.
3. Remove the guide plate [C]. (This guide plate will be attached to the cover interposer;
do not discard it.)
If you are installing the cover interposer tray with a previously installed finisher
D373/D374/D460, remove the sponge strip from the finisher and save it for
re-attachment to the interposer tray.
4. Either:
If you are installing the D373/D374, attach the extensions to the finisher without
modification. Go to "Attaching the Extensions for the D373/D374".
If you are installing the D460, modify the extensions and attach them to the finisher.
Go to "Attaching the Extensions for the D460".
Attaching the Extensions for the D460
The procedures in this section are for installation of the cover interposer with the
D460 only.
