Scanner
D062/D063/D065/D066 4-18 SM

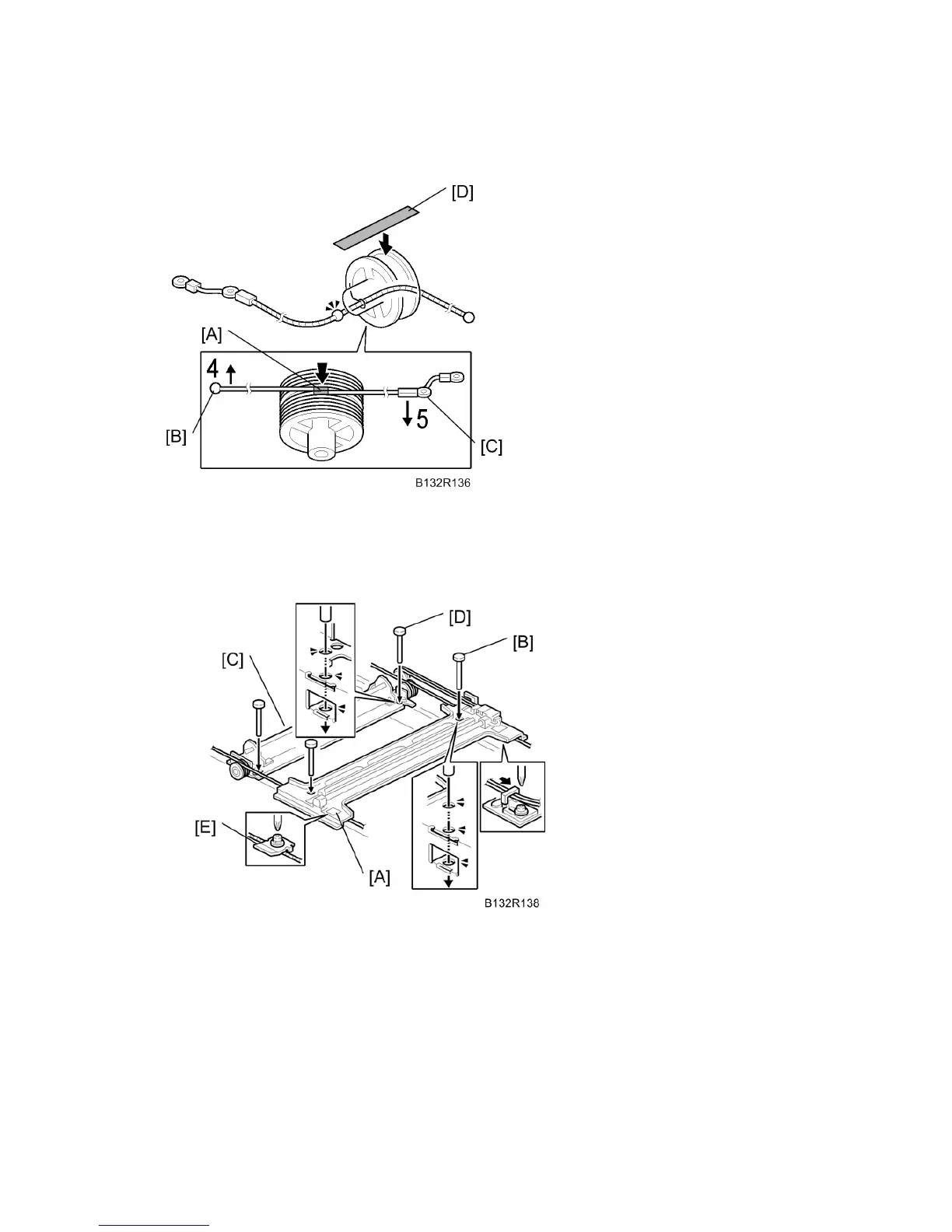

Scanner Wire Reinstallation and Scanner Position Adjustment
1. Place the beads [A] on the middle of the wire in the openings in the pulley.
2. Wind the ball end of the wire [B] 4 times.
3. Wind the other end of the wire [C] 5 times.
4. Attach tape [D] across the pulley to temporarily hold the wires in place.
5. Position the 1st scanner [A] so that the holes are aligned, and insert the positioning
pins [B] (x4).
6. Position the 2nd scanner [C] so that its holes are aligned, and insert the positioning
pins [D].
7. Attach the lock bracket [E] to fasten the wire to the 1st scanner.
8. Tighten the screw of the tension bracket.
9. Attach the pulley and tighten its lock screw.
