Overview
D062/D063/D065/D066 1-10 SM

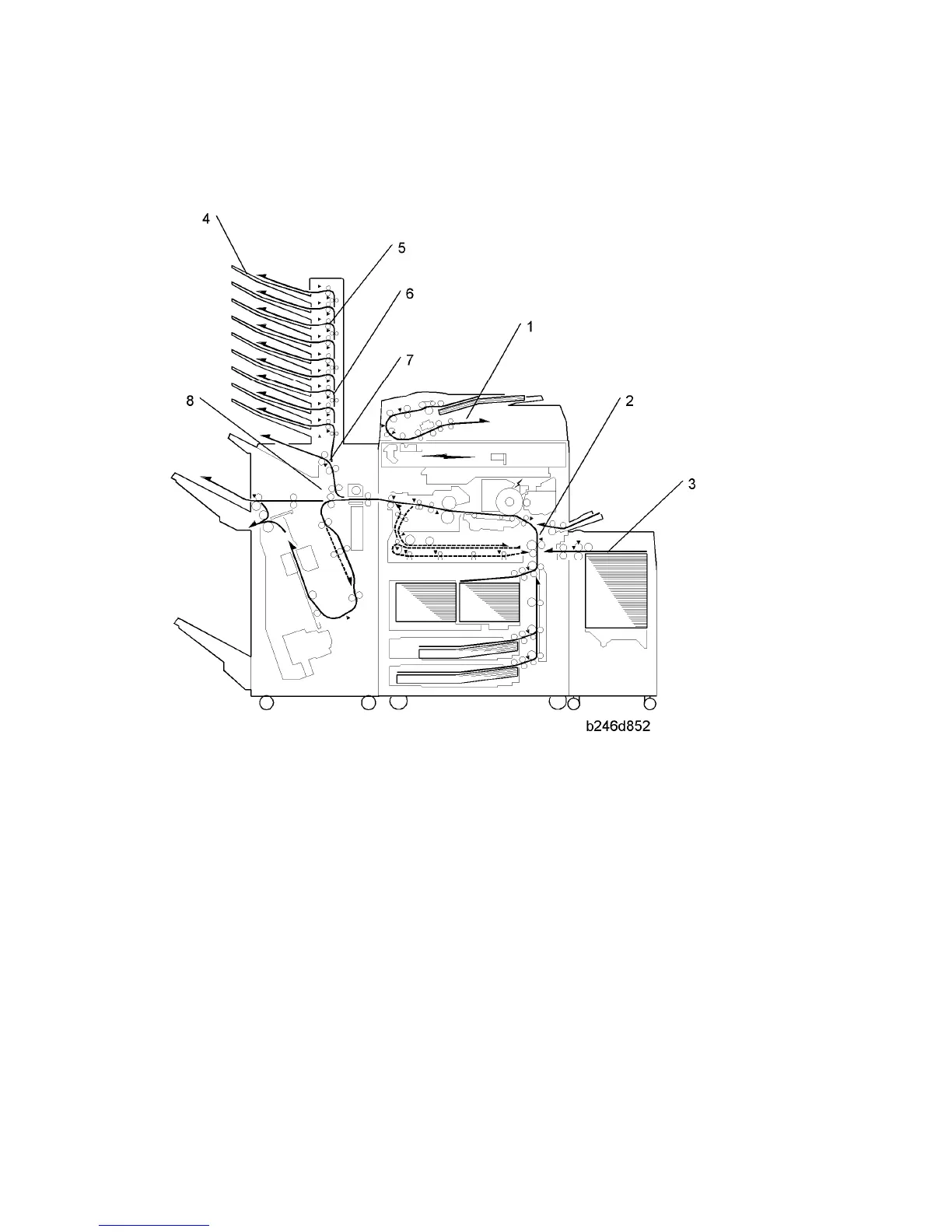

1.4.3 PAPER PATH (WITH 9-BIN MAILBOX)
1. Original Paper Path
2. Vertical Transport Path
3. LCT Feed
4. Selected Trays
5. Turn Gates
6. Mailbox Paper Path
7. Junction Gate (paper goes either up to the mailbox or out to the finisher’s proof tray)
8. Junction Gates (two junction gates control the paper path inside the finisher)
