Ricoh Aficio MP 8001 Service Manual

Fusing Unit
D062/D063/D065/D066 4-66 SM

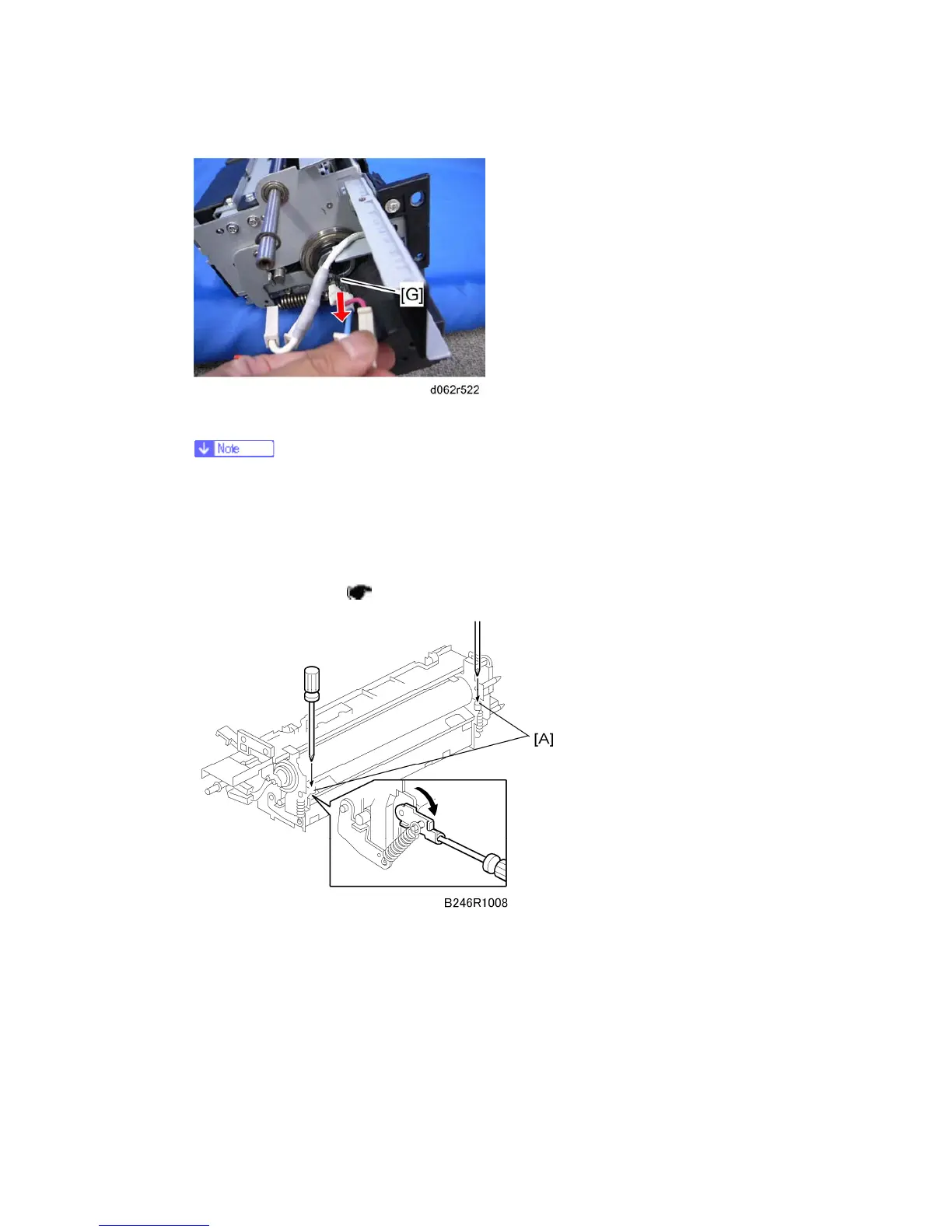

7. Fusing lamps [G] (x 2)
 Be careful when you move the fusing lamps. Do not break them. Do not touch
them with bare hands.
Hot Roller and Pressure Roller
Use this procedure when you want to remove both rollers.
1. Remove the web unit (
p.4-59)
2. Pressure arm [A]
 Insert the tips of two screwdrivers and press down to release.

Ricoh Aficio MP 8001 Specifications

General

Brand	Ricoh
Model	Aficio MP 8001
Category	All in One Printer
Language	English
