ADF
D062/D063/D065/D066 4-118 SM
4.13.4 SEPARATION ROLLER
1. Open the feed cover.
2. Remove the feed unit (
p.4-116)

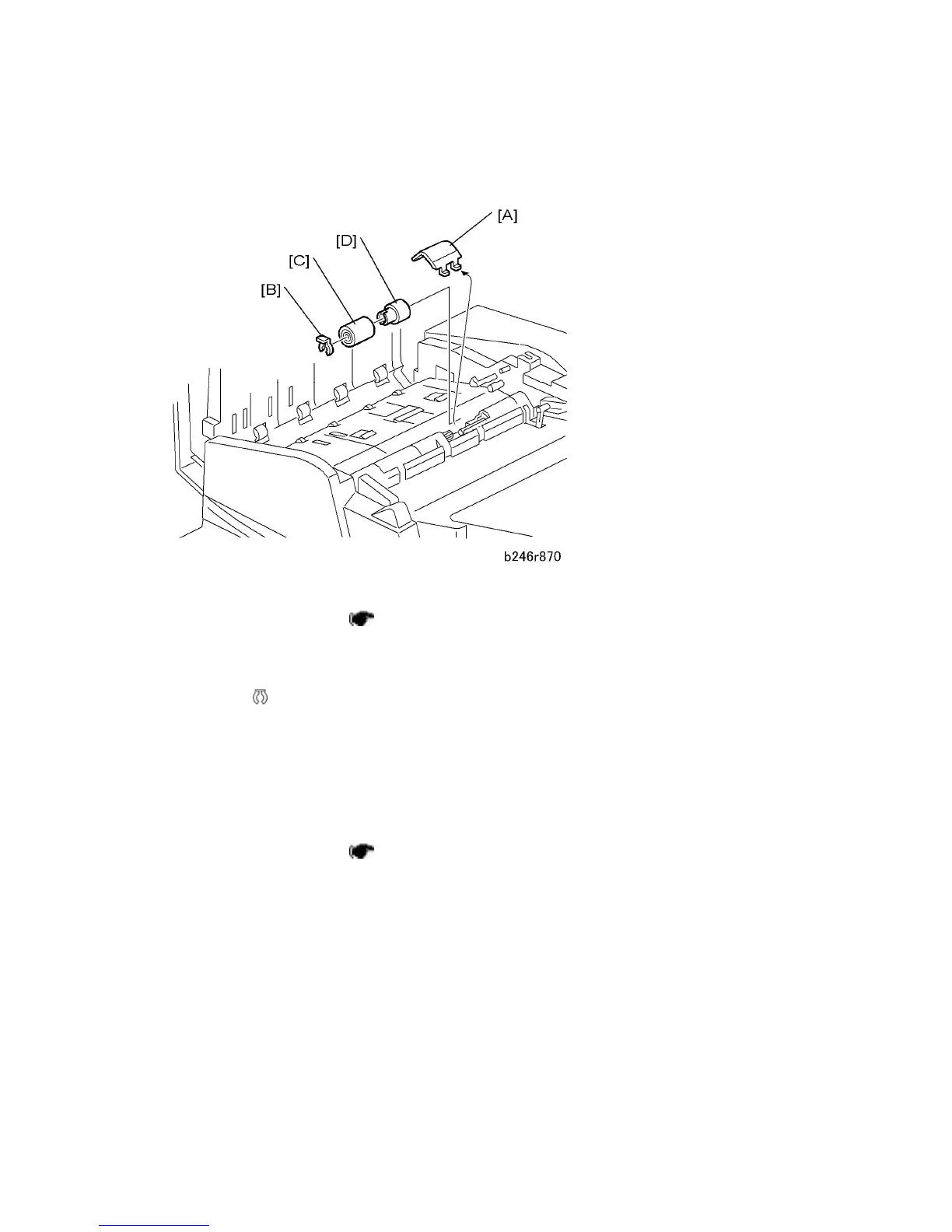

3. Separation roller cover [A]
Use the tip of a screwdriver to push up the cover.
4. Clip [B] (
x 1)
5. Separation roller [C]
6. Torque limiter clutch [D]
4.13.5 REGISTRATION SENSOR
1. Open the feed cover.
2. Remove the feed unit (
p.4-116)
