Transfer Belt Unit
SM 4-55 D062/D063/D065/D066
Replacement
and
Adjustment

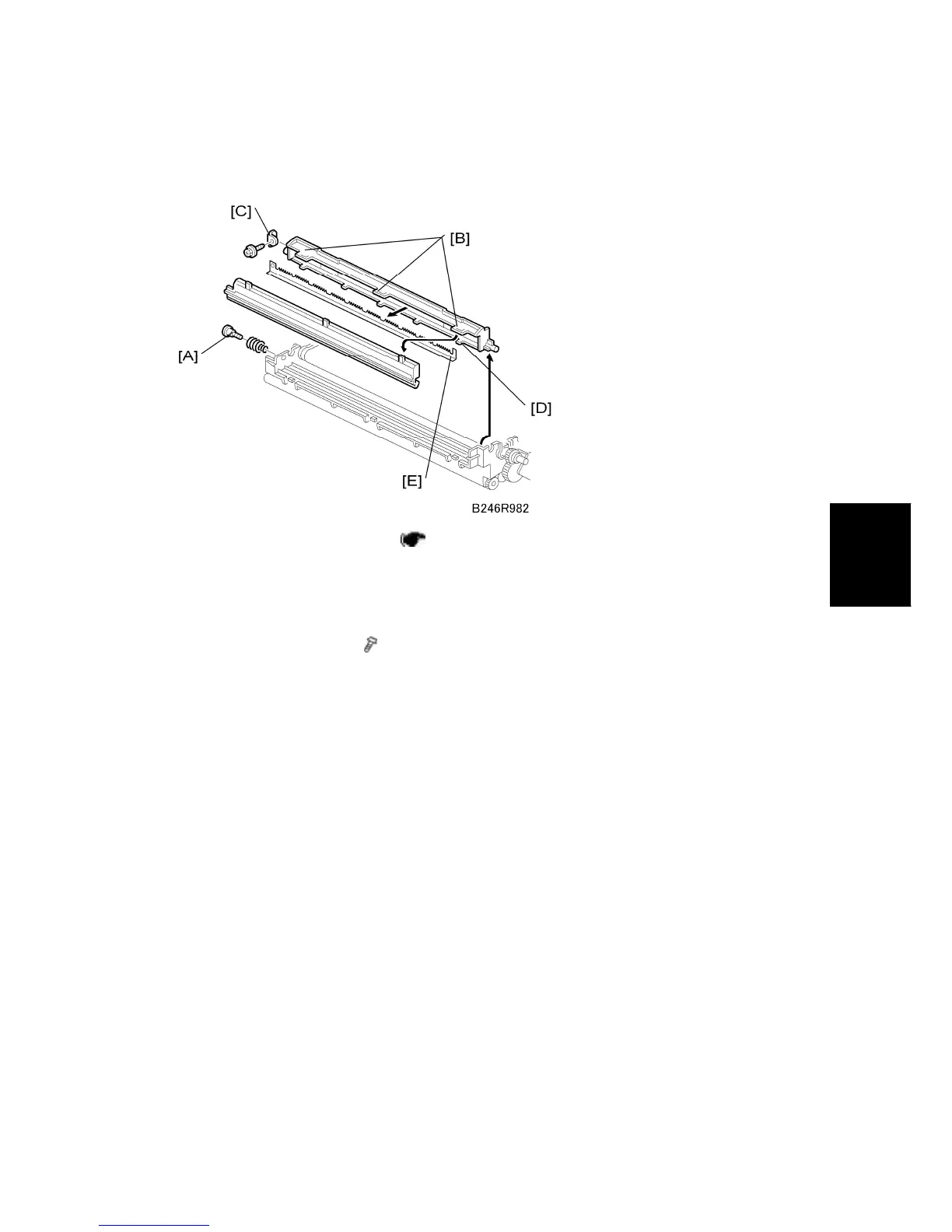

4.8.4 DISCHARGE PLATE
1. Remove the transfer belt unit (
p.4-51)
2. Remove the shoulder screw and spring [A].
3. Rotate the discharge unit up, then lift it straight up to remove it.
4. Disconnect the three large tabs [B].
5. Remove the bracket [C] (
x 1).
6. Disconnect the 6 small seal case tabs [D].
7. Remove the discharge plate [E].
Reinstallation
1. Set the discharge plate and make sure that it is perfectly flat before re-connecting the
tabs.
2. Before re-attaching the bracket [C], make sure that all the tabs are connected.
To Next Page
