ADF
D062/D063/D065/D066 4-124 SM
10. Pick-up roller HP sensor [B] ( x 1)
11. Bottom plate position sensor [C] (
x 1)

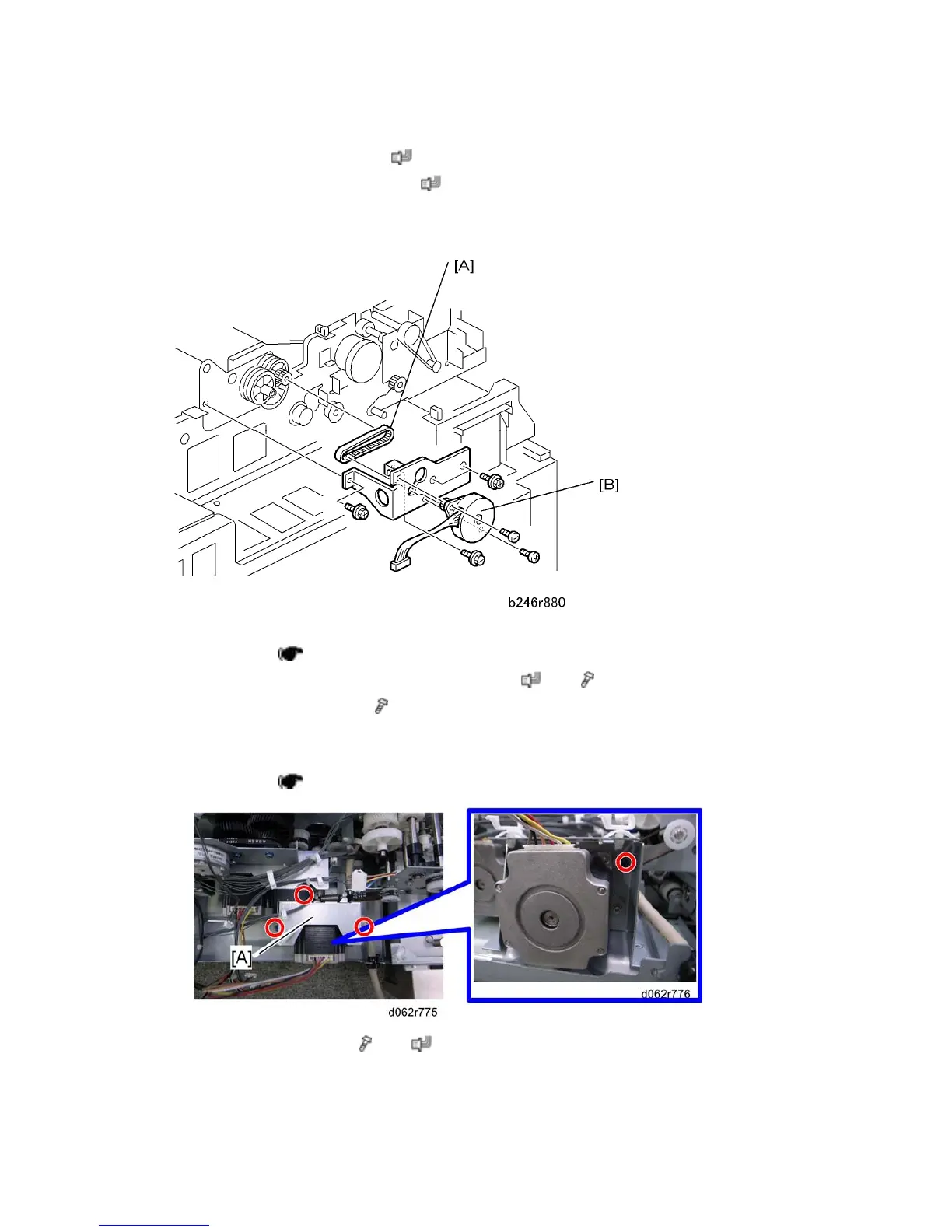

4.13.11 BOTTOM PLATE LIFT MOTOR
1. Open the feed cover.
2. Rear cover (
p.4-8)
3. Bottom plate lift motor bracket [A] (harness x 1,
x 1, x 3, timing belt x 1)
4. Bottom plate lift motor [B] (
x 2)
4.13.12 FEED MOTOR
1. Rear cover ( p.4-8)
2. Feed motor bracket [A] (
x 4, x 1, belt x 1)
