Ricoh Aficio MP 8001 Service Manual

Multi Folding Unit (D454)
SM 2-37 D062/D063/D065/D066
Installation

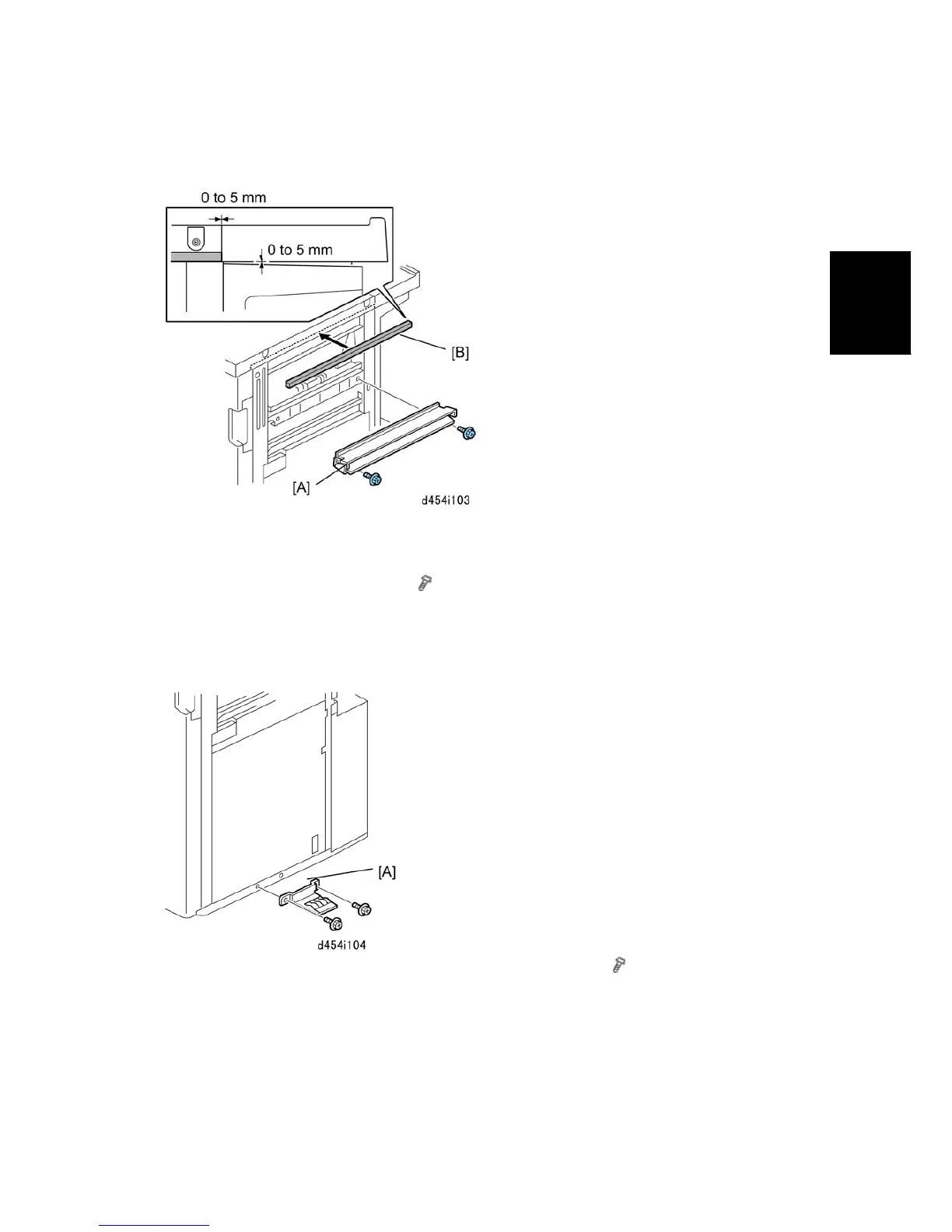

Paper Guide, Sponge Strip
1. Select the short paper guide for this installation.
 The long paper guide is not used.
2. Attach the short paper guide [A] (
x2 M3x6).
3. Peel the tape from the sponge strip [B] and attach the strip to the top right edge of the
unit.
Ground Plate
1. Attach the ground plate [A] to the lower right edge of the unit ( x2 M3x6).
