Punch Unit B702 (For B804/B805)
SM 67 D373/D374
Finisher
D373/D374

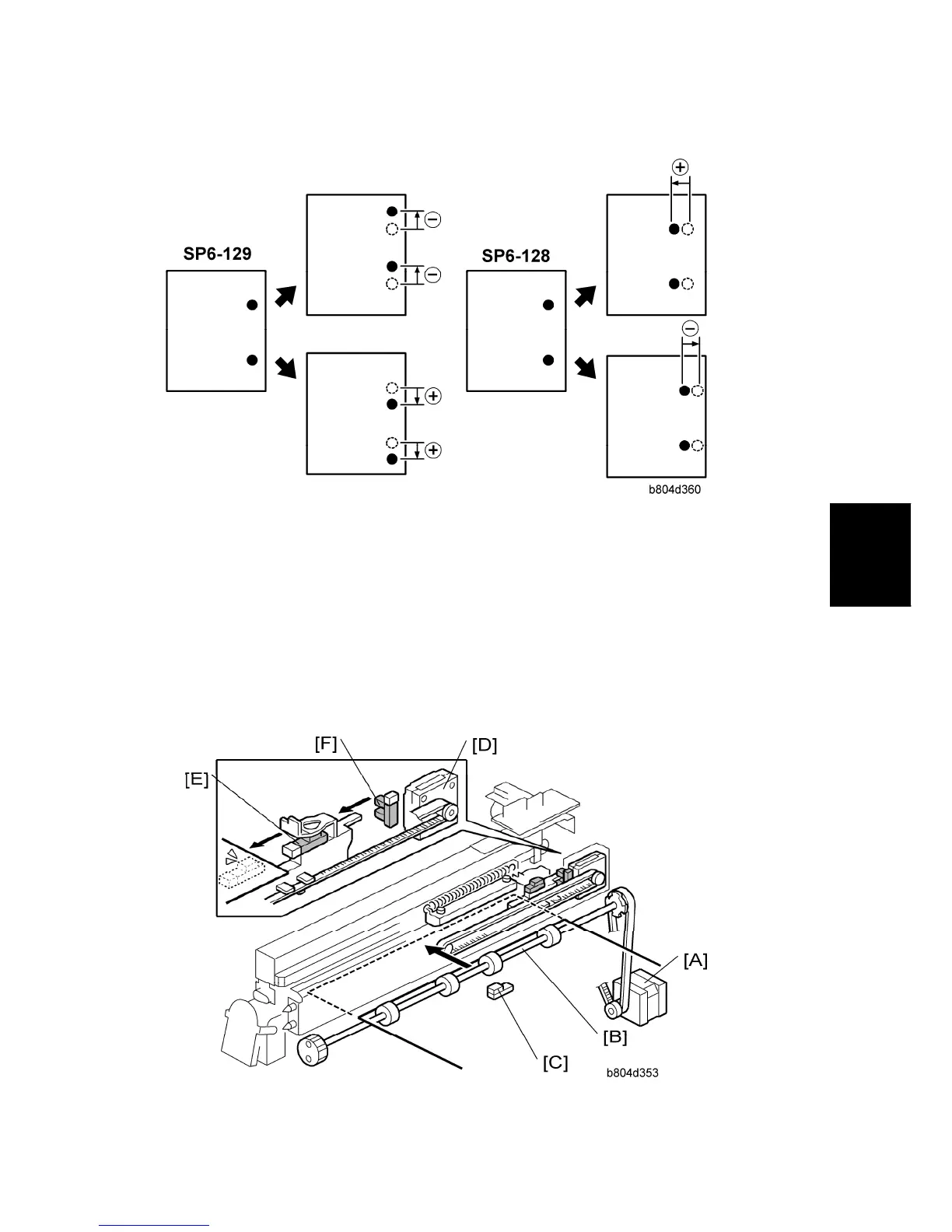

These SP codes adjust the punch hole alignment:
SP6-128 Adjusts the punch positions in the direction of paper feed.
SP6-129 Adjusts the punch position perpendicular to the direction of feed.
For more, see Section "Service Tables".
2.8.2 PUNCH MECHANISMS
Paper Position Detection
