KEY COUNTER INTERFACE UNIT TYPE A (B870)
SM 2-95 D062/D063/D065/D066
Installation
2.17 KEY COUNTER INTERFACE UNIT TYPE A (B870)
2.17.1 INSTALLATION

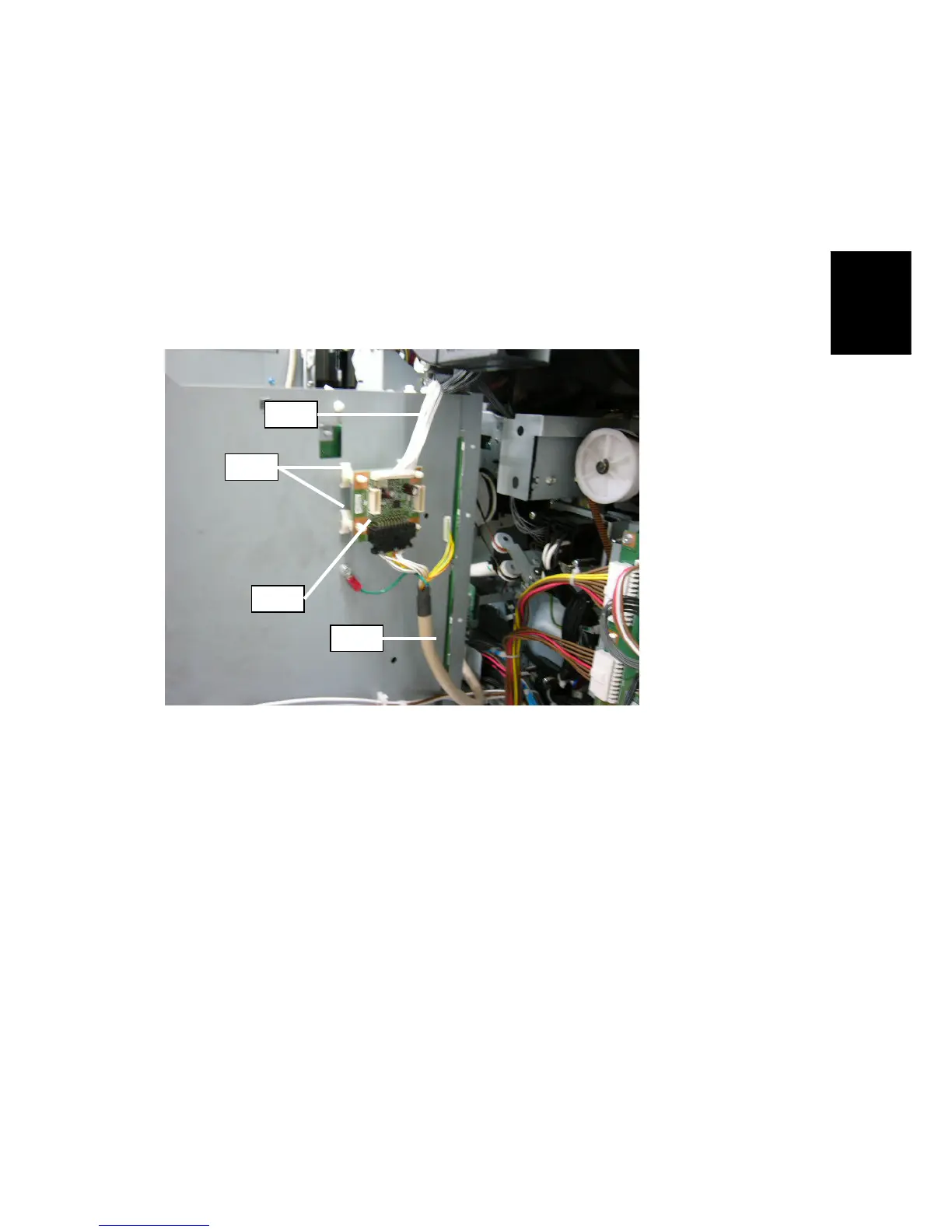

1. Attach the connection board [A] (rocking support [B] x 4).
2. Connect the harness [C] to CN003.
3. Connect the harness [D] to CN004.
4. Connect the harness [C] to CN218 on the BCU.
[A]
[B]
[D]
[C]
Rev. 08/03/2009
⇒
